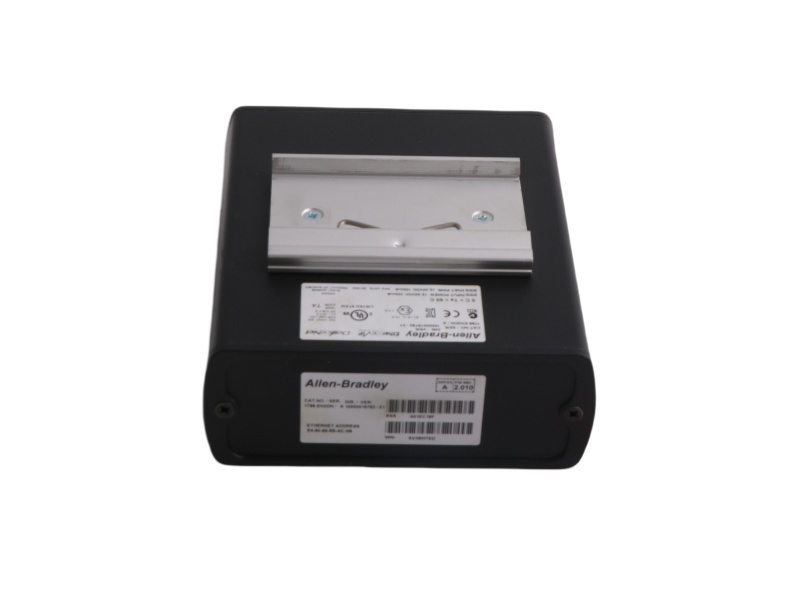

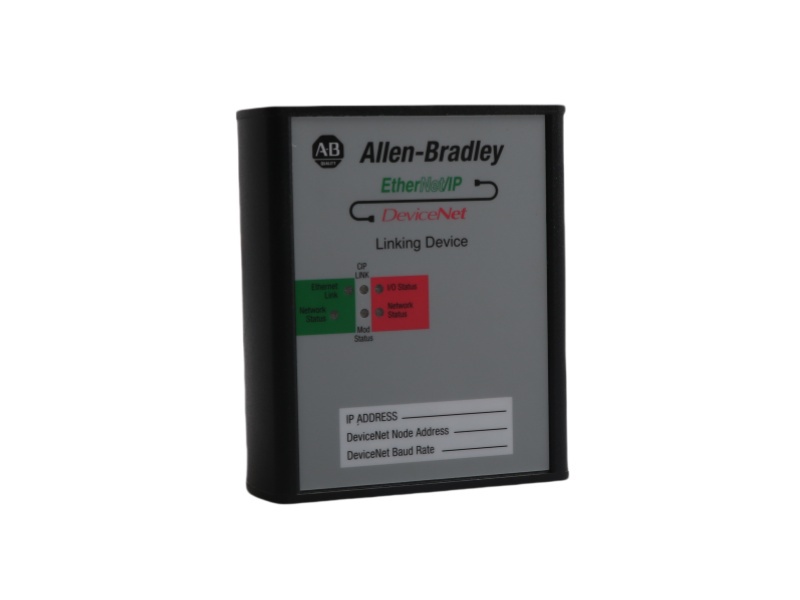

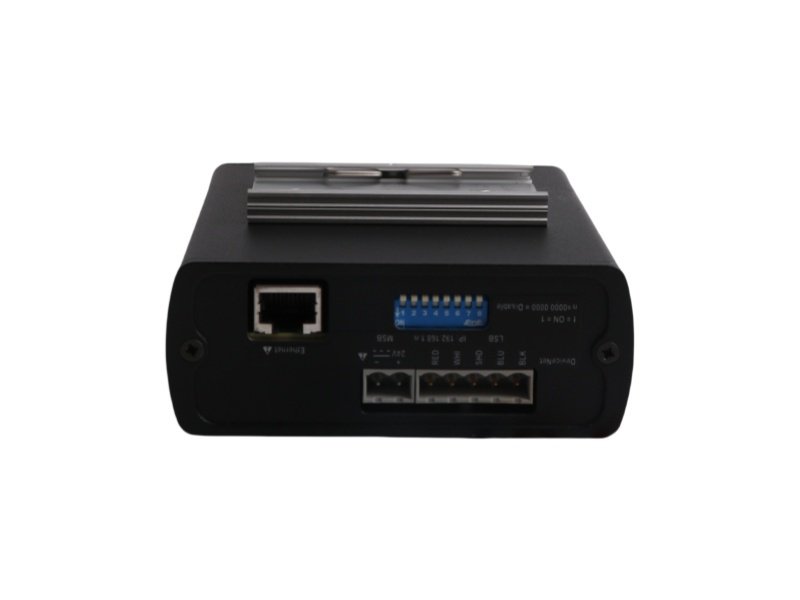

Allen-Bradley 1788-EN2DN Linking Device Module

Allen-Bradley 1788-EN2DN
Allen-Bradley 1788-EN2DN
Allen-Bradley 1788-EN2DN

 1788-EN2DN Product datasheet

Model number:

1788-EN2DN



Module Type:

Linking Device module

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

EtherNet/IP DeviceNet



Lead time:

In Stock

Weight:

0.42kg



HS CODE:

8537101190

Dimension:

10.5x12.5x4.2cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

Jane 30,2016



Communication Service:

Ethernet router



1788-EN2DN Functional Description

The Allen-Bradley 1788-EN2DN is a powerful Ethernet-to-DeviceNet linking device that enables seamless communication between Ethernet-based networks and DeviceNet-enabled devices. This device serves as a gateway, allowing for programming, configuration, control, and data collection over converted protocols, bridging the gap between information-level and device-level networks.

Designed to function as a bridge or router, the 1788-EN2DN connects Ethernet-enabled controllers to DeviceNet devices, enabling them to interact as if they were on a single common network. This capability enhances integration and facilitates smooth data exchange across different network protocols.

With DeviceNet master functionality, the 1788-EN2DN can connect to up to 63 DeviceNet slave devices, making it highly versatile for various automation systems. It also features local memory for data storage, enabling efficient sharing of data and management of I/O tables across both networks.

The 1788-EN2DN is represented as a single device in the network and offers a user-friendly, simple configuration process, making it easy to monitor and manage data flow in both directions. Supporting DHCP server 2.3.2 or later for IP address configuration, this device is ideal for streamlined setup and integration.

For mounting, the 1788-EN2DN supports DIN rail installation and operates with a 12-30VDC power supply, with a nominal 24VDC input. It is housed in an open-type enclosure, so it must be installed within a protective enclosure to ensure safety and reliability.


If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




Allen Bradley

1797-TB3

Allen Bradley

1794-OB16P

Allen Bradley

1794-IE4XOE2

Allen Bradley

1797-IE8NF

Allen Bradley

1794-OB16

Allen Bradley

1794-IE4X0E2

Allen Bradley

1794-VHSC

Allen Bradley

1794-OA8I

Allen Bradley

1794-IB8

Allen Bradley

1794-TBN

Allen Bradley

1794-L34

Allen Bradley

1794-IB16XT

Allen Bradley

1794-TB3S

Allen Bradley

1794-IV16

Allen Bradley

1794-IB16D

Allen Bradley

1794-TB2

Allen Bradley

1794-IRTB

Allen Bradley

1794-IB16

Allen Bradley

1794-PS1

Allen Bradley

1794-IRT8XT

Allen Bradley

1794-IA8

Allen Bradley

1794-OF41

Allen Bradley

1794-IM8

Allen Bradley

1794-AENTR

Allen Bradley

1794-OB8EP

Allen Bradley

1794-IF4I

Allen Bradley

1793-OB16P

Allen Bradley

1794-OB16PXT

Allen Bradley

1794-IE8H

Allen Bradley

1791-OB32





EtherNet/IP-to-DeviceNet Linking Device Introduction


The EtherNet/IP-to-DeviceNet linking device comes in two designs, the IP20 linking device (catalog number 1788-EN2DNR) and the IP67 linking device (catalog number 1788-EN2DNROM). These devices let you seamlessly connect your information or control-level networks with your device-level network. See 1788-EN2DNR and 1788-EN2DNROM Linking Device Features.

The linking devices provide full DeviceNet master functionality, so you can connect up to 63 DeviceNet slave devices to an Ethernet TCP/IP interface that supports the EtherNet/IP network and an HTTP web server.

For example, you could use the linking devices to do the following:

• As gateways to connect information or control-level networks to devicelevel networks for programming, configuration, control, or data collection

• As routers/bridges to connect the EtherNet/IP network to the DeviceNet network The linking devices provide centralized data storage, or I/O tables, for data shared between the DeviceNet and EtherNet/IP networks. Data is placed into the I/O tables by one network interface, allowing the data to be read through the吗other network interface. The linking devices appear as single devices on either network by using standard protocol mechanisms. No special, or extended, protocol features are required for the devices on either network to read or write the data flowing through the I/O tables; all cross-network activity is transparent to the devices on either network. The linking devices also supports Device Level Ring (DLR) and CIP Safety connections.



EtherNet/IP Features


For Class 0 CIP Safety connections, 5 ms maximum delay from network to network EtherNet/IP Features:

• The linking device supports these connections:

– 32 Class 0 connections (Safety)

– 21 Class 1 connections (1 excl. owner, 20 input only/listen only)

– 16 Class 3 connections

• Integrated web server

• Beacon-based DLR (Device Level Ring) support DeviceNet Features

• 63 nodes on the DeviceNet network

• Master/scanner as well as slave/adapter functionality

• Safety I/O

• Scanner configuration using RSNetWorx™ for DeviceNet software

• Autoscan

• ADR (Automatic Device Replacement) with a capacity of 256 kB

• Quick connect (as originator)

• I/O slave messaging (bit strobe, polling, cyclic, change of state)



EtherNet/IP Features

• The linking device supports these connections:

– 32 Class 0 connections (Safety)

– 21 Class 1 connections (1 excl. owner, 20 input only/listen only)

– 16 Class 3 connections

• Integrated web server

• Beacon-based DLR (Device Level Ring) support



DeviceNet Features

• 63 nodes on the DeviceNet network

• Master/scanner as well as slave/adapter functionality

• Safety I/O

• Scanner configuration using RSNetWorx™ for DeviceNet software

• Autoscan

• ADR (Automatic Device Replacement) with a capacity of 256 kB

• Quick connect (as originator)

• I/O slave messaging (bit strobe, polling, cyclic, change of state)
