Ensuring Safe and Reliable PLC Programming in Oil and Gas Refineries

Nov 27 , 2024

Programmable Logic Controllers (PLCs) play a critical role in managing and controllingoperations

within oil and gas refineries. Given the high-risk nature of these environments,ensuring the safety,

reliability, and efficiency of PLC systems is essential. This articleoutlines best practices and key

strategies for PLC programming that help preventerrors, improve system performance, and

safeguard refinery operations.




Understand the Standards and Regulations

Oil and gas refineries are heavily regulated, with strict standards to ensure safety,environmental

protection, and operational efficiency. PLC programmers must befamiliar with relevant codes

and regulations that govern their work. Importantstandards include:

· IEC 61508 & IEC 61511for functional safety

· API 556for burner management

· NFPA 85for boiler and combustion safety

These guidelines help ensure that PLC systems meet legal, technical, and safetyrequirements,

reducing the risk of failure and protecting both workers and theenvironment.









Adopt a Structured and Consistent Approach

PLC programming can be intricate, especially when managing multiple devices,functions, and

inputs. To improve readability, maintainability, and scalability,adopt a structured programming

methodology:

· Standardized Naming Conventions:Use consistent naming for variables,

functions, and tags (e.g., AI_01 for analog input 01, or PID_01 for PID controller 01).

· Proper Documentation:Add comments, headers, and footnotes to explain

the purpose and logic of your code. This will make it easier to troubleshoot and

modify the program later.

· Modular Programming:Break your program into smaller, reusable units.

This approach makes your code easier to test, debug, and maintain.



By following these practices, your PLC code will be easier to manage and less proneto errors,

ensuring more reliable and safer refinery operations.







Test and Debug Your PLC Programs Thoroughly

Testing and debugging PLC programs before deployment is critical to ensuring safe andreliable

operation. You should use various tools and methods to thoroughly test your code,such as:

· Simulation Software:Test how your PLC program will behave under real-world

conditions before applying it to actual equipment.

· Test Benches:Set up a test environment to replicate operational scenarios and

validate your program’s performance.

· Logic Analyzers and Fault Injection:Use these tools to test how the system

responds to errors or failures, ensuring that safety protocols are triggered in case

of malfunction.



Comprehensive testing ensures that any bugs or issues are addressed before the PLC system

is put into operation, minimizing the risk of accidents.







Follow PLC Lifecycle Management

PLC programming is a continuous process that extends through the entire lifecycle of the system.

Proper lifecycle management ensures long-term safety and reliability. The stages of PLC lifecycle

management include:

1. Planning:Conduct risk assessments and design for safety-critical functions.

2. Design:Implement redundant safety systems and ensure thorough testing protocols.

3. Implementation:Adhere to best practices during system setup and commissioning.

4. Operation and Maintenance:Perform routine inspections, updates, and backups to

maintain system reliability.

5. Decommissioning:Properly retire PLC systems at the end of their lifespan, ensuring a

safe shutdown and disposal process.



Following these steps ensures that PLC systems are continually maintained, updated, and compliant

with industry standards throughout their operational life.







Example Modules of Bentley Nevada



990-05-70-02-01

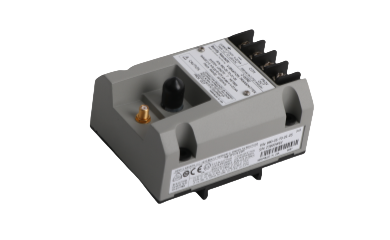

The BENTLY NEVADA 990-05-70-02-01 Proximitor Sensor is an essential tool for industrial

environments requiring precise and reliable distance measurement. Its robust design

withstands harsh conditions, ensuring continuous operation in manufacturing, power

generation, and other demanding sectors.Equipped with advanced sensing technology,

this sensor offers unparalleled accuracy, making it ideal for critical applications where

even the slightest error could lead to significant operational disruptions. Its compact

size and versatile mounting options facilitate easy integration into various machinery

setups.Featuring an operating voltage range of DC 24V, the sensor is compatible with

most industrial control systems. It can measure distances within its specified range

with an exceptional level of precision, allowing for real-time adjustments and

optimization of processes.

990-05-70-01-05

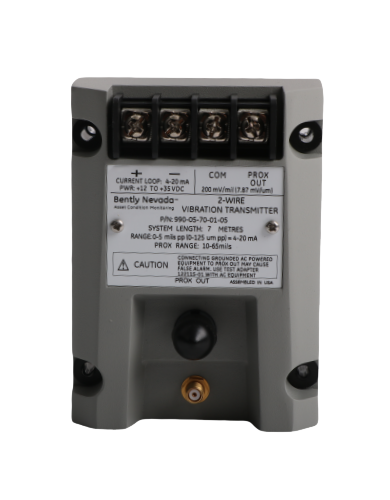

The Bentley Nevada 990-05-70-01-05 Vibration Transmitter utilizes advanced sensor

technology to deliver unparalleled accuracy and reliability in harsh industrial environments.

Its robust design ensures dependable operation in a wide temperature range, making it

ideal for applications where precision monitoring is crucial.With its high sensitivity and

linear frequency response, this transmitter is capable of detecting even subtle changes in

vibration patterns, enabling early detection of potential issues before they escalate into

costly downtime or equipment failure.Manufactured from high-quality, durable materials,

the enclosure not only enhances the device's longevity but also maintains electromagnetic

compatibility, minimizing interference with other equipment.







Conclusion

Ensuring safety and reliability in PLC programming is essential for oil and gas refineries, where the

stakes are high. By adhering to industry standards, using a structured programming approach,

thoroughly testing and debugging programs, and following lifecycle management protocols, you

can significantly reduce the risks associated with PLC systems. These best practices contribute to

the safe, efficient, and reliable operation of refinery systems, safeguarding both workers and the

environment while ensuring optimal performance.
