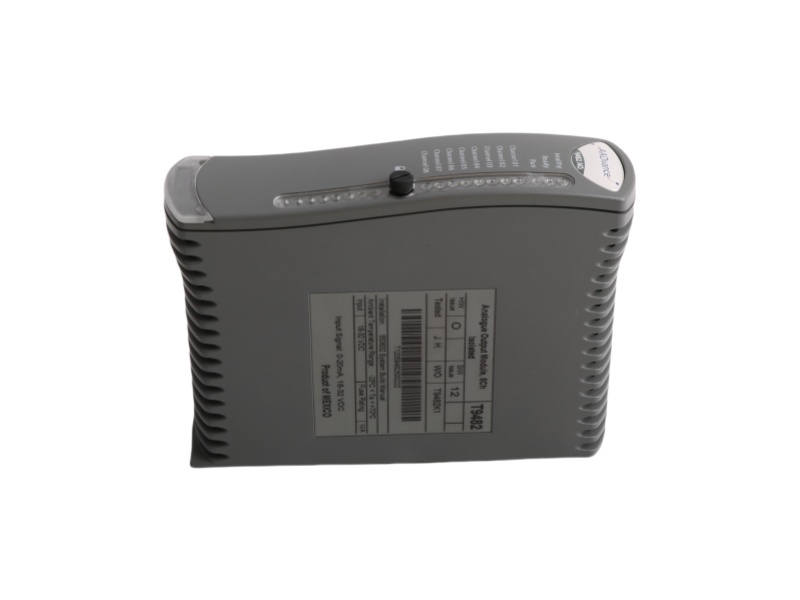

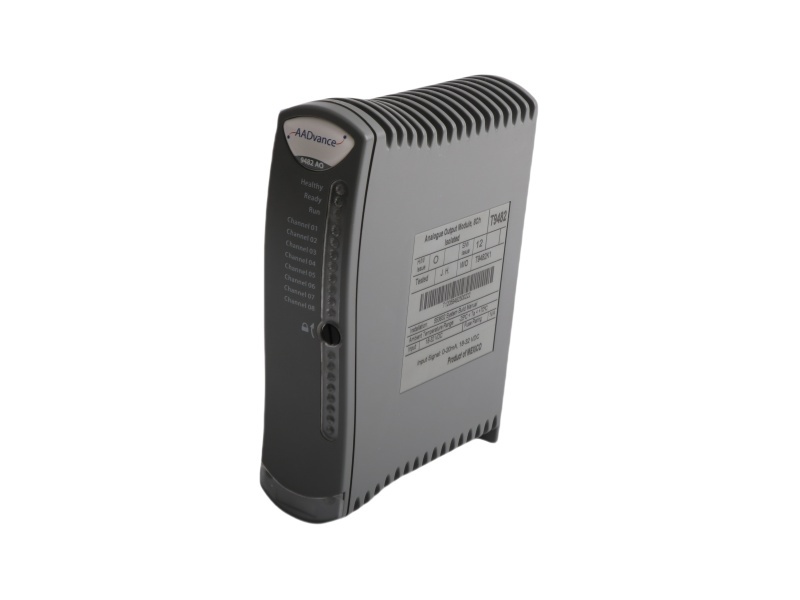

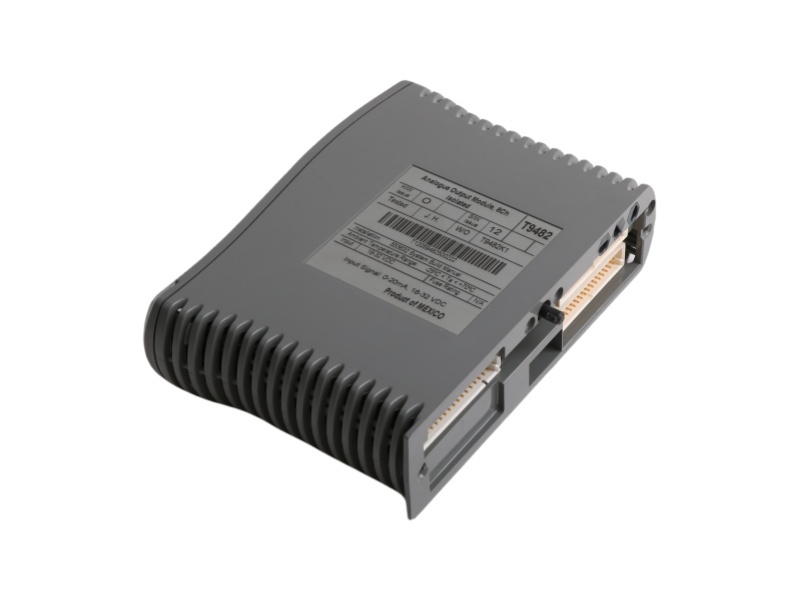

T9482 Product datasheet
|
Model number: |
T9482 |
|
Module Type： |
Analogue Output Module |
|
Manufacture: |
ICS Triplex |
|
Condition： |
Brand New |
|
Range of Product: |
AADvance system |
|
Lead time： |
In Stock |
|
Weight: |
0.36kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4.1x12.7x16.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
T9482 Functional Description
The ICS TRIPLEX T9482 Analogue Output Module delivers exceptional precision and reliability, specifically designed for demanding industrial automation applications. This advanced module ensures efficient control and data output for a variety of sensors and actuators, providing a robust solution for industrial control systems.
With 16 high-performance analogue output channels, the T9482 Analogue Output Module is capable of handling a wide range of output signals, making it ideal for diverse manufacturing and process control environments. Each channel is designed to provide accurate, stable performance, essential for critical control operations.
The T9482 Analogue Output Module operates with a robust DC 24V power supply and supports a current rating of up to 50mA per channel, ensuring reliable operation even in demanding applications. Its broad temperature range of -20°C to +70°C guarantees stable performance across a variety of industrial environments, from factory floors to harsh outdoor settings.
Equipped with an RS-485 Modbus RTU communication interface, the T9482 Analogue Output Module integrates effortlessly with existing systems, enabling easy data exchange and control across different industrial protocols. Its compliance with ISO 9001 standards ensures long-term reliability and minimal maintenance.
Backed by a 2-year warranty, the T9482 Analogue Output Module offers peace of mind, ensuring a reliable solution for your automation needs.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
ICS Triplex |
T9881 |
ICS Triplex |
T8850C |
ICS Triplex |
T8431 |
|
ICS Triplex |
T9852 |
ICS Triplex |
T8850 |
ICS Triplex |
T8403 |
|
ICS Triplex |
T9851 |
ICS Triplex |
T8830C |
ICS Triplex |
T8311 |
|
ICS Triplex |
T9832 |
ICS Triplex |
T8830 |
ICS Triplex |
T8310C |
|
ICS Triplex |
T9802 |
ICS Triplex |
T8800 |
ICS Triplex |
T8232 |
|
ICS Triplex |
T9482 |
ICS Triplex |
T8480 |
ICS Triplex |
T8151B |
|
ICS Triplex |
T9432 |
ICS Triplex |
T8461CX |
ICS Triplex |
T8122 |
|
ICS Triplex |
T9451 |
ICS Triplex |
T8461C |
ICS Triplex |
T8110B |
|
ICS Triplex |
T9310-02 |
ICS Triplex |
T8461 |
ICS Triplex |
T7481A |
|
ICS Triplex |
T9300 |
ICS Triplex |
T8431C |
ICS Triplex |
T3481A |
AADvance Controller Introduction
The AADvance controller meets non-safety business requirements and SIL 2 and SIL 3 safety related system requirements. The system has comprehensive built-in redundant capabilities that improve system availability. The AADvance safety system features are:
• Easily transformed from a simplex non-safety system to a fault tolerant safety related system.
• An AADvance platform provides a set of components that can be configured to meet a range of safety and fault tolerance user requirements within a single system such as - fault tolerant topologies 1oo1, 1oo2D and 2oo3.
• IEC 61508 certified, reviewed and approved for safety systems up to SIL 3 by independent certifying bodies.
• The scalable characteristics of the system enables independent safety functions within the same system to be configured with different architectures to meet a user specific safety and availability requirements.
• The main components that provide the safety architecture are the processor and I/O modules; the remaining components provide secure external interfaces and connectivity between the field elements and the main components and add to the safety functionality.
• AADvance processor modules are designed to meet the requirements for SIL 2 in a simplex configuration and SIL 3 in a dual or triplicated configuration.
• Individual input modules are designed to meet the requirements for SIL 3 in simplex, dual or triple configurations.
• Individual output modules have been designed to meet the requirements for SIL 3 in a simplex or dual configurations.
• Safe SIL 3 rated 'Black Channel' external communication over Ethernet.
Environment Standard
The AADvance system has been investigated to United States National Standard (s) UL508, 17th Edition and Canadian National Standard (s) C22.2 No 142, 1st Edition. The investigation covers the following modules and provides requirements for compliance to the standards for use in a nonhazardous and hazardous environments.
The AADvance controller has been investigated and approved by UL for use as Industrial Control Equipment in hazardous locations, Class I, Division 2, Groups A, B, C and D in North America. The AADvance controller has been assessed for ATEX compliance. The UL Certification No. is DEMKO 11 ATEX 1129711X. The ATEX marking is ExnA IIC T4 Gc. Additionally the AADvance controller is approved under the IECEx certification scheme. The certificate number is IECEx UL 12.0032X.
