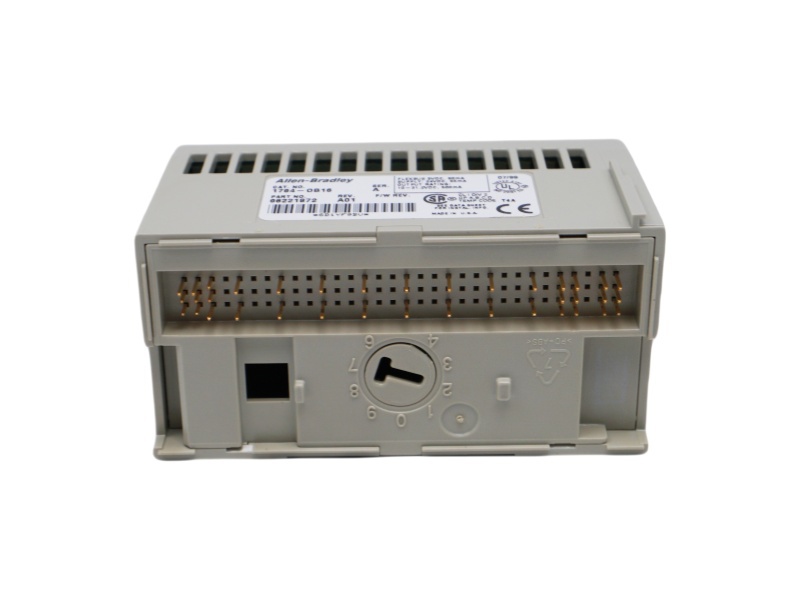

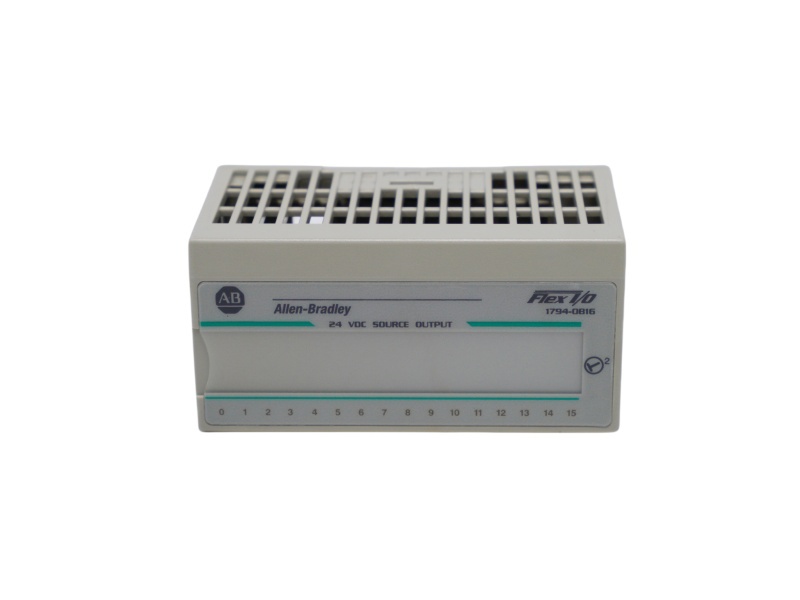

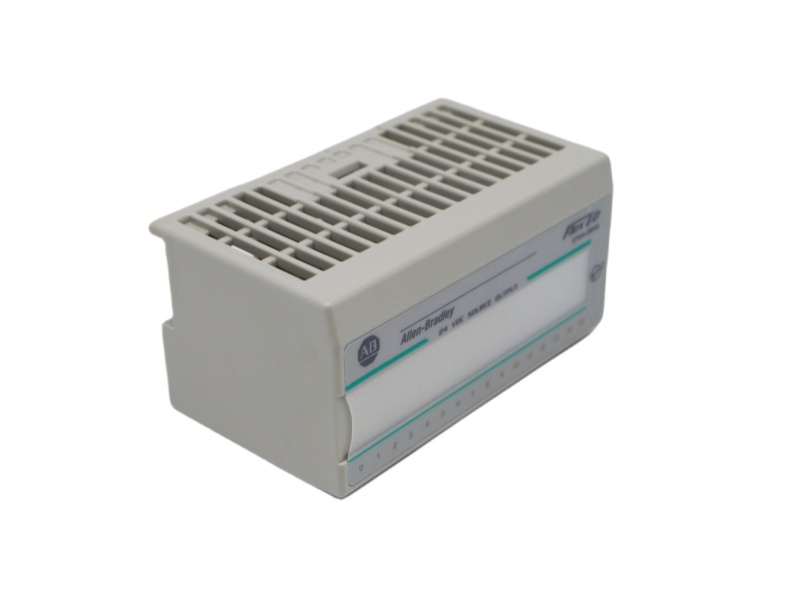

Allen-Bradley 1794-OB16 FLEX I/O Digital DC Output Modules

Allen-Bradley 1794-OB16
Allen-Bradley 1794-OB16
Allen-Bradley 1794-OB16

 1794-OB16 Product datasheet

Model number:

1794-OB16



Module Type:

Digital DC Output Modules

Manufacture:

Allen-Bradley



Condition:

Brand New

Range of Product:

FLEX I/O Modules



Lead time:

In Stock

Weight:

0.1 kg



HS CODE:

8537101190

Dimension:

10.2cmx7.6cmx5.1cm



MOQ:

1

Product Origin:

USA



System:

PLCS

Discontinued on:

Jane 30,2016



Communication Service:

Ethernet router



1794-OB16 Functional Description

Experience superior control and precision with the Allen Bradley 1794-OB16, a robust digital output module designed for demanding industrial environments. As part of the Allen Bradley PLC series, the 1794-OB16 is renowned for its reliability, ensuring smooth and efficient operation in a wide range of applications.

Featuring 16 sourcing outputs, the 1794-OB16 is highly versatile and supports various applications, from machine control to process automation. This allows for seamless integration with existing control systems, making it an ideal choice for both new installations and system upgrades.

With its convenient DIN rail mounting, the 1794-OB16 ensures quick and secure installation, reducing downtime and streamlining the setup process for increased productivity. Designed for harsh industrial conditions, the module operates with a stable 24V DC voltage, ensuring consistent performance even under challenging environments.

The 1794-OB16 also boasts high current ratings and low power dissipation, making it perfect for applications requiring significant output capacity without excessive energy consumption. With Allen Bradley's trusted brand, the 1794-OB16 is supported by comprehensive documentation and reliable customer service, ensuring easy maintenance and long-term, hassle-free operation.


If you have other request contact our team to get customized service


  •       One Year Warranty

    We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.

  •         Shipping & Delivery

    We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
  • #

                Payment Method

    We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?
Call +86 18159889985 to be connected with our Manager Stella
     Email to sales6@apterpower.com get your best quotation
    For the quick assistance message us on WhatsApp at +86 18159889985 now!
    You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!




Allen Bradley

1797-TB3

Allen Bradley

1794-OB16P

Allen Bradley

1794-IE4XOE2

Allen Bradley

1797-IE8NF

Allen Bradley

1794-OB16

Allen Bradley

1794-IE4X0E2

Allen Bradley

1794-VHSC

Allen Bradley

1794-OA8I

Allen Bradley

1794-IB8

Allen Bradley

1794-TBN

Allen Bradley

1794-L34

Allen Bradley

1794-IB16XT

Allen Bradley

1794-TB3S

Allen Bradley

1794-IV16

Allen Bradley

1794-IB16D

Allen Bradley

1794-TB2

Allen Bradley

1794-IRTB

Allen Bradley

1794-IB16

Allen Bradley

1794-PS1

Allen Bradley

1794-IRT8XT

Allen Bradley

1794-IA8

Allen Bradley

1794-OF41

Allen Bradley

1794-IM8

Allen Bradley

1794-AENTR

Allen Bradley

1794-OB8EP

Allen Bradley

1794-IF4I

Allen Bradley

1793-OB16P

Allen Bradley

1794-OB16PXT

Allen Bradley

1794-IE8H

Allen Bradley

1791-OB32





FLEX I/O Digital DC Protected Output Modules Introduction


1794-OB16P provides 16 sourcing 1/2 Amp outputs self-protected against shorts, overloads, and over temperature. The faulted output will automatically return when the fault is removed. No feedback to the processor is provided.

1794-OB16PXT is the extended temperature version of the 1794-OB16P module. The module is conformal coated.

1794-OB8EP provides 8 sourcing 2 Amp outputs with electronic fuse type of overload protection, which opens when overloaded. The fuse can be 'reset' several ways. Fault status is provided to the processor.

1794-OB8EPXT is the extended temperature version of the 1794-OB8EP module. The module is conformal coated.

1794-OB32P provides 32 self-protected sourcing 1/2 Amp outputs in 2 groups of 16 outputs. Separate voltage sources can be used with each group.

1794-OV16P is the sinking version of the 1794-OB16P.

Connecting Wiring for the 1794-OB8, 1794-OB8EP, 1794-OB16, and1794-OB16P


1. Connect individual output wiring to numbered terminals on the 0-15 row (A) as indicated in the table below (1794-OB8 – Terminals 0...7; 1794-OB16 and 1794-OB16P – terminals 0...15; 1794-OB8EP – even numbered terminals 0...14).

2. Connect the associated -V output common to the corresponding terminal on the 16-33 row (B) for each output as indicated in the table below. (Commons are internally connected together.) 1794-OB8EP – connect associated output common to odd-numbered terminals on row A or associated terminals on row (B).

3. Connect +V DC power to terminal 34 on the 34-51 row (C).

4. Connect -V DC common to terminal 16 on the 16-33 row (B).

5. If daisychaining power to the next terminal base, connect a jumper from terminal

51 (+V DC) on this base unit to terminal 34 on the next base unit.

6. If continuing -V DC common to the next base unit, connect a jumper from terminal 33 (common) on this base unit to terminal 16 on the next base unit.
