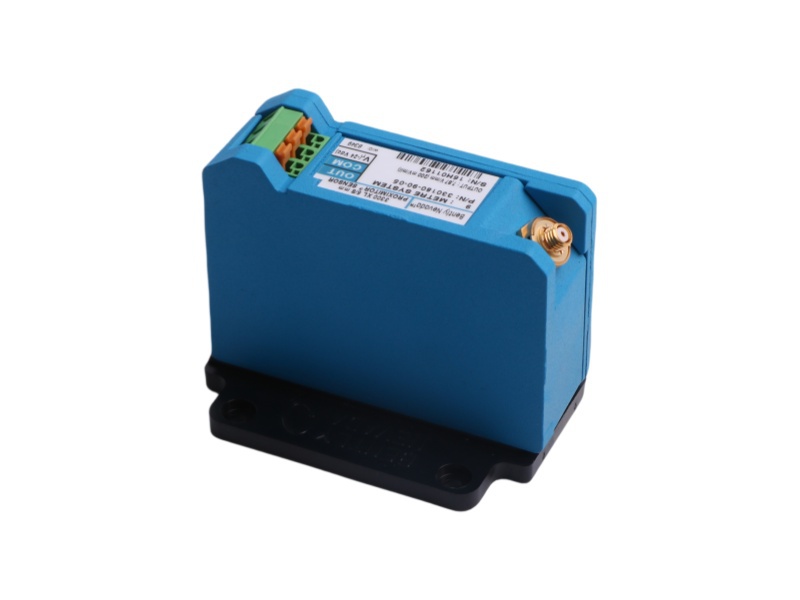

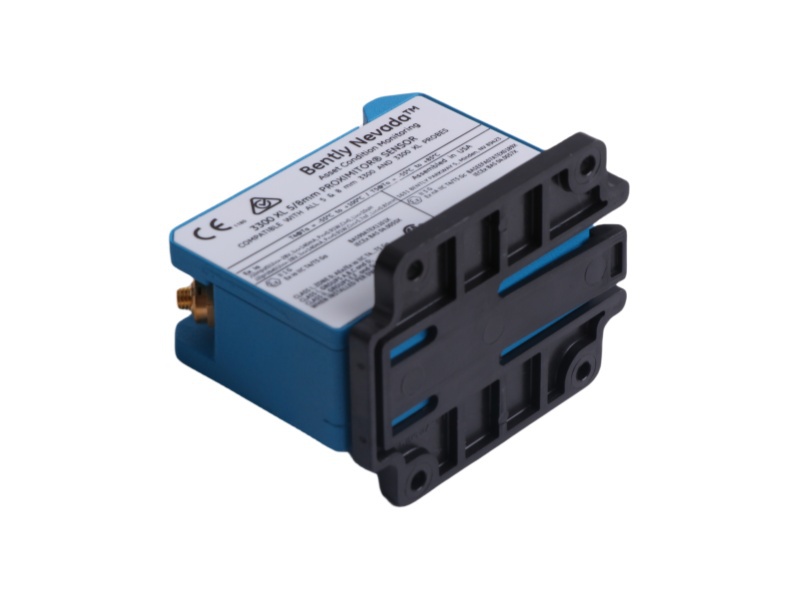

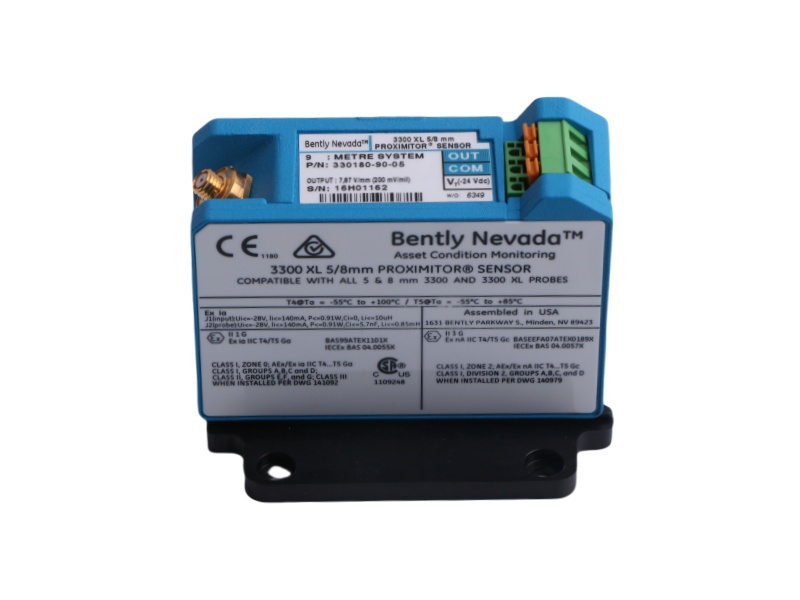

330180-90-05 Product datasheet
Model number: |
330180-90-05 |
|
Module Type: |
Proximitor Sensor |
Manufacture: |
Bently Nevada |
|
Condition: |
Brand New |
Range of Product: |
3300 XL 8 mm Proximity Transducer System |
|
Lead time: |
In Stock |
Weight: |
0.22kg |
|
HS CODE: |
8537101190 |
Dimension: |
7.8x6x6.4cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
TSI |
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
330180-90-05 Functional Description
The Bently Nevada 330180-90-05 Proximity Control Module is specifically designed to meet the demands of harsh industrial environments, offering exceptional durability and reliability. Housed in a robust stainless steel casing, this module is protected against dust and water ingress, making it ideal for a variety of industries, including oil & gas, chemical processing, and food & beverage sectors.
Equipped with advanced Hall Effect technology, the 330180-90-05 Proximity Control Module ensures precise detection over a broad range, allowing for accurate measurement and control of objects without physical contact. This capability is critical in high-precision applications like robotic arm guidance and conveyor belt monitoring, where safety and accuracy are paramount.
The 330180-90-05 Proximity Control Module operates effectively in extreme environmental conditions, with an operating temperature range from -40°C to +70°C. Its low current consumption not only ensures efficient power usage but also helps reduce energy costs and long-term maintenance.
With an IP67 protection rating, the 330180-90-05 Proximity Control Module offers resistance against dust, water splashes, and even temporary immersion up to 1 meter deep for 30 minutes, making it ideal for use in wet environments. Compatible with a wide array of control systems, this module ensures easy integration into existing automation networks, minimizing downtime and optimizing productivity.
If you have other request contact our team to get customized service
Bently Nevada |
330180-X1-CN MOD:145193-09 |
Bently Nevada |
330180-X0-05 |
Bently Nevada |
330180-51-05 |
Bently Nevada |
330180-X1-CN MOD:145004-141 |
Bently Nevada |
330180-92-05 |
Bently Nevada |
330180-51-00 |
Bently Nevada |
330930-040-00-00 P3403893-0006 |
Bently Nevada |
330180-91-05 |
Bently Nevada |
330180-50-00 |
Bently Nevada |
330180-X1-CN MOD:143416-29 |
Bently Nevada |
330180-91-00 |
Bently Nevada |
330906-02-12-05-02-05 |
Bently Nevada |
330180-X1-05 MOD:145004-57 |
Bently Nevada |
330180-90-CN |
Bently Nevada |
330905-14-19-10-02-05 |
Bently Nevada |
330910-10-22-10-01-CN |
Bently Nevada |
330180-90-05 |
Bently Nevada |
330905-08-13-10-12-05 |
Bently Nevada |
330180-X1-05 MOD:143945-05 |
Bently Nevada |
330180-90-00 |
Bently Nevada |
330905-08-13-10-02-05 |
Bently Nevada |
330180-X1-05 MOD:143416-07 |
Bently Nevada |
330180-51-CN |
Bently Nevada |
330905-00-10-10-02-CN |
3300 XL 8 mm Proximity Transducer System Introduction
The 3300 XL 8 mm Proximity Transducer System consists of:
1. One 3300 XL 8 mm probe
2. One 3300 XL extension cable
3. One 3300 XL Proximitor Sensor.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
3300 XL 8 mm Proximity Transducer Connectors
The 3300 XL probe, extension cable, and Proximitor sensor have corrosion-resistant, gold-plated ClickLoc connectors. These connectors require only finger-tight torque (the connectors will "click" when tight), and the specially-engineered locking mechanism prevents the connectors from loosening. These connectors require no special tools for installation or removal.
You can order the 3300 XL 8 mm probes and extension cables with connector protectors already installed. We can also supply connector protectors separately for field installations (such as when an application must run the cable through restrictive conduit). We recommend connector protectors for all installations to provide increased environmental protection.
