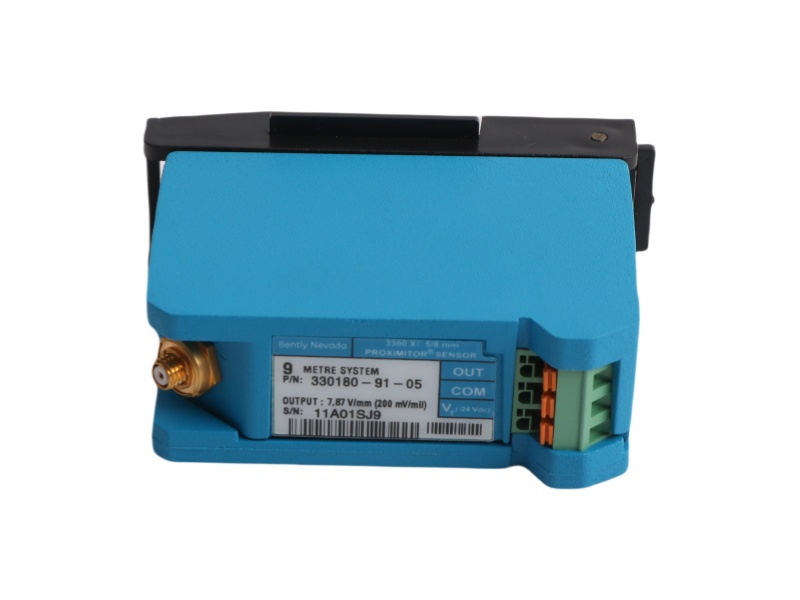

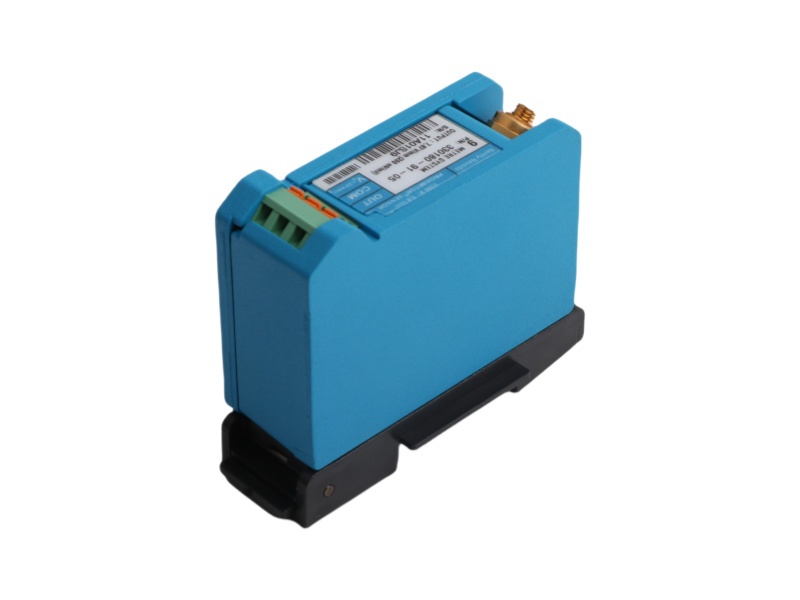

330180-91-05 Product datasheet
Model number: |
330180-91-05 |
|
Module Type: |
Proximitor Sensor |
Manufacture: |
Bently Nevada |
|
Condition: |
Brand New |
Range of Product: |
3300 XL 8 mm Proximity Transducer System |
|
Lead time: |
In Stock |
Weight: |
0.22kg |
|
HS CODE: |
8537101190 |
Dimension: |
8.8x3.5x7cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
TSI |
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
330180-91-05 Functional Description
Engineered for precision and reliability, the Bently Nevada 330180-91-05 proximity transducer module plays a crucial role in maintaining operational efficiency within industrial control systems. Specifically designed for integration into Distributed Control Systems (DCS), this advanced module delivers exceptional accuracy and robust performance even under the most demanding conditions.
Operating on a 12V DC voltage, the 330180-91-05 proximity transducer module is compatible with a wide range of power sources commonly used in industrial environments. Its broad frequency range of 1 kHz to 1 MHz supports dynamic measurement needs across various operational applications.
With an impressive accuracy of +/- 0.02% of full scale, the 330180-91-05 proximity transducer module ensures highly precise distance measurements, making it essential for critical industrial applications. Its wide operating temperature range of -40°C to +85°C allows it to perform reliably in harsh environmental conditions, making it ideal for both indoor and outdoor use.
The 330180-91-05 proximity transducer module features a panel-mount design for easy installation and maintenance, while its stainless steel construction ensures durability and resistance to corrosion. Equipped with a 4-20mA signal output, it integrates seamlessly with existing DCS systems, enhancing monitoring, real-time data analysis, and proactive maintenance capabilities. This module is a vital component for optimizing industrial processes and improving system reliability.
If you have other request contact our team to get customized service
Bently Nevada |
330180-X1-CN MOD:145193-09 |
Bently Nevada |
330180-X0-05 |
Bently Nevada |
330180-51-05 |
Bently Nevada |
330180-X1-CN MOD:145004-141 |
Bently Nevada |
330180-92-05 |
Bently Nevada |
330180-51-00 |
Bently Nevada |
330930-040-00-00 P3403893-0006 |
Bently Nevada |
330180-91-05 |
Bently Nevada |
330180-50-00 |
Bently Nevada |
330180-X1-CN MOD:143416-29 |
Bently Nevada |
330180-91-00 |
Bently Nevada |
330906-02-12-05-02-05 |
Bently Nevada |
330180-X1-05 MOD:145004-57 |
Bently Nevada |
330180-90-CN |
Bently Nevada |
330905-14-19-10-02-05 |
Bently Nevada |
330910-10-22-10-01-CN |
Bently Nevada |
330180-90-05 |
Bently Nevada |
330905-08-13-10-12-05 |
Bently Nevada |
330180-X1-05 MOD:143945-05 |
Bently Nevada |
330180-90-00 |
Bently Nevada |
330905-08-13-10-02-05 |
Bently Nevada |
330180-X1-05 MOD:143416-07 |
Bently Nevada |
330180-51-CN |
Bently Nevada |
330905-00-10-10-02-CN |
3300 XL 8 mm Proximity Transducer System Introduction
The 3300 XL 8 mm Proximity Transducer System consists of:
1. One 3300 XL 8 mm probe
2. One 3300 XL extension cable
3. One 3300 XL Proximitor Sensor.
The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements. The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range, accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components. Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.
