330930-045-01-00 Product datasheet
Model number: |
330930-045-01-00 |
|
Module Type: |
3300 NSv Extension Cable |
Manufacture: |
Bently Nevada |
|
Condition: |
Brand New |
Range of Product: |
3300 XL NSv Proximity Transducer System |
|
Lead time: |
In Stock |
Weight: |
0.4kg |
|
HS CODE: |
8537101190 |
Dimension: |
28x28x2cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
TSI |
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
330930-045-01-00 Functional Description

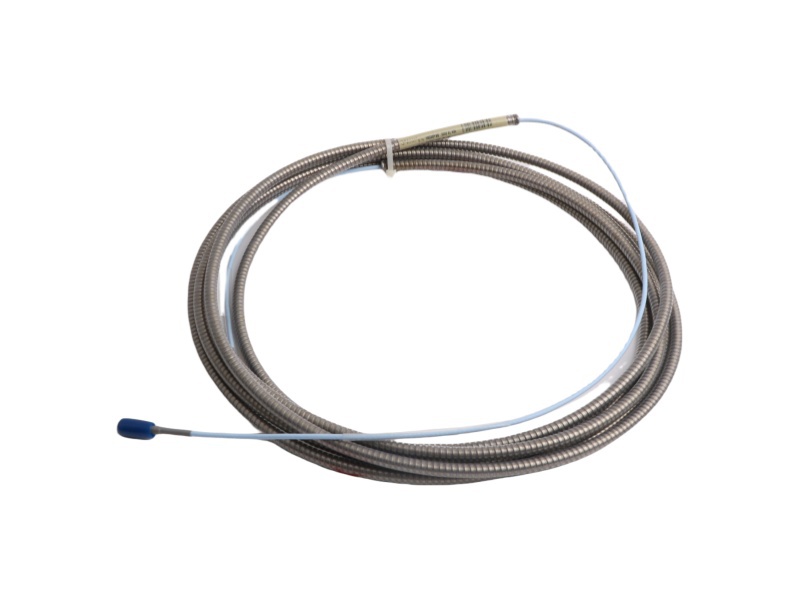

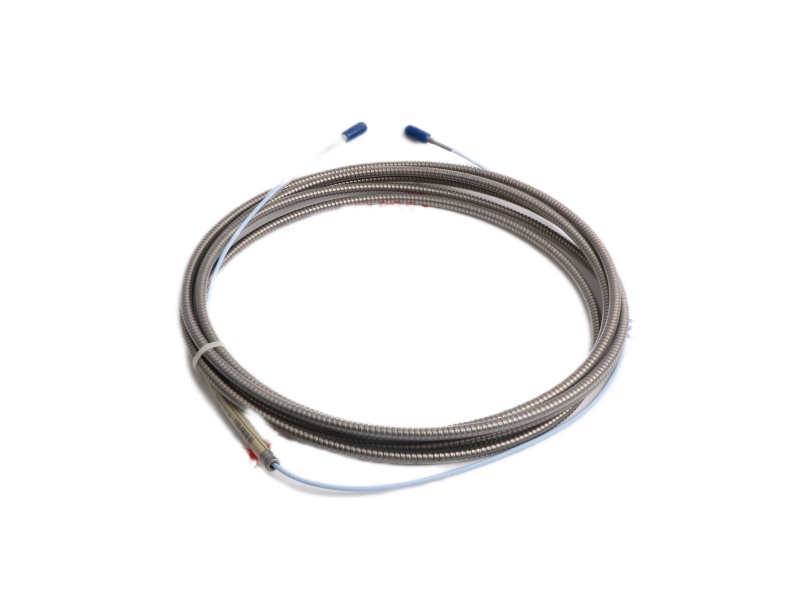

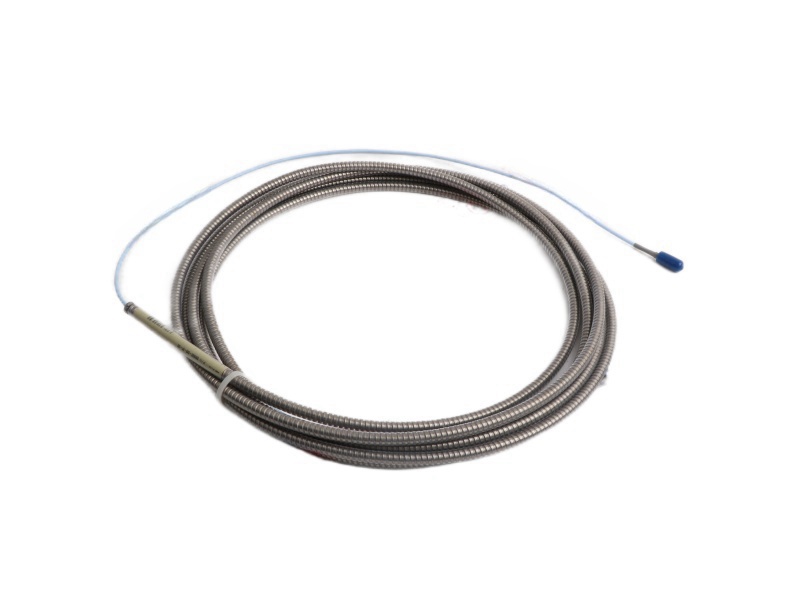

The Bently Nevada 330930-045-01-00 extension cable is designed for superior performance in demanding industrial environments. Made from high-grade copper alloy, it ensures exceptional conductivity and long-term durability, even in the harshest conditions. This high-quality construction supports the Bently Nevada 330930-045-01-00's ability to maintain stable and efficient operation, making it ideal for industrial control systems that demand reliability.
With its extended length, the Bently Nevada 330930-045-01-00 provides flexibility in system design, allowing for optimal placement of control units without sacrificing data integrity. The advanced insulation materials used in this cable protect against environmental extremes, ensuring excellent electrical performance across a wide temperature range.
Designed for seamless integration with Bently Nevada 3300 series components, the Bently Nevada 330930-045-01-00 guarantees compatibility and ease of installation, making it a critical component for any system requiring high-speed data transfer. The robust connector design ensures a secure and reliable connection, improving the overall stability of industrial control systems.
For applications requiring enhanced connectivity and reliable data transmission, the Bently Nevada 330930-045-01-00 extension cable is an indispensable tool, ensuring efficient and dependable industrial operations.
If you have other request contact our team to get customized service
Bently Nevada |
330930-040-02-00 |
Bently Nevada |
330910-03-09-05-02-05 |
Bently Nevada |
330909-00-60-10-02-05 |
Bently Nevada |
330930-040-00-05 |
Bently Nevada |
330910-014-19-10-02-00 |
Bently Nevada |
330909-00-60-10-01-05 |
Bently Nevada |
330930-040-00-00 P3403893-0006 |
Bently Nevada |
330910-00-12-10-02-00 |
Bently Nevada |
330907-05-30-10-02-00 |
Bently Nevada |
330930-040-00-00 |
Bently Nevada |
330910-00-11-10-02-05 |
Bently Nevada |
330906-02-12-05-02-05 |
Bently Nevada |
330910-14-19-10-02-00 |
Bently Nevada |
330910-00-05-50-02-00 |
Bently Nevada |
330905-14-19-10-02-05 |
Bently Nevada |
330910-10-22-10-01-CN |
Bently Nevada |
330910-00-05-10-02-00 |
Bently Nevada |
330905-08-13-10-12-05 |
Bently Nevada |
330910-05-11-10-02-00 |
Bently Nevada |
330909-00-99-10-02-00 |
Bently Nevada |
330905-08-13-10-02-05 |
Bently Nevada |
330910-05-10-02-00 |
Bently Nevada |
330909-00-80-10-02-05 |
Bently Nevada |
330905-00-10-10-02-CN |
3300 XL NSv Proximity Transducer System Introduction
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
a 3300 NSv probe
a 3300 NSv extension cable
a 3300 XL NSv Proximitor Sensor(1)
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
