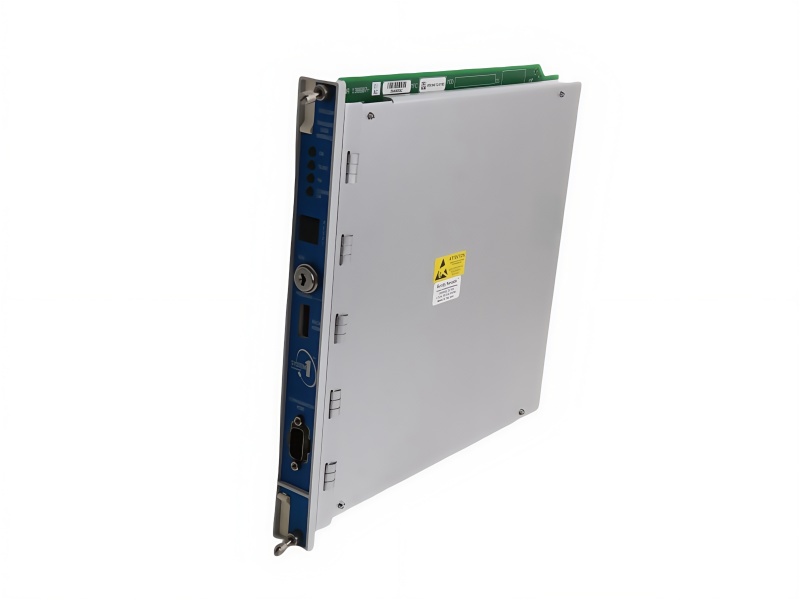

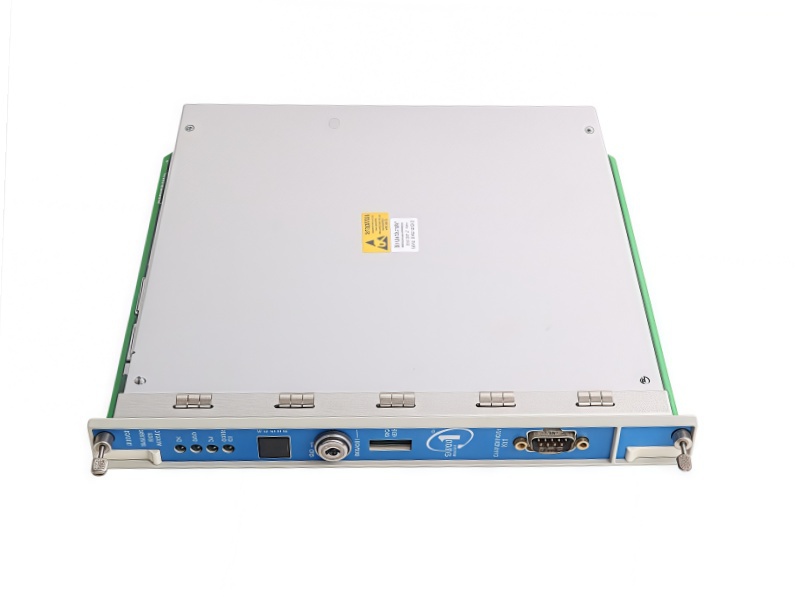

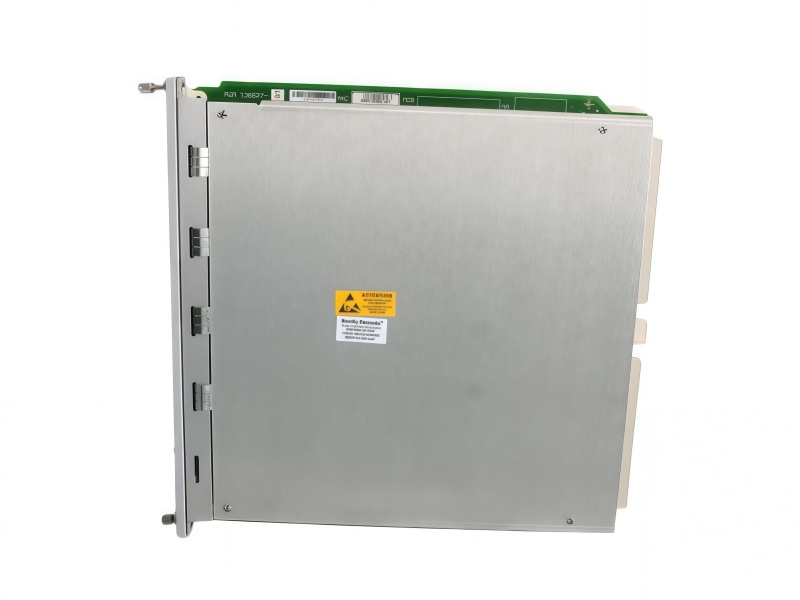

Bently Nevada 3500/22M 138607-01 Transient Data Interface Module

Inquiry now

3500/22M 138607-01 Product datasheet

Model number:	3500/22M 138607-01	Module Type：	Transient Data Interface Module
Manufacture:	Bently Nevada	Condition：	Brand New
Range of Product:	3500 system	Lead time：	In Stock
Weight:	0.8kg	HS CODE：	8537101190
Dimension:	2.6x25.8x24cm	MOQ:	1
Product Origin:	USA	System：	TSI
Discontinued on:	Dec 31,2018	Communication Service:	Ethernet router

3500/22M 138607-01 Functional Description

The 3500/22M 138607-01 Transient Data Interface (TDI) is a vital component that bridges the 3500 monitoring system with compatible software, including System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software. This module integrates the functionality of a 3500/20 Rack Interface Module (RIM) with the data collection capabilities of communication processors like TDXnet.

Installed in the slot next to the power supplies of the 3500 rack, the 3500/22M 138607-01 interfaces with M series monitors (e.g., 3500/40M, 3500/42M) to gather both steady-state and transient dynamic (waveform) data continuously. This data is then transmitted via an Ethernet connection to the host software for further analysis and diagnostics.

The 3500/22M 138607-01 plays a key role in enabling real-time data collection and facilitating communication between the monitoring system and software, ensuring efficient monitoring of both normal operating conditions and transient events. For more details about compatibility and integration, please refer to the Compatibility section of this document.

With the 3500/22M 138607-01, users can reliably monitor critical equipment and respond to transient conditions with ease.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Bently Nevada	3500/22M 138607-01	Bently Nevada	3500/90	Bently Nevada	3500/61 136711-02
Bently Nevada	3500/22M 288055-01	Bently Nevada	3500/77M 140734-07	Bently Nevada	3500/60 163179-01
Bently Nevada	3500/94M 184826-01	Bently Nevada	3500/72M 176449-08	Bently Nevada	3500/60 133811-01
Bently Nevada	3500/94 145988-01	Bently Nevada	3500/70M 176449-09	Bently Nevada	3500/60
Bently Nevada	3500/94-06-00-01	Bently Nevada	3500/65 145988-02	Bently Nevada	3500/54M 286566-01
Bently Nevada	3500/93 135785-01	Bently Nevada	3500/64M 176449-05	Bently Nevada	3500/53 133388-01
Bently Nevada	3500/93 135799-01	Bently Nevada	3500/64M	Bently Nevada	3500/50M 286566-02
Bently Nevada	3500/93 135785-01	Bently Nevada	3500/62 163179-03	Bently Nevada	3500/20 125744-02
Bently Nevada	3500/92 136180-01	Bently Nevada	3500/61E 285694-02	Bently Nevada	3500/15 133292-01
Bently Nevada	3500/92-02-01-00	Bently Nevada	3500/61 163179-02	Bently Nevada	3500/15 129486-01

3500 System Introduction

Description

The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. The system’s modular rack-based design includes the following components:

1.3500/05 Instrument Rack (required)

2.One or two 3500/15 Power Supplies (required)

3.3500/22M Transient Data Interface (TDI) Module (required)

4.One or more 3500/XX Monitor Modules (required)

5.One or more 3500/32M (4-channel) or 3500/33 (16-channel)

Relay Modules (optional)：

1.One or two 3500/25 Keyphasor* Modules (optional)

2. One or more 3500/92 Communication Gateway Modules(optional)

3. Input/Output (I/O) Modules (required)

4. 3500/94M VGA Display (optional)

5. Internal or external intrinsic safety barriers, or galvanic isolatorsfor hazardous area installations (optional)

6. 3500 System Configuration Software (required)

System components are described in more detail in the followingsection and in their individual datasheets.

3500 System Transient Data Interface (TDI)

The TDI is the 3500 Rack’s primary interface to the configuration, display, and condition monitoring software. Each rack requires one TDI, located in the rack slot immediately adjacent to the power supply slot.

The TDI supports a proprietary protocol used by the 3500 Configuration Software to configure the rack and the 3500 Operator Display Software to retrieve rack data and statuses.

The TDI also provides a direct interface with System 1* Condition Monitoring and Diagnostic software without the need for an external communications processor.

The Rack OK relay is located within the TDI’s I/O module. It is driven by NOT OK conditions within the TDI itself and within other modules in the rack.

The TDI supports self-monitoring functions both for itself and for the rack, in addition to those provided by the individual monitor, relay, communications, and other modules. While the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and its machinery protection functions.
