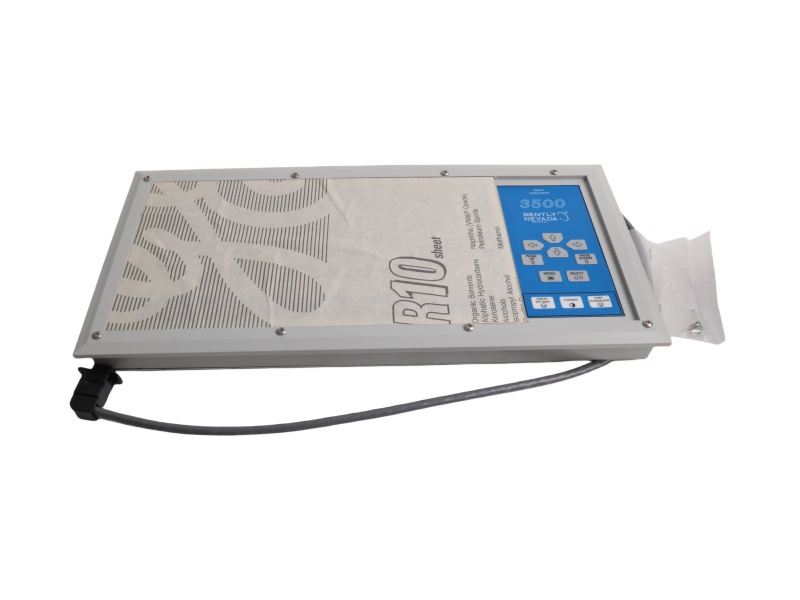

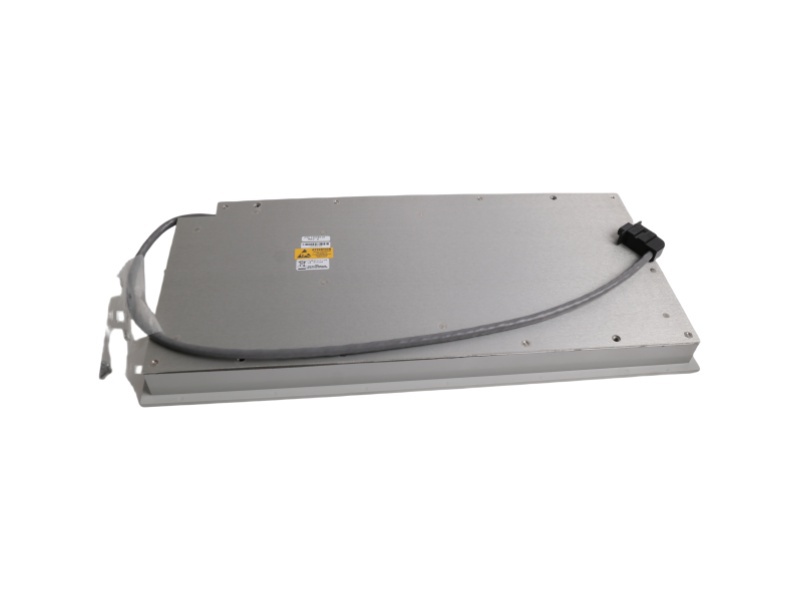

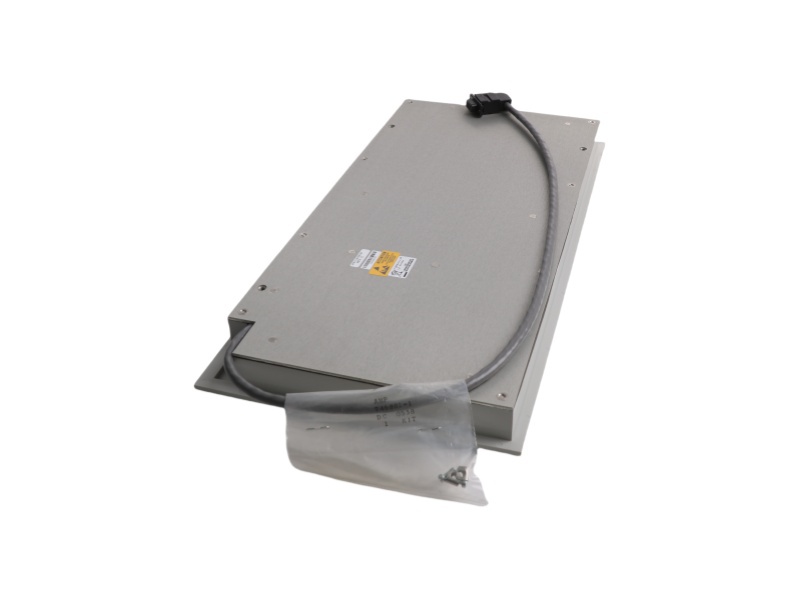

3500/93 135785-01 Product datasheet
|
Model number: |
3500/93 135785-01 |
|
Module Type： |
System Display Module |
|
Manufacture: |
Bently Nevada |
|
Condition： |
Brand New |
|
Range of Product: |
3500 system |
|
Lead time： |
In Stock |
|
Weight: |
1.4kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
16×9.5×21.3cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
TSI |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
3500/93 135785-01 Functional Description
The Bently Nevada 3500/93 135785-01 System Display Module is designed to seamlessly integrate with existing industrial control systems, providing real-time insights into critical operational data through its high-resolution display. Its wide temperature range compatibility ensures dependable performance, even in harsh environments, making it a reliable choice for demanding industrial applications.
Featuring an intuitive user interface, the 3500/93 135785-01 System Display Module simplifies the interpretation of complex data, allowing operators to easily monitor system status, performance metrics, and alerts. The module’s robust communication interfaces ensure smooth integration with a variety of control protocols, enhancing flexibility within diverse industrial settings.
Built for durability and efficiency, this display module uses high-quality components to withstand the rigors of industrial environments without sacrificing performance. It offers extensive storage capacity, enabling easy access to historical data for analysis and long-term retention.
The 3500/93 135785-01 System Display Module improves productivity and safety across industries like manufacturing, power generation, and process control. By facilitating proactive maintenance and troubleshooting, it helps minimize downtime and optimize operational efficiency.
With full compliance to international safety standards, the 3500/93 135785-01 System Display Module ensures peace of mind, making it a trusted solution for enhancing industrial automation systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Bently Nevada |
3500/94M 184826-01 |
Bently Nevada |
3500/90 |
Bently Nevada |
330909-00-60-10-02-05 |
|
Bently Nevada |
3500/94 145988-01 |
Bently Nevada |
3500/77M 140734-07 |
Bently Nevada |
330909-00-60-10-01-05 |
|
Bently Nevada |
3500/94-06-00-01 |
Bently Nevada |
3500/22M 138607-01 |
Bently Nevada |
330907-05-30-10-02-00 |
|
Bently Nevada |
3500/93 135785-01 |
Bently Nevada |
330910-00-11-10-02-05 |
Bently Nevada |
330906-02-12-05-02-05 |
|
Bently Nevada |
3500/93 135799-01 |
Bently Nevada |
330910-00-05-50-02-00 |
Bently Nevada |
330905-14-19-10-02-05 |
|
Bently Nevada |
3500/93 135785-01 |
Bently Nevada |
330910-00-05-10-02-00 |
Bently Nevada |
330905-08-13-10-12-05 |
|
Bently Nevada |
3500/92 136180-01 |
Bently Nevada |
330909-00-99-10-02-00 |
Bently Nevada |
330905-08-13-10-02-05 |
|
Bently Nevada |
3500/92-02-01-00 |
Bently Nevada |
330909-00-80-10-02-05 |
Bently Nevada |
330905-00-10-10-02-CN |
3500/93 Introduction
The 3500/93 System Display is designed to meet the requirements of American Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including:
1. System Event List
2. Alarm Event Lists
3. All Channel, Monitor, Relay Module, Keyphasor
Module or Tachometer Module data The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in any of four ways:
1. Face Mounting – display installs directly over the front panel of any full size 3500 rack using a special hinged support. This permits access to the rack’s buffered output connectors and userinterface buttons and switches without disconnecting or disabling the display.
Note: For this mounting option only, the Display Interface Module (DIM) must be installed in slot 15 (right-most slot) of the rack. The Face Mounting option is not compatible with the 3500 Mini-rack.
2. 19-inch EIA Rack Mounting – display is mounted on 19-inch EIA rails and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
3. Panel Mounting – display is mounted in a panel cutout located in the same cabinet or up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
4. Independent Mounting – display is mounted flush against a wall or panel and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
