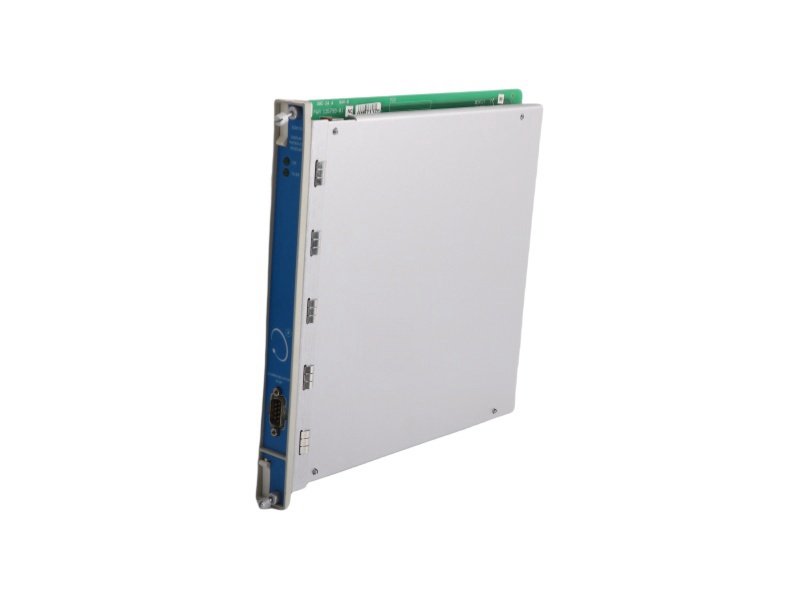

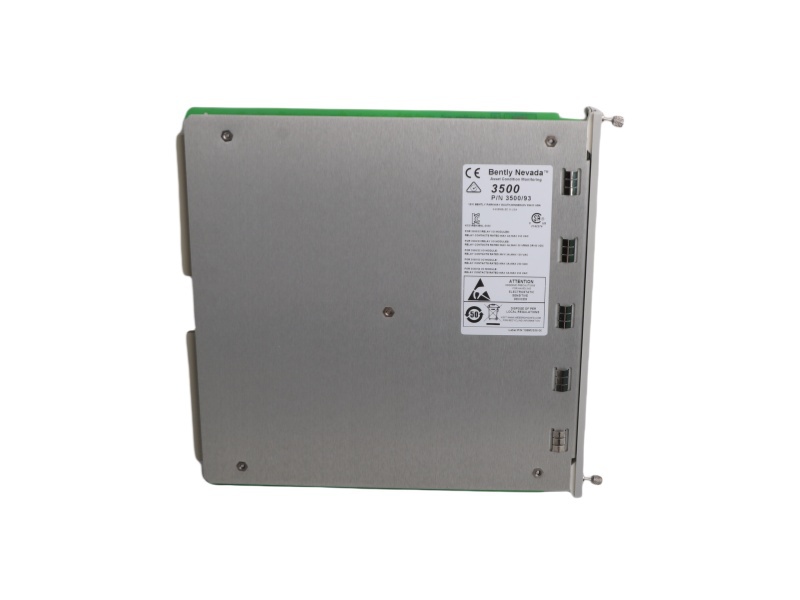

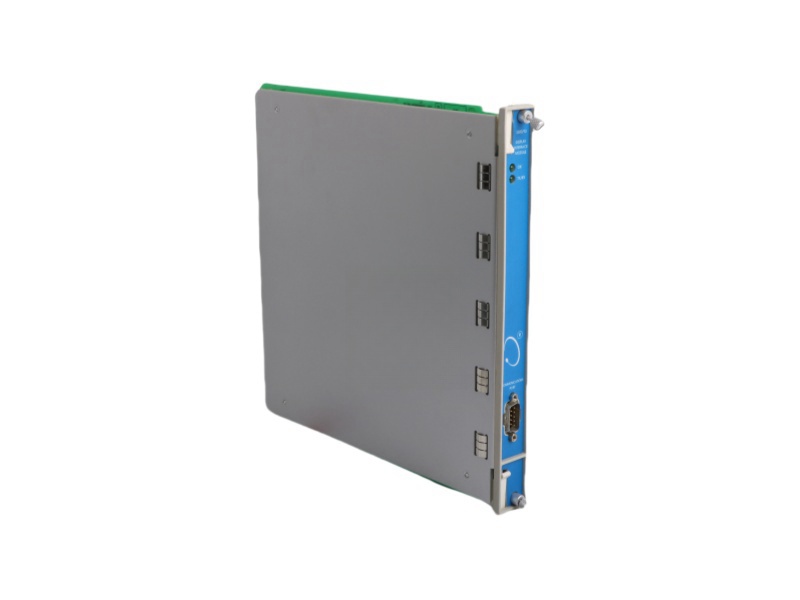

3500/93 135799-01 Product datasheet
|
Model number: |
3500/93 135799-01 |
|
Module Type： |
Display Interface Module |
|
Manufacture: |
Bently Nevada |
|
Condition： |
Brand New |
|
Range of Product: |
3500 system |
|
Lead time： |
In Stock |
|
Weight: |
0.8kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.5x25.2x24cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
TSI |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
3500/93 135799-01 Functional Description
The Bentley Nevada 3500/93 135799-01 Display Interface Module is a state-of-the-art solution for seamless integration into complex industrial control systems. It features an intuitive graphical user interface, enabling operators to easily monitor and manage processes with high precision and efficiency.
With a 4.3″ WVGA touchscreen, the 3500/93 135799-01 Display Interface Module offers crystal-clear visualizations of critical system data, enhancing the decision-making process. Its compatibility with Windows, Linux, and macOS platforms ensures flexible operation across diverse industrial environments, providing a versatile solution for any control system.
This display interface module supports both Ethernet and RS-485 communication protocols, ensuring reliable data exchange between system components. This robust communication capability is essential for maintaining system integrity and responsiveness in demanding industrial applications.
The 3500/93 135799-01 Display Interface Module operates on a 12V DC power supply, making it energy-efficient while remaining durable in harsh environments. With a wide operating temperature range of -20°C to +60°C, and storage range from -40°C to +70°C, it is designed to withstand a variety of environmental conditions.
Compact in design and equipped with advanced security features, the 3500/93 135799-01 integrates easily into existing systems, protecting sensitive data from unauthorized access while ensuring reliable performance.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Bently Nevada |
3500/94M 184826-01 |
Bently Nevada |
3500/90 |
Bently Nevada |
330909-00-60-10-02-05 |
|
Bently Nevada |
3500/94 145988-01 |
Bently Nevada |
3500/77M 140734-07 |
Bently Nevada |
330909-00-60-10-01-05 |
|
Bently Nevada |
3500/94-06-00-01 |
Bently Nevada |
3500/22M 138607-01 |
Bently Nevada |
330907-05-30-10-02-00 |
|
Bently Nevada |
3500/93 135785-01 |
Bently Nevada |
330910-00-11-10-02-05 |
Bently Nevada |
330906-02-12-05-02-05 |
|
Bently Nevada |
3500/93 135799-01 |
Bently Nevada |
330910-00-05-50-02-00 |
Bently Nevada |
330905-14-19-10-02-05 |
|
Bently Nevada |
3500/93 135785-01 |
Bently Nevada |
330910-00-05-10-02-00 |
Bently Nevada |
330905-08-13-10-12-05 |
|
Bently Nevada |
3500/92 136180-01 |
Bently Nevada |
330909-00-99-10-02-00 |
Bently Nevada |
330905-08-13-10-02-05 |
|
Bently Nevada |
3500/92-02-01-00 |
Bently Nevada |
330909-00-80-10-02-05 |
Bently Nevada |
330905-00-10-10-02-CN |
3500/93 Introduction
The 3500/93 System Display is designed to meet the requirements of American Petroleum Institute Standard 670 and provide local or remote visual indication of all 3500 Machinery Protection System information residing in the rack including:
1. System Event List
2. Alarm Event Lists
3. All Channel, Monitor, Relay Module, Keyphasor
Module or Tachometer Module data The 3500/93 System Display is configured using 3500 Rack Configuration Software. The display can be mounted in any of four ways:
1. Face Mounting – display installs directly over the front panel of any full size 3500 rack using a special hinged support. This permits access to the rack’s buffered output connectors and userinterface buttons and switches without disconnecting or disabling the display.
Note: For this mounting option only, the Display Interface Module (DIM) must be installed in slot 15 (right-most slot) of the rack. The Face Mounting option is not compatible with the 3500 Mini-rack.
2. 19-inch EIA Rack Mounting – display is mounted on 19-inch EIA rails and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
3. Panel Mounting – display is mounted in a panel cutout located in the same cabinet or up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
4. Independent Mounting – display is mounted flush against a wall or panel and located up to 100 feet away from the 3500 System. (Up to 4000 feet away from the 3500 System when using the External Power Supply).
