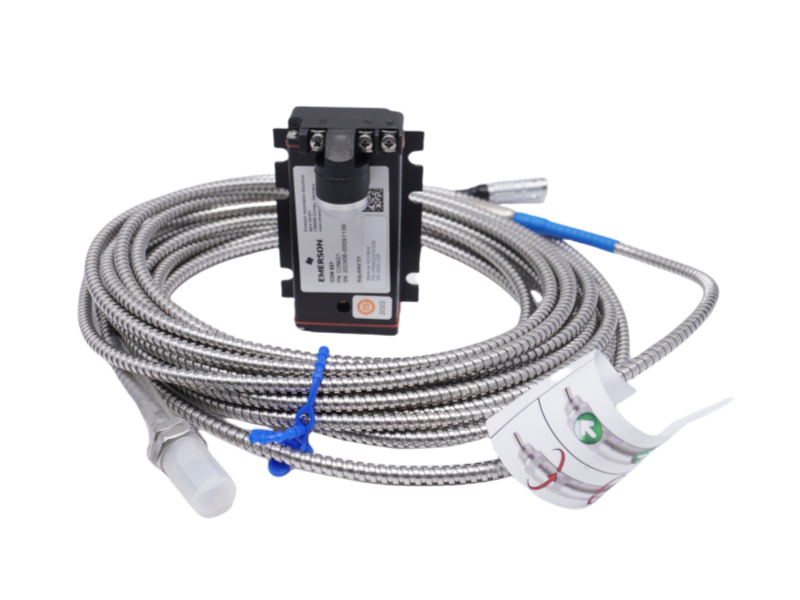

The 8mm Eddy Current Sensor is a high-precision sensing device designed for measuring displacement, position, and proximity of metallic objects. The 8mm Eddy Current Sensor operates based on the principle of eddy current technology, providing highly accurate measurements even in challenging industrial environments. This sensor is ideal for applications requiring high-speed detection and non-contact measurement of conductive materials.

The 8mm Eddy Current Sensor offers excellent temperature stability, minimal drift, and low susceptibility to electromagnetic interference, ensuring reliable performance in demanding conditions. Its small size makes it versatile, allowing for easy integration into tight spaces and compact machinery. The 8mm Eddy Current Sensor is commonly used in industries like automotive, aerospace, and manufacturing for quality control, machinery monitoring, and condition-based maintenance.

Designed for durability, the 8mm Eddy Current Sensor provides long-term reliability with minimal maintenance. Its advanced signal processing capabilities ensure high-resolution outputs, making it an essential tool for precise measurement and monitoring in industrial automation systems.

Linear Measurement Range                                 2 mm (80 mils)

Initial Air Gap                                                    0.5 mm (20 mils)

Incremental Scale Factor (ISF)                            ISO: 8 V/mm (203.2 mV/mil) ± 5%

                                                                       @ temperature range 0 to 45°C (+32 to +113°F)

Deviation from best fit straight line                      ± 0.025 mm (± 1 mil)

                                                                       @ temperature range 0 to 45°C  (+32 to +113°F)

Minimum Shaft Diameter                                    25 mm (0.79”)

Target Material (Ferromagnetic Steel)                  42CrMo4 (AISI/SAE 4140) Standard

Protection Class                                                IP66, IEC 60529

Operating Temperature Range                            Sensor incl. 1m Cable:

                                                                      -35 to +180°C (-31 to 356°F)

                                                                     -35 to +150°C (-31 to 302°F)

Material                                                          Sensor Tip (PEEK Polyether Ether

                                                                      Ketone), Case (Stainless Steel)

                                                                      Cable (PTFE Polytetrafluoroethylene),

                                                                      Connector (Brass, nickel-plated)

Weight (Sensor with 1m Cable)                         Approx. 100 grams (3.53 oz)

Non-contact sensor designed for critical turbomachinery applications such as steam, gas and hydro turbines, compressors, gearboxes, pumps and fans to measure radial and axial shaft dynamic displacement; position, eccentricity and speed.
