DS200LPPAG1A Product datasheet
Model number: |
DS200LPPAG1A |
|
Module Type: |
Line Protection Card |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
Mark V |
|
Lead time: |
In Stock |
Weight: |
0.14 kg |
|
HS CODE: |
8537101190 |
Dimension: |
17.7x8.8x2.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
DCS |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
DS200LPPAG1A Functional Description
The DS200LPPAG1A is a General Electric (GE) printed circuit board originally developed as part of the Mark V Turbine Control System Series. This series, now considered a legacy product, was designed for controlling and managing steam, wind, and gas turbine systems. Despite being discontinued, the Mark V Series remains notable as one of the last GE product lines to feature Speedtronic control technology. The DS200LPPAG1A, also known as the GE Line Protection Board, represents an enhanced version of the original DS200LPPAG1 PCB, distinguished by its A-rated functional revision.
Hardware Features and Specifications

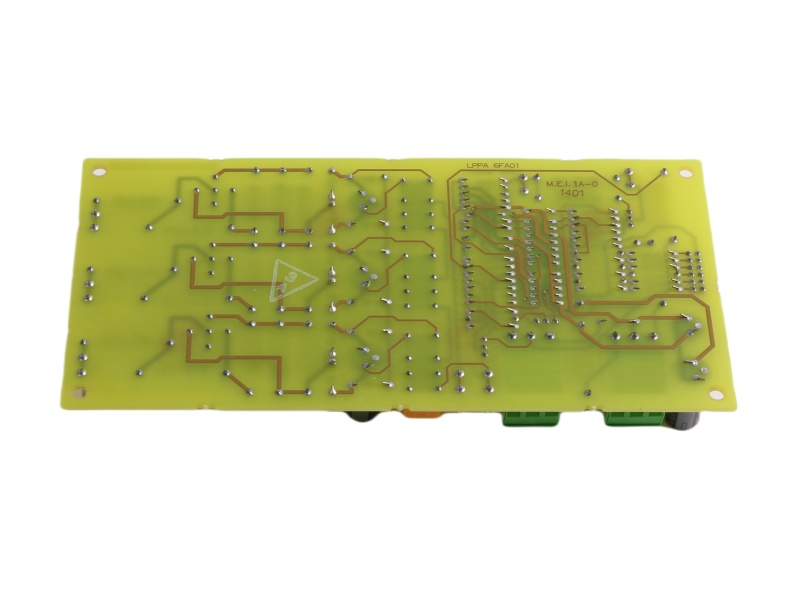

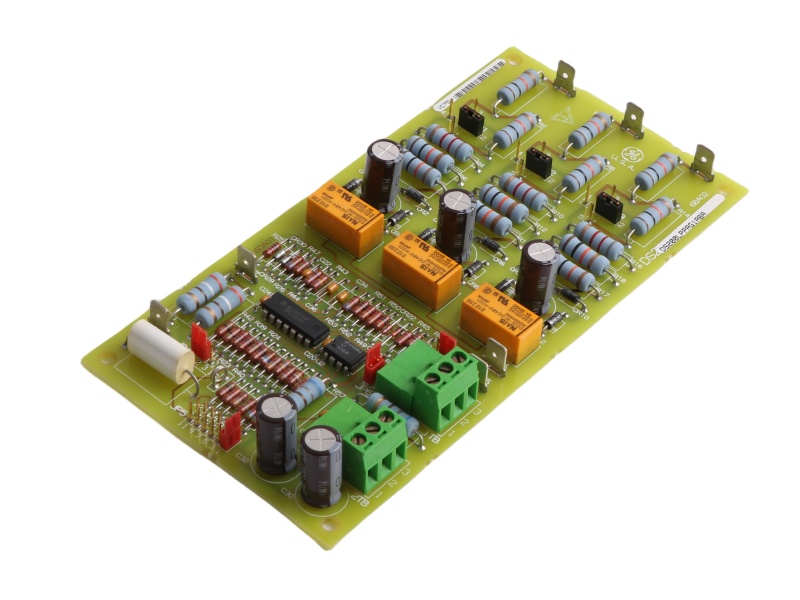

The DS200LPPAG1A integrates several advanced components to ensure reliable performance. It includes seven jumpers (JP1 through JP7) and two terminal blocks, each with three terminals. The board is equipped with test points and features a robust assembly of capacitors, diodes, and integrated circuits to provide voltage protection. Furthermore, the DS200LPPAG1A is coated with a protective layer that safeguards its hardware elements against potential surface voltage damage. Installation holes on the board are ringed with insulated material to enhance durability and safety.
Installation Guidelines
Installing the GE Fanuc DS200LPPAG1A Gas Turbine Controls requires careful handling due to its static-sensitive nature. Begin by removing the component attached to the board as a single unit, following GE’s official instructions. Once detached, place the board on an EDS protective surface, such as a static bag. Use a sharp blade to open the sealed bag, ensuring the blade does not touch the board. Replace the old PCB with the DS200LPPAG1A using the same screws, adhering strictly to the recommended process to avoid damage.
Key Considerations
Before purchasing the DS200LPPAG1A GE Exciter Bridge Interface Board , note that its performance specifications and dimensions may differ from the original DS200LPPAG1 due to the A-rated revision. This enhancement makes the DS200LPPAG1A a reliable choice for extending the lifespan of Mark V Turbine Control Systems while maintaining GE's high standards.
