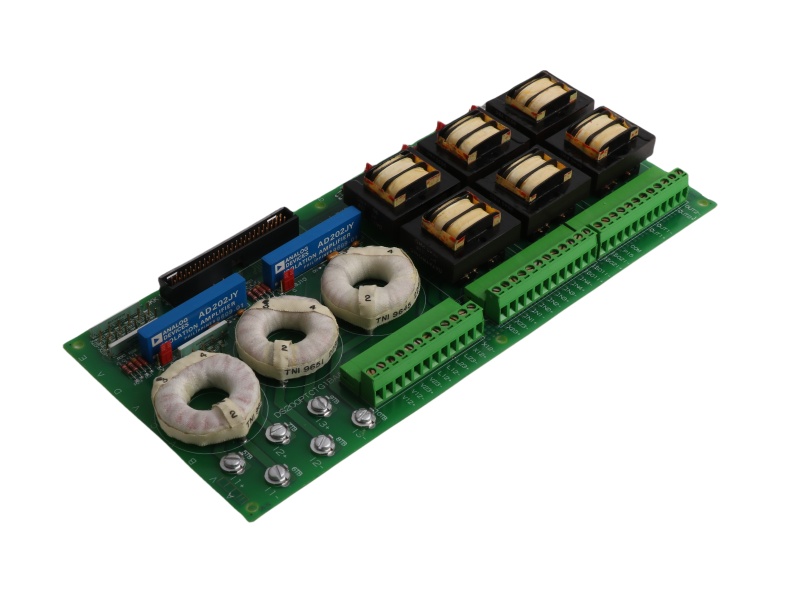

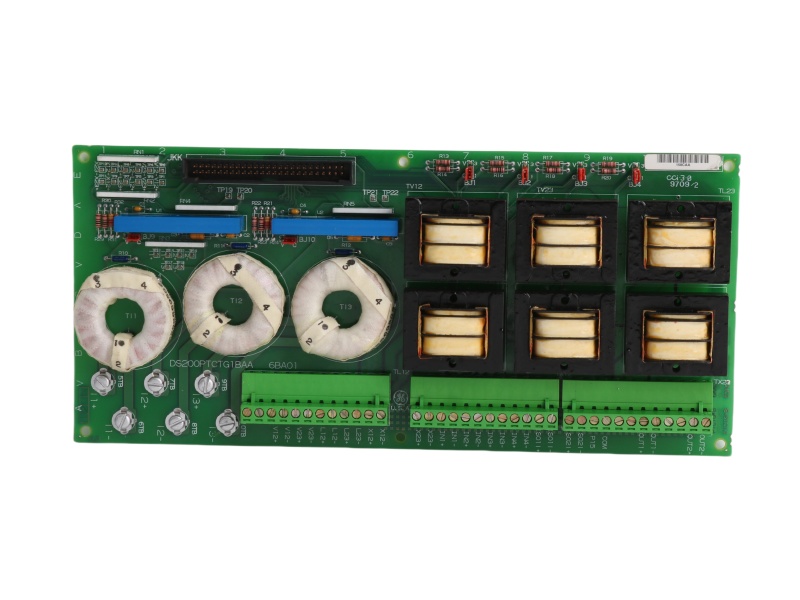

DS200PCTMG1AAA Product datasheet
Model number: |
DS200PCTMG1AAA |
|
Module Type: |
Advanced Drive Board |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
Mark V |
|
Lead time: |
In Stock |
Weight: |
0.34 kg |
|
HS CODE: |
8537101190 |
Dimension: |
28x21.2x2.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
DCS |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
DS200PCTMG1AAA Functional Description
The DS200PCTMG1AAA is an advanced programmable logic controller (PLC) designed by General Electric (GE) as part of their Speedtronic Mark V Series, renowned for its high reliability and performance in industrial automation systems. This controller excels in managing complex tasks with real-time processing capabilities, making it ideal for environments where precision and speed are crucial.
Core Features:
Fast Processing Speed: The DS200PCTMG1AAA Gas Turbine Controls is equipped with a powerful processor, delivering high-speed execution of automation tasks and optimal control over sophisticated industrial processes.
Flexible Architecture: Designed to offer customization, the GE Fanuc DS200PCTMG1AAA features a modular design, making it adaptable to a variety of industrial applications, enhancing versatility in system integration.
Durable Build Quality: The Mark V Series DS200PCTMG1AAA is constructed to endure harsh industrial environments, ensuring long-term durability and dependable performance in challenging conditions.
Comprehensive Diagnostics: This controller incorporates advanced diagnostic tools, facilitating straightforward troubleshooting and minimizing downtime during maintenance procedures.
Expandable System: The DS200PCTMG1AAA is scalable, allowing for easy system expansion to meet increasing operational demands, ensuring flexibility for future upgrades.
DS200PCTMG1AAA Technical Specifications:
Power Supply: 12V DC
Operating Temperature Range: From -40°C to +70°C
Communication Protocol: RS-485
Memory: 64 KB
I/O Channels: 16 Input, 16 Output
Dimensions: 140mm x 145mm x 51mm
Weight: 0.3kg
The DS200PCTMG1AAA Advanced Drive Board is highly suitable for a wide range of industrial processes, including manufacturing and automated machinery control, providing efficient, high-quality automation solutions. Its robust features ensure it remains a trustworthy choice for mission-critical systems.
If you have other request contact our team to get customized service
GE |
DS200LDCCH1ALA |
GE |
DS200FSAAG1A |
GE |
DS200DTBBG1ABB |
GE |
DS200LDCCH1 |
GE |
DS200FCSAG2ACB |
GE |
DS200DSPCH1ADA |
GE |
DS200KLDCG1AAA |
GE |
DS200FCSAG2A |
GE |
DS200DSPCH1ADA |
GE |
DS200KLDCG1A |
GE |
DS200FCSAG1A |
GE |
DS200DMCBG1AJE |
GE |
DS200KLDBG1A |
GE |
DS200FCSAG1ACB |
GE |
DS200DDTBG2ABB |
GE |
DS200KLDBG1ABC |
GE |
DS200FCRRG1AKD |
GE |
DS200CTBAG1ADD |
GE |
DS200GDPAG1A |
GE |
DS200FCGDH1BAA |
GE |
DS200CPCAG1ABB |
GE |
DS200GDPAG1AEB |
GE |
DS200EXPSG1ACB |
GE |
DS200ADMAH1AAC |
GE |
DS2020FECNRX010A |
GE |
DS200DTBDG1ABB |
GE |
DS200ADPBG1ABB |
GE |
DS200FSAAG1ABA |
GE |
DS200DTBCG1AAA |
GE |
DS200ADGIH1AAA |
GE Gas Turbine Control System
The GE Mark VI system is a comprehensive control solution used primarily in power generation and other industrial applications. It controls, protects, and monitors gas and steam turbines, generators, and auxiliary systems.
The SPEEDTRONIC™ Mark VI turbine control is the current state-of-the-art control for GE turbines that have a heritage of more than 30 years of successful operation. It is designed as a complete integrated control, protection, and monitoring system for generator and mechanical drive applications of gas and steam turbines. It is also an ideal platform for integrating all power island and balance-of-plant controls. Hardware and software are designed with close coordination between GE’s turbine design engineering and controls engineering to insure that your control system provides the optimum turbine performance and you receive a true “system” solution. With Mark VI, you receive the benefits of GE’s unmatched experience with an advanced turbine control platform.
The heart of the control system is the Control Module, which is available in either a 13- or 21- slot standard VME card rack. Inputs are received by the Control Module through termination boards with either barrier or box-type terminal blocks and passive signal conditioning. Each I/O card contains a TMS320C32 DSP processor to digitally filter the data before conversion to 32 bit IEEE-854 floating point format. The data is then placed in dual port memory that is accessible by the on-board C32 DSP on one side and the VME bus on the other. In addition to the I/O cards, the Control Module contains an “internal” communication card, a main processor card, and sometimes a flash disk card. Each card takes one slot except for the main processor that takes two slots. Cards are manufactured with surface-mounted technology and conformal coated per IPC-CC830. I/O data is transmitted on the VME backplane between the I/O cards and the VCMI card located in slot 1. The VCMI is used for “internal” communications between:
■ I/O cards that are contained within its card rack
■ I/O cards that may be contained in expansion I/O racks called Interface Modules
■ I/O in backup <P> Protection Modules
■ I/O in other Control Modules used in triple redundant control configurations
■ The main processor card
Triple Redundancy
Mark VI control systems are available in Simplex and Triple Redundant forms for small applications and large integrated systems with control ranging from a single module to many distributed modules. The name Triple Module Redundant (TMR) is derived from the basic architecture with three completely separate and independent Control Modules, power supplies, and IONets. Mark VI is the third generation of triple redundant control systems that were pioneered by GE in 1983. System throughput enables operation of up to nine, 21-slot VME racks of I/O cards at 40 ms including voting the data. Inputs are voted in software in a scheme called Software Implemented Fault Tolerance (SIFT). The VCMI card in each Control Module receives inputs from the Control Module back-plane and other modules via “its own” IONet. Data from the VCMI cards in each of the three Control Modules is then exchanged and voted prior to transmitting the data to the main processor cards for execution of the application software. Output voting is extended to the turbine with three coil servos for control valves and 2 out of 3 relays for critical outputs such as hydraulic trip solenoids. Other forms of output voting are available, including a median select of 4-20ma outputs for process control and 0- 200ma outputs for positioners. Sensor interface for TMR controls can be either single, dual, triple redundant, or combinations of redundancy levels. The TMR architecture supports riding through a single point failure in the electronics and repair of the defective card or module while the process is running. Adding sensor redundancy increases the fault tolerance of the overall “system.” Another TMR feature is the ability to distinguish between field sensor faults and internal electronics faults. Diagnostics continuously monitor the 3 sets of input electronics and alarms any discrepancies between them as an internal fault versus a sensor fault. In addition, all three main processors
continue to execute the correct “voted” input data
