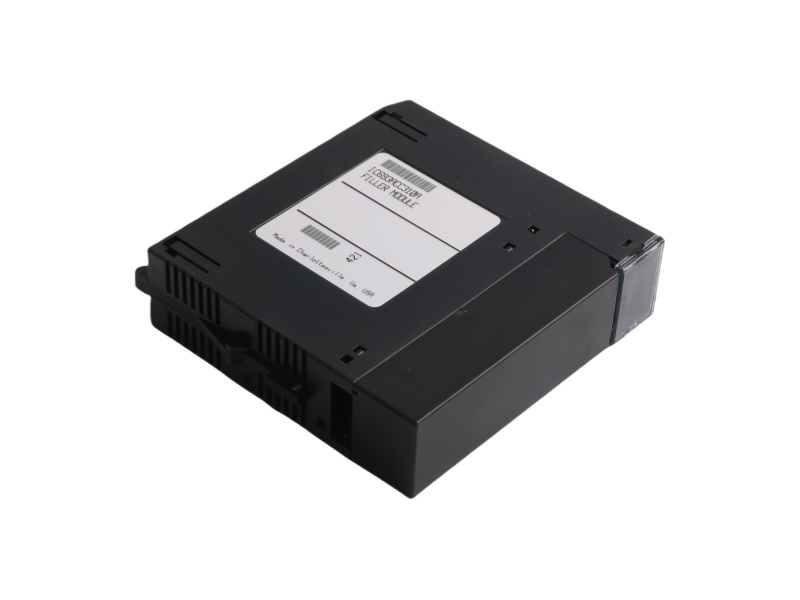

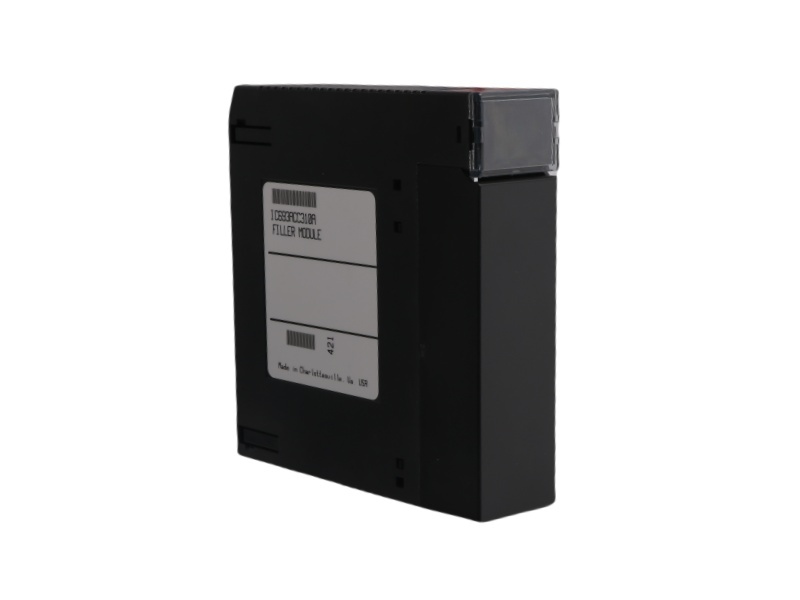

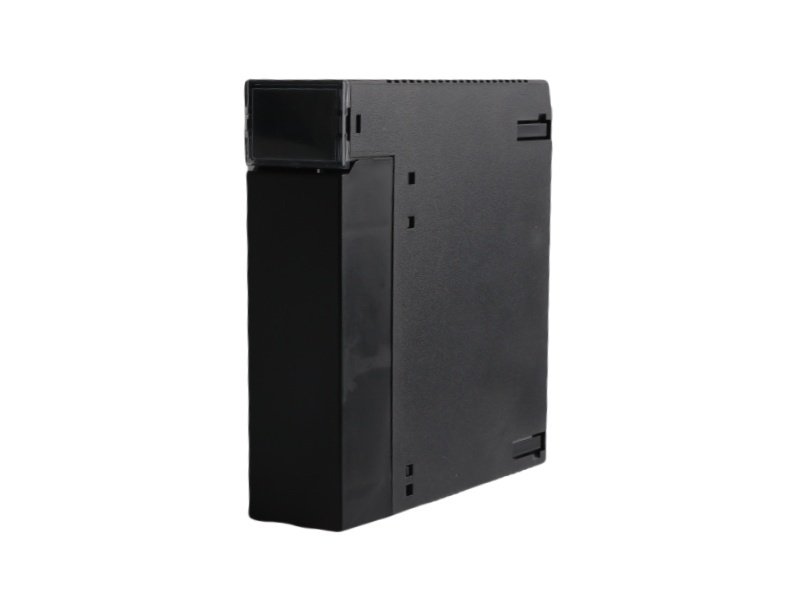

IC693ACC310 Product datasheet
|
Model number: |
IC693ACC310 |
|
Module Type： |
Filler Module |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-30 PLC |
|
Lead time： |
In Stock |
|
Weight: |
0.12kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.5x13x13.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
IC693ACC310 Functional Description
The GE IC693ACC310 Filler Module plays a crucial role in industrial automation systems, offering flexibility and scalability to meet evolving control needs. Designed with precision and high-quality materials, the GE IC693ACC310 ensures reliable operation even in the most demanding industrial environments, providing long-lasting performance.
With its compact size, the GE IC693ACC310 Filler Module maximizes space efficiency in control cabinets or racks, making it an ideal solution for both new installations and system expansions. Its easy integration with a broad range of I/O modules allows for seamless connectivity, supporting the addition of sensors, actuators, and other devices as your automation requirements grow.
The GE IC693ACC310 is engineered to meet the rigorous demands of modern industrial applications. Its compatibility with various automation systems ensures it remains adaptable and future-proof, minimizing the need for frequent upgrades. Backed by GE's commitment to quality and innovation, the GE IC693ACC310 provides peace of mind, knowing that your system's performance and reliability are secure for years to come.
Incorporating the GE IC693ACC310 Filler Module into your control architecture guarantees both efficiency and long-term operational success
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
GE |
IC693ACC310 |
GE |
IS220PPDAH1B |
GE |
IS220PAICH2A |
|
GE |
IC693ACC302 |
GE |
IS220PPDAH1A |
GE |
IS220PAICH1A |
|
GE |
IC676PBO082 |
GE |
IS220PGENH1AE |
GE |
IS230JPDMG1B |
|
GE |
IC693ALG442 |
GE |
IS220PDOAH1B |
GE |
IS220YDOAS1AJ |
|
GE |
IC693ALG391 |
GE |
IS220PDOAH1A |
GE |
IS220YDOAS1A |
|
GE |
IC693ALG222 |
GE |
IS220PDOAH1A |
GE |
IS220YDIAS1AK |
|
GE |
IC676PBI008 |
GE |
IS220PDIAH1AD |
GE |
IS220YDIAS1A |
|
GE |
IC670PBI001 |
GE |
IS220PDIAH1A |
GE |
IS220YAICS1A |
|
GE |
IC670MDL740 |
GE |
IS220PAOCH1BE |
GE |
IS220UCSAH1A |
|
GE |
IC670GBI102 |
GE |
IS220PAOCH1A |
GE |
IS220PVIBH1A |
Series 90-30 PLC Introduction
The Series 90-30 Programmable Logic Controller (PLC) is a member of the GE Fanuc Series 90 PLC family.
The Basic Parts of a Series 90-30 PLC
The Series 90-30 PLC is very versatile because (1) it is programmable, and (2) it is assembled froma wide variety of modular, plug-together components. Therefore, by choosing the correctcomponents and developing an appropriate program, the PLC can be used for an almost unlimitedvariety of applications. Although there are many choices of individual hardware components to usein a system, there are just a few basic categories. Each of these component categories is covered indetail in a separate chapter in this manual. They are introduced inthis chapter so you can see how they fit together:
Baseplates
Power Supplies
CPUs
I/O Modules
Option Modules
Cables
Baseplates
The baseplates are the foundation of the PLC system because most other components mount on them. As a basic minimum, every system has at least one baseplate, which usually contains the CPU (in which case, it is referred to as “the CPU Baseplate”). Many systems require more modules than can be mounted on one baseplate, so there are also Expansion and Remote baseplates that connect together. The three categories of baseplates, CPU, Expansion, and Remote, are available in two sizes, 5-slot and 10-slot, named according to the number of modules they can hold.
Power Supply Modules
Every baseplate must have its own power supply. The power supply always mounts in a baseplate’s left-most slot. There are several power supply models available to meet a variety of requirements.
CPUs
The CPU is the manager of the PLC. Every PLC system must have one. A CPU uses the instructions in its firmware and application program to direct the PLC’s operation and to monitor the system to make sure there are no basic faults. Some Series 90-30 CPUs are built into baseplates, but most are contained in plug-in modules. In some cases, the CPU resides in a Personal Computer using a Personal Computer Interface Card that interfaces to Series 90-30 Input, Output, and Option modules.
Input and Output (I/O) Modules
These modules enable the PLC to interface with input and output field devices such as switches, sensors, relays, and solenoids. They are available in both discrete and analog types.
Option Modules
These modules extend the capability of the PLC beyond the basic functions. These provide such things as communications and networking options, motion control, high speed counting, temperature control, interfacing to operator interface stations, etc.
Cables
These connect the PLC components together or to other systems. Many standard prefabricated cables are available from GE Fanuc.
They are primarily used to:
Interconnect baseplates
Connect a programmer to the CPU or to an option module
Connect option modules to field devices or other systems.
