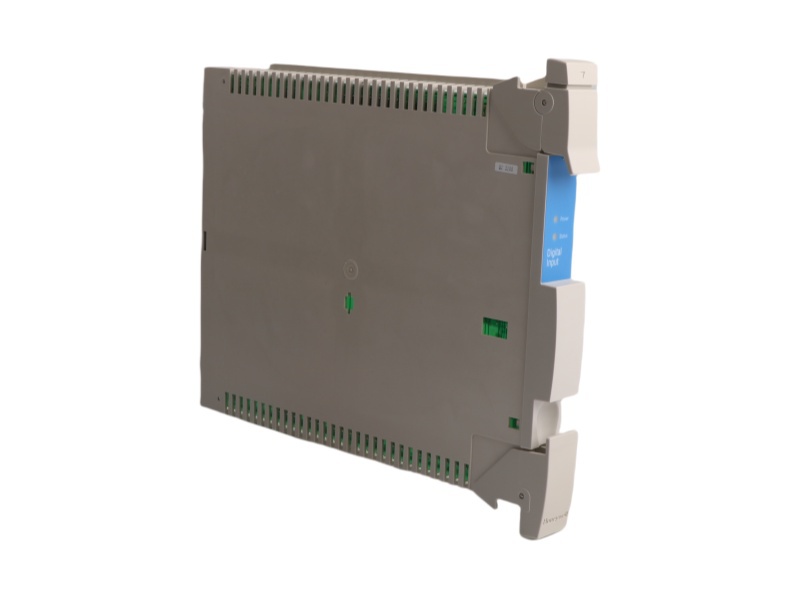

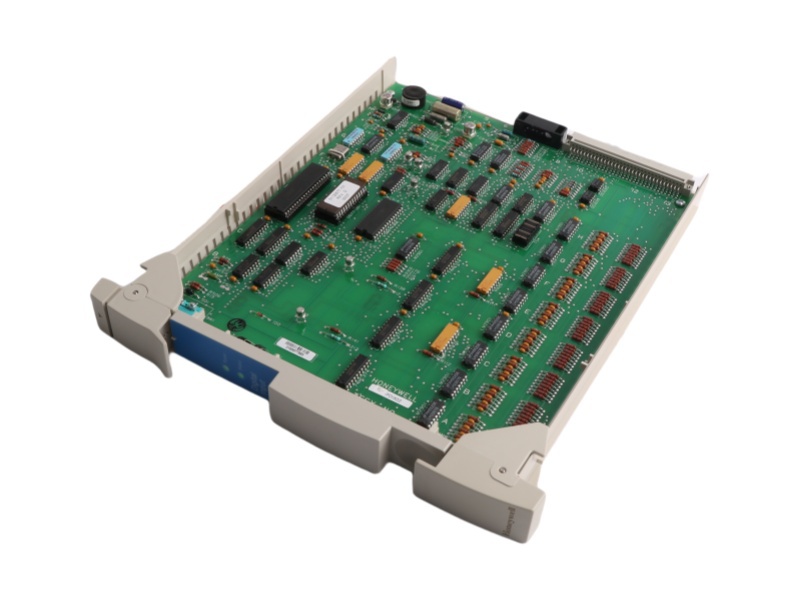

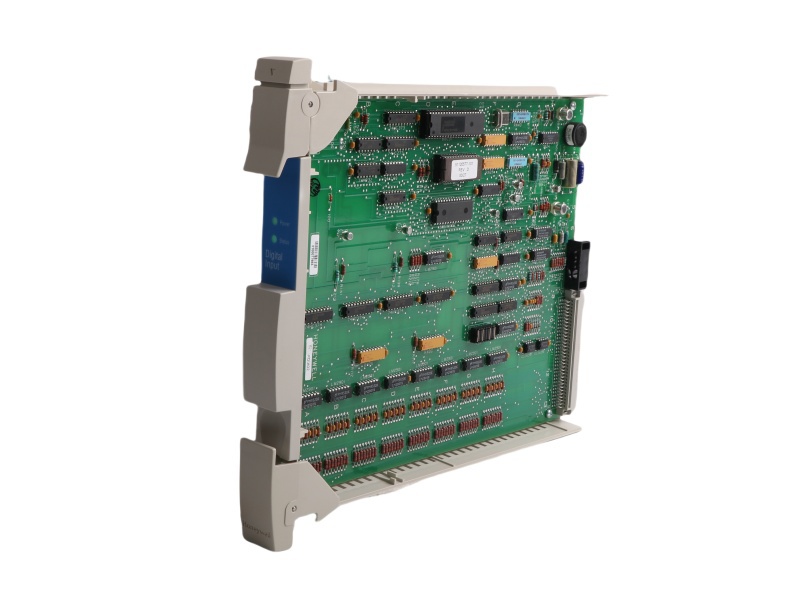

MU-PDIX02 51304485-100 Product datasheet
|
Model number: |
MU-PDIX02 51304485-100 |
|
Module Type： |
Digital Input Processor |
|
Manufacture: |
HONEYWELL |
|
Condition： |
Brand New |
|
Range of Product: |
MU-T Series |
|
Lead time： |
In Stock |
|
Weight: |
0.64kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3x31.8x28cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
MU-PDIX02 51304485-100 Functional Description
The Honeywell MU-PDIX02 51304485-100 Digital Input Processor is a high-performance module designed to meet the demanding requirements of industrial automation. Known for its exceptional accuracy and reliability, the MU-PDIX02 51304485-100 Digital Input Processor excels in real-time data acquisition, ensuring efficient processing of signals from sensors and switches in various manufacturing processes.
With 16 digital inputs, the MU-PDIX02 51304485-100 Digital Input Processor is versatile, supporting applications such as monitoring system functions, process control, and safety interlocks. Its compatibility with analog signals allows for integration across a wide range of industrial equipment, enhancing its flexibility in diverse environments.
Built to endure harsh conditions, the MU-PDIX02 51304485-100 Digital Input Processor operates across a broad temperature range (-40°C to +85°C) and features an IP20 rating, which protects against dust and light splashes, ensuring durability in industrial settings. This makes the module suitable for use in challenging environments without sacrificing performance.
The module also includes an RS-485 communication interface, enabling seamless integration with other industrial control systems and ensuring easy setup through standard protocols. With optimized power consumption (≤ 5W), the MU-PDIX02 51304485-100 Digital Input Processor ensures energy efficiency while maintaining high operational standards. Additionally, its DIN rail mounting capability simplifies installation, enhancing space utilization in control cabinets.
Backed by Honeywell's commitment to quality, the MU-PDIX02 51304485-100 Digital Input Processor is an ideal choice for improving the reliability and efficiency of industrial control systems.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Honeywell |
MU-TSIM12 51303932-426 |
Honeywell |
MU-TAMT03 51309223-125 |
Honeywell |
MC-TSTX13 51309142-175 |
|
Honeywell |
MU-TSIM12 51303932-401 |
Honeywell |
MU-TAMT02 51401491-100 |
Honeywell |
MC-TSTX13 51309142-175 |
|
Honeywell |
MU-TSDM02 51303932-277 |
Honeywell |
MU-TAMR03 51309218-125 |
Honeywell |
MC-TSTX03 51309140-175 |
|
Honeywell |
MU-TPIX12 51304084-100 |
Honeywell |
MU-TAIH12 51304337-100 |
Honeywell |
51304386-150 MC-PPIX02 |
|
Honeywell |
MU-TLPA02 51309204-125 |
Honeywell |
MU-TAIH02 51304453-100 |
Honeywell |
MC-TSIM12 51303932-476 |
|
Honeywell |
MU-TDOR22 51309150-125 |
Honeywell |
MU-PLAM02 51304362-100 |
Honeywell |
MC-TPIX12 51304084-175 |
|
Honeywell |
MU-TDOA13 51304648-100 |
Honeywell |
MU-PDIX02 51304485-100 |
Honeywell |
51304754-150 MC-PAIH03 |
|
Honeywell |
MU-TDID12 51304441-125 |
Honeywell |
MU-PAOX03 51304672-100 |
Honeywell |
MC-TLPA02 51309204-175 |
|
Honeywell |
MU-TAOX12 51304335-100 |
Honeywell |
MU-FOED02 51197564-200 |
Honeywell |
MC-TDOY23 51204166-175 |
|
Honeywell |
MU-TAOX02 51304476-125 |
Honeywell |
MU-KBFT02 80366198-200 |
Honeywell |
MC-TDOY22 51204162-175 |
MU-T Series UPS Introduction
The UPS consists of a battery charger, a large battery, and a chopper to convert the battery’s dc power into quality ac power. The UPS is always on and is always supplying power to its load through the battery that is on a float charge. Should the ac input fail, the UPS continues to serve the load without any changes and it will continue to operate until the battery is discharged, or the ac input to the UPS charger is restored. The capacity of the battery pack is specified by the UPS manufacturer and will provide many hours of backup.
UPS transfer switches
The UPS usually has two transfer switches. A switch on the output of the UPS automatically transfers the loads to plant power in case of failure in the UPS. A second transfer switch to the UPS input charger allows manual transfer to public utility power if there is extended failure of plant power. A UPS with two ac sources provides the means for several backup strategies. The HPM offers additional permutations with its optional redundant Power Supply Modules, dual-feeds, and battery backup. The need for all of this backup redundancy depends on how important it is to have a working control system when plant power is out for an extended period.
FTA
Terminal connectors on the Field Termination Assembly (FTA) provide the connection points for the process control wiring. Fuses, relays, and resistors protect the FTA circuitry, and sense, condition, or operate the connected device. The FTA communicates with an associated IOP, which in turn communicates with the HPMM(s) through the I/O Link Interface.
FTAs types
Standard types of FTAs, as described, interface the field wiring and provide communication with an associated IOP. They are categorized as “standard” because Galvanically Isolated FTAs are also available as described.
