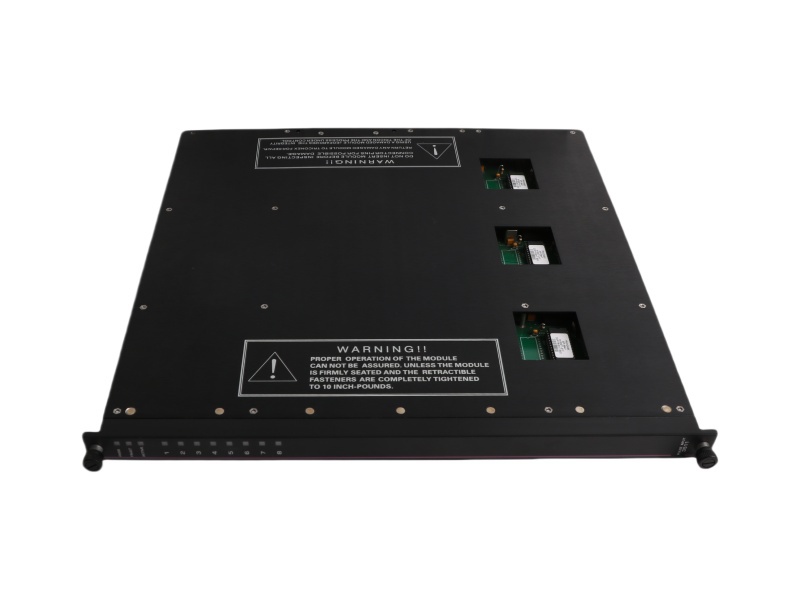

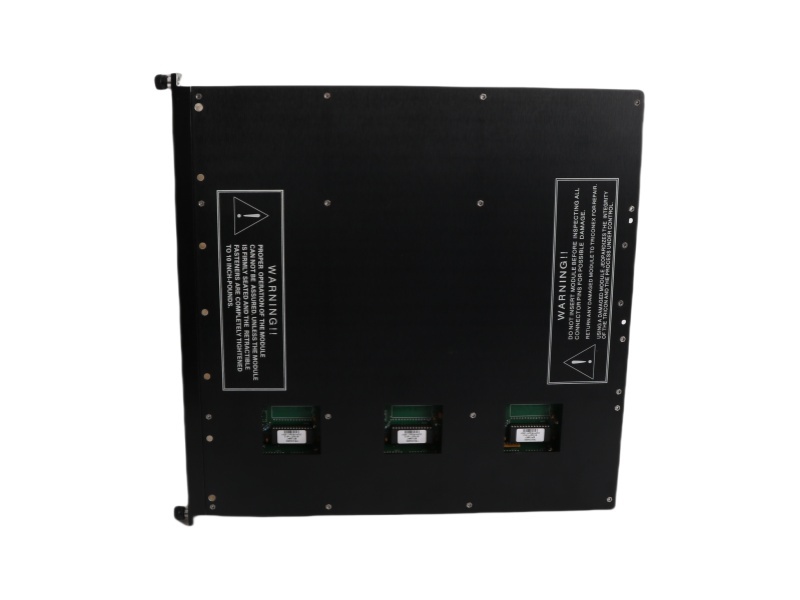

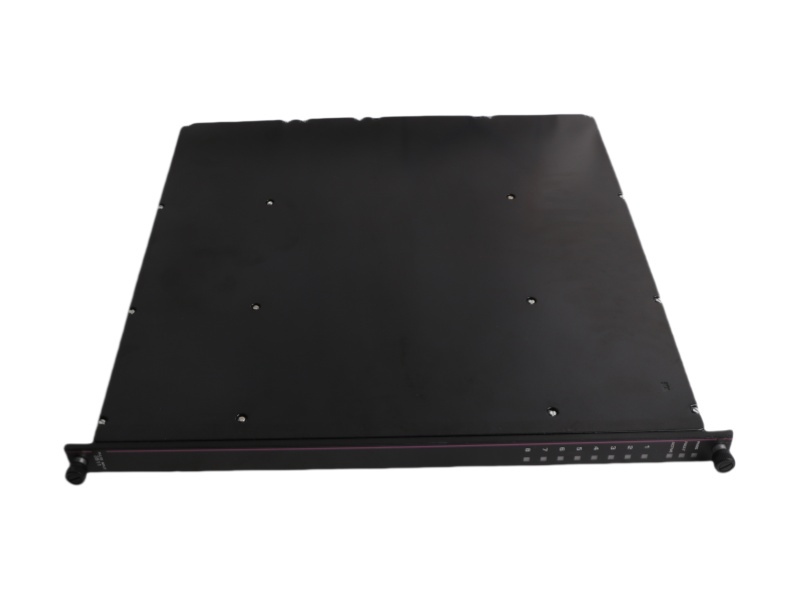

3511 Product datasheet
Model number: |
3511 |
|
Module Type: |
Digital Input Module |
Manufacture: |
Triconex |
|
Condition: |
Brand New |
Range of Product: |
Tricon System |
|
Lead time: |
In Stock |
Weight: |
2.38kg |
|
HS CODE: |
8537101190 |
Dimension: |
2.2x40.8x39.8cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
DCS |
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
3511 Functional Description
If you have other request contact our team to get customized service
Triconex |
3805EN |
Triconex |
3625A |
Triconex |
3008 |
Triconex |
3805E |
Triconex |
3625 |
Triconex |
3006 |
Triconex |
3721 |
Triconex |
3604E |
Triconex |
MP3101 |
Triconex |
3708E |
Triconex |
3601E |
Triconex |
RO3451 |
Triconex |
3706A |
Triconex |
3533E |
Triconex |
HCU3700/3703E |
Triconex |
3703E |
Triconex |
3511 |
Triconex |
EMPII 3006 |
Triconex |
3700A |
Triconex |
3510 |
Triconex |
DO3201 |
Triconex |
3664 |
Triconex |
3503E |
Triconex |
DI3301 |
Triconex |
3636R |
Triconex |
3502EN2 |
Triconex |
CM2201 7400206-100 |
Triconex |
3625N |
Triconex |
3008N |
Triconex |
AI3351 |
Tricon System Introduction
The Tricon is a state-of-the art controller that provides fault tolerance by means of Triple-Modular Redundant (TMR) architecture. TMR integrates three isolated, parallel control systems and extensive diagnostics in one control system. The system uses two-out-ofthree voting to provide high-integrity, error-free, uninterrupted process operation with no single point of failure.
The Tricon controller uses three identical channels. Each channel independently executes the control program in parallel with the other two channels. Specialized hardware/software voting mechanisms qualify and verify all digital inputs and outputs from the field, while analog inputs are subject to a mid-value selection process. Because each channel is isolated from the others, no single-point failure in any channel can pass to another. If a hardware failure does occur on one channel, the other channels override it. Meanwhile the faulting module can easily be removed and replaced while thecontroller is online without interrupting the process. Setting up control programs is simplified with the triplicated Tricon system, because it operates as a single control system from the user’s point of view. The user terminates sensors and actuators at a single wiring terminal andprograms the Tricon with one set of control program logic.
The Tricon controller manages the rest! Extensive diagnostics on each channel, module, and functional circuit immediately detect and report operational faults by means of indicators or alarms.
Pulse Input Module
The pulse input (PI) module provides eight very sensitive, high-frequency inputs. It is optimized for use with nonamplified magnetic speed sensors common on rotating equipment such as turbines or compressors. The module senses voltage transitions from magnetic transducer input devices, accumulating them during a selected window of time (rate measurement). The resulting count is used to generate a frequency or RPM which is transmitted to the main processors. The pulse count is measured to 1 microsecond resolution.
The PI module includes three isolated input channels. Each input channel independently processes all data input to the module and passes the data to the main processors, which vote on the data to ensure the highest integrity Each module provides complete ongoing diagnostics on each channel. Failure of any diagnostic on any channel activates the Fault indicator, which in turn activates the chassis alarm signal. The Fault indicator merely indicates a channel fault, not a module failure. The module is guaranteed to operate properly in the presence of a single fault and may continue to operate properly with certain kinds of multiple faults.
The pulse input module supports hotspare modules.
