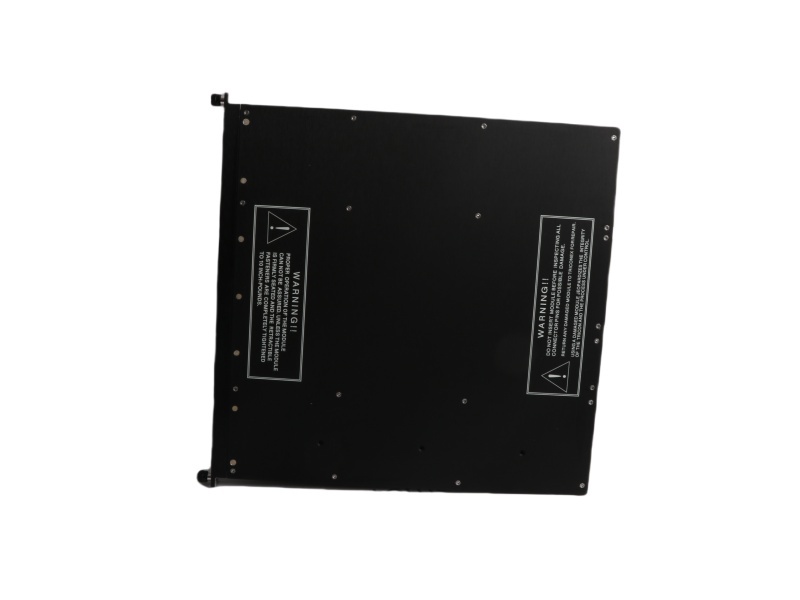

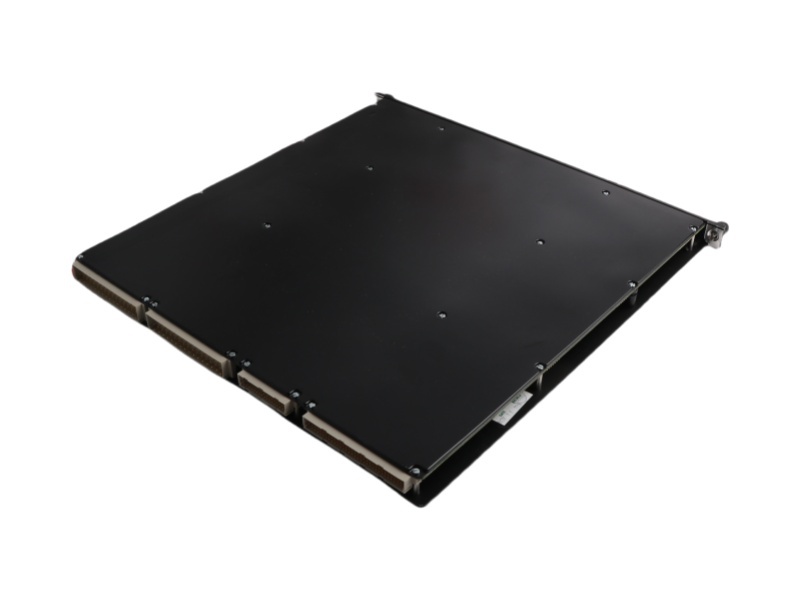

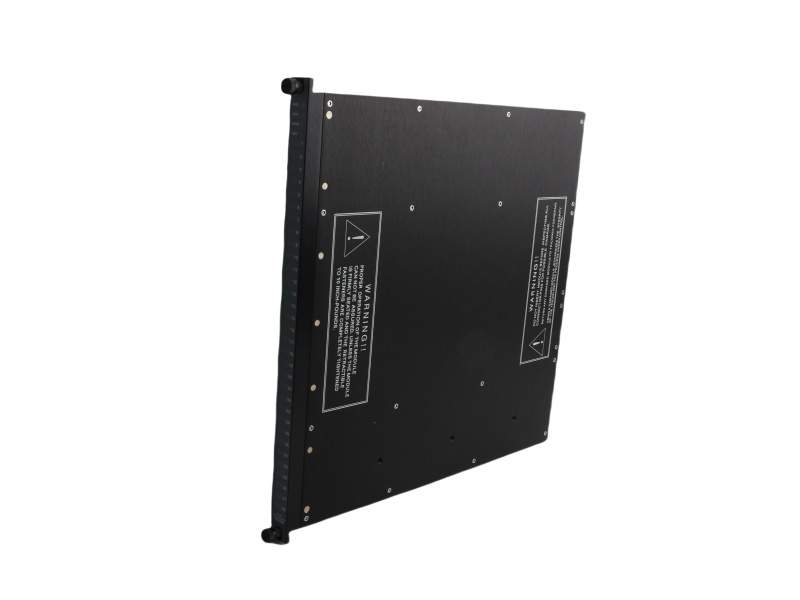

3625N Product datasheet
|
Model number: |
3625N |
|
Module Type： |
Digital Output Module |
|
Manufacture: |
Triconex |
|
Condition： |
Brand New |
|
Range of Product: |
Tricon System |
|
Lead time： |
In Stock |
|
Weight: |
2.04kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.2x40.5x40cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
3625N Functional Description
The Triconex 3625N Output Module is a high-performance solution engineered with cutting edge semiconductor technology, ensuring optimal performance in industrial automation environments. Built to endure extreme conditions, the 3625N Output Module is perfect for use in petrochemical plants, manufacturing facilities, and other sectors where operational reliability is paramount.
Equipped with an advanced microprocessor, the 3625N Digital 24VDC Output Module offers precise control and efficient data processing, helping to optimize system performance while minimizing maintenance needs. The module supports a wide variety of communication protocols, enabling easy integration with existing control systems and enhancing overall system compatibility.
The Power Supply Module 3625N is designed for high-speed operation, ensuring quick response times that reduce downtime in mission-critical applications. Its dual redundant power supplies further increase its resilience, providing stable performance even during power fluctuations.
User-friendly and intuitive, the 3625N TMR Digital Output Modules simplifies setup and configuration, making it easier for operators and technicians to integrate and maintain. In addition, comprehensive training, online resources, and direct technical support are available to ensure seamless deployment and efficient operation of the 3625N Output Module, maximizing its benefits for your industrial processes.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Triconex |
3805EN |
Triconex |
3625A |
Triconex |
3008 |
|
Triconex |
3805E |
Triconex |
3625 |
Triconex |
3006 |
|
Triconex |
3721 |
Triconex |
3604E |
Triconex |
MP3101 |
|
Triconex |
3708E |
Triconex |
3601E |
Triconex |
RO3451 |
|
Triconex |
3706A |
Triconex |
3533E |
Triconex |
HCU3700/3703E |
|
Triconex |
3703E |
Triconex |
3511 |
Triconex |
EMPII 3006 |
|
Triconex |
3700A |
Triconex |
3510 |
Triconex |
DO3201 |
|
Triconex |
3664 |
Triconex |
3503E |
Triconex |
DI3301 |
|
Triconex |
3636R |
Triconex |
3502EN2 |
Triconex |
CM2201 7400206-100 |
|
Triconex |
3625N |
Triconex |
3008N |
Triconex |
AI3351 |
Tricon System Introduction
The Tricon is a state-of-the art controller that provides fault tolerance by means of Triple-Modular Redundant (TMR) architecture. TMR integrates three isolated, parallel control systems and extensive diagnostics in one control system. The system uses two-out-ofthree voting to provide high-integrity, error-free, uninterrupted process operation with no single point of failure.
The Tricon controller uses three identical channels. Each channel independently executes the control program in parallel with the other two channels. Specialized hardware/software voting mechanisms qualify and verify all digital inputs and outputs from the field, while analog inputs are subject to a mid-value selection process. Because each channel is isolated from the others, no single-point failure in any channel can pass to another. If a hardware failure does occur on one channel, the other channels override it. Meanwhile the faulting module can easily be removed and replaced while thecontroller is online without interrupting the process. Setting up control programs is simplified with the triplicated Tricon system, because it operates as a single control system from the user’s point of view. The user terminates sensors and actuators at a single wiring terminal andprograms the Tricon with one set of control program logic.
The Tricon controller manages the rest! Extensive diagnostics on each channel, module, and functional circuit immediately detect and report operational faults by means of indicators or alarms.
Potential Safety Issue
Invensys has reviewed the issue described in this Product Alert Notice and determined that, if no action is taken to resolve the issues described in this notice, there is a potential risk of harm to people, property, and/or the environment. Third-party integrators and distributors of Triconex® systems need to notify their end-user customers of this issue. All end-users should immediately review and analyze the impact of this issue to their applications. If this issue is found to be applicable, remedial actions should be taken to ensure the continued safe operation of affected systems.
Subject: Possible Spurious Output Transitions on the Tricon 3625 24V Digital Output Modules Affected Products
The following modules used in TriconTM system versions 10.2.0-10.2.5, 10.3.0-10.3.3, 10.4.0-10.4.3, and 10.5.0-10.5.2 are affected:
• Model 3625 24V Digital Output Module
• Model 3625A 24V Digital Output Module
• Model 3625N 24V Digital Output Module
