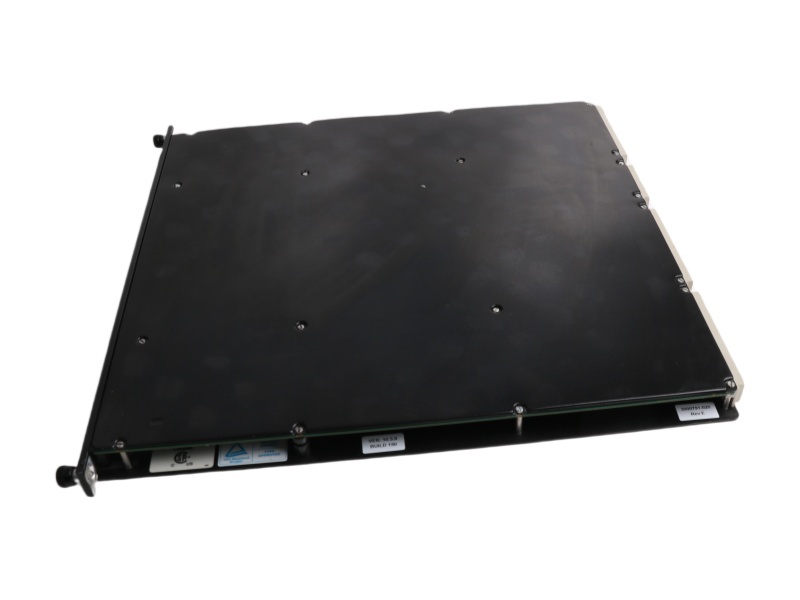

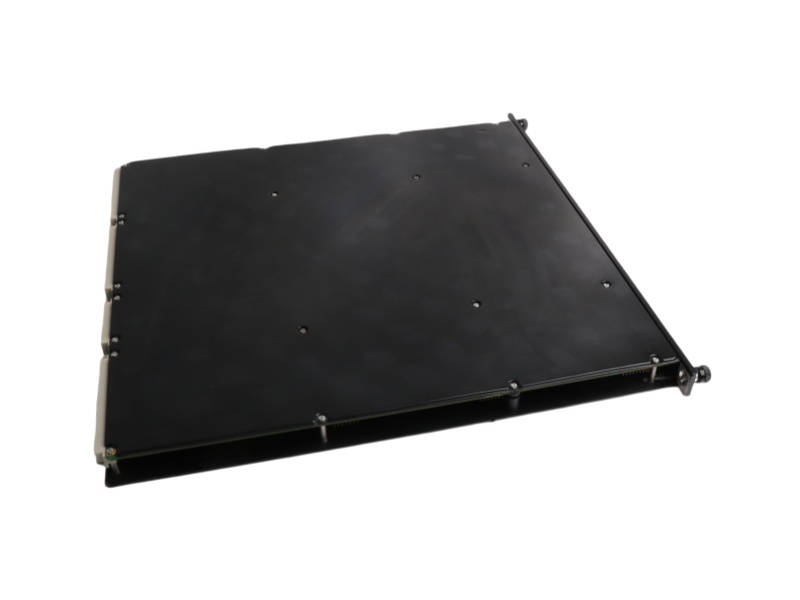

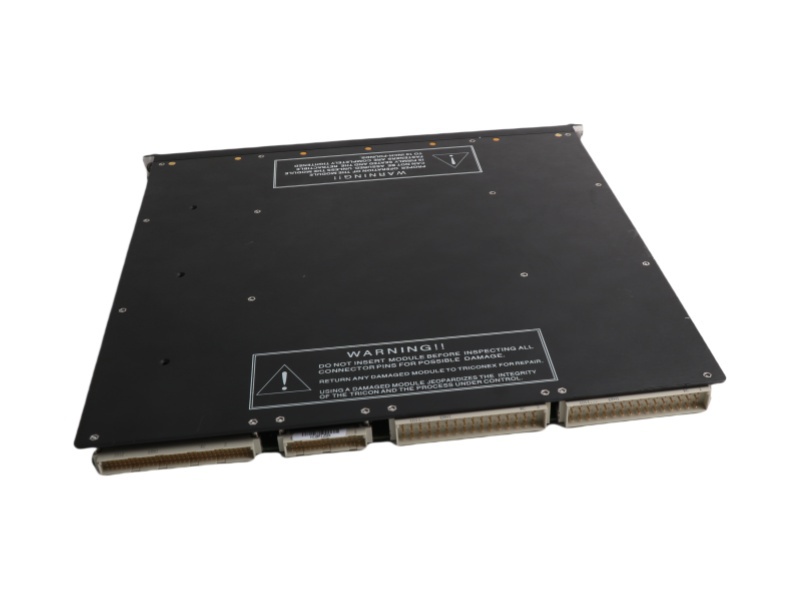

3625A Product datasheet
|
Model number: |
3625A |
|
Module Type： |
Digital Output Module |
|
Manufacture: |
Triconex |
|
Condition： |
Brand New |
|
Range of Product: |
Tricon System |
|
Lead time： |
In Stock |
|
Weight: |
2.04kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.2x40.5x40cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
3625A Functional Description
The TRICONEX 3625A Digital 24VDC Output Module is built with cutting-edge technology to deliver exceptional performance and reliability, even in the most demanding industrial environments. With robust circuitry and comprehensive diagnostics, the 3625A TMR Digital Output Modules ensures seamless operation, adapting to varying conditions and providing consistent performance.
Its modular design makes the 3625A TMR Digital Output Modules highly versatile, supporting a wide range of input/output configurations for easy integration into existing systems. The 3625A 3625A 24VDC Digital I/O Module also uses high-speed communication protocols, ensuring efficient data exchange with other networked devices for optimized operation.
Compact in size and featuring low power consumption, the 3625A 24VDC Digital I/O Module is perfect for installations in space-constrained areas, including remote locations where maintenance is less frequent. It is rigorously tested to withstand extreme temperatures and humidity, ensuring continuous and reliable performance throughout its lifespan.
With a focus on safety, the TRICONEX 3625A complies with IEC 61508 SIL 3 standards, offering enhanced protection against failures and ensuring personnel and asset safety. Built-in fault detection and isolation features minimize downtime, allowing for rapid recovery. Comprehensive support, including documentation and training, is available to ensure you get the most out of the 3625A TMR Digital Output Modules in your industrial applications.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Triconex |
3805EN |
Triconex |
3625A |
Triconex |
3008 |
|
Triconex |
3805E |
Triconex |
3625 |
Triconex |
3006 |
|
Triconex |
3721 |
Triconex |
3604E |
Triconex |
MP3101 |
|
Triconex |
3708E |
Triconex |
3601E |
Triconex |
RO3451 |
|
Triconex |
3706A |
Triconex |
3533E |
Triconex |
HCU3700/3703E |
|
Triconex |
3703E |
Triconex |
3511 |
Triconex |
EMPII 3006 |
|
Triconex |
3700A |
Triconex |
3510 |
Triconex |
DO3201 |
|
Triconex |
3664 |
Triconex |
3503E |
Triconex |
DI3301 |
|
Triconex |
3636R |
Triconex |
3502EN2 |
Triconex |
CM2201 7400206-100 |
|
Triconex |
3625N |
Triconex |
3008N |
Triconex |
AI3351 |
Tricon System Introduction
The Tricon is a state-of-the art controller that provides fault tolerance by means of Triple-Modular Redundant (TMR) architecture. TMR integrates three isolated, parallel control systems and extensive diagnostics in one control system. The system uses two-out-ofthree voting to provide high-integrity, error-free, uninterrupted process operation with no single point of failure.
The Tricon controller uses three identical channels. Each channel independently executes the control program in parallel with the other two channels. Specialized hardware/software voting mechanisms qualify and verify all digital inputs and outputs from the field, while analog inputs are subject to a mid-value selection process. Because each channel is isolated from the others, no single-point failure in any channel can pass to another. If a hardware failure does occur on one channel, the other channels override it. Meanwhile the faulting module can easily be removed and replaced while thecontroller is online without interrupting the process. Setting up control programs is simplified with the triplicated Tricon system, because it operates as a single control system from the user’s point of view. The user terminates sensors and actuators at a single wiring terminal andprograms the Tricon with one set of control program logic.
The Tricon controller manages the rest! Extensive diagnostics on each channel, module, and functional circuit immediately detect and report operational faults by means of indicators or alarms.
Potential Safety Issue
Invensys has reviewed the issue described in this Product Alert Notice and determined that, if no action is taken to resolve the issues described in this notice, there is a potential risk of harm to people, property, and/or the environment. Third-party integrators and distributors of Triconex® systems need to notify their end-user customers of this issue. All end-users should immediately review and analyze the impact of this issue to their applications. If this issue is found to be applicable, remedial actions should be taken to ensure the continued safe operation of affected systems.
Subject: Possible Spurious Output Transitions on the Tricon 3625 24V Digital Output Modules Affected Products
The following modules used in TriconTM system versions 10.2.0-10.2.5, 10.3.0-10.3.3, 10.4.0-10.4.3, and 10.5.0-10.5.2 are affected:
• Model 3625 24V Digital Output Module
• Model 3625A 24V Digital Output Module
• Model 3625N 24V Digital Output Module
