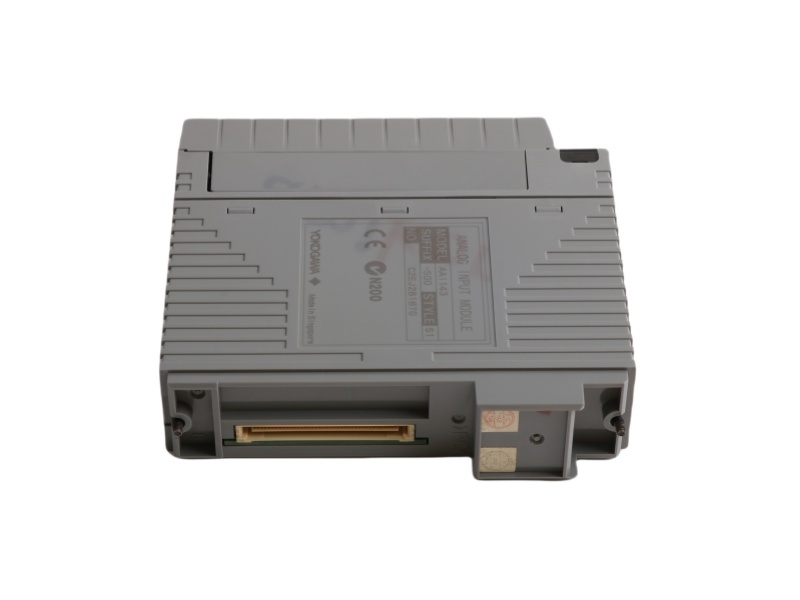

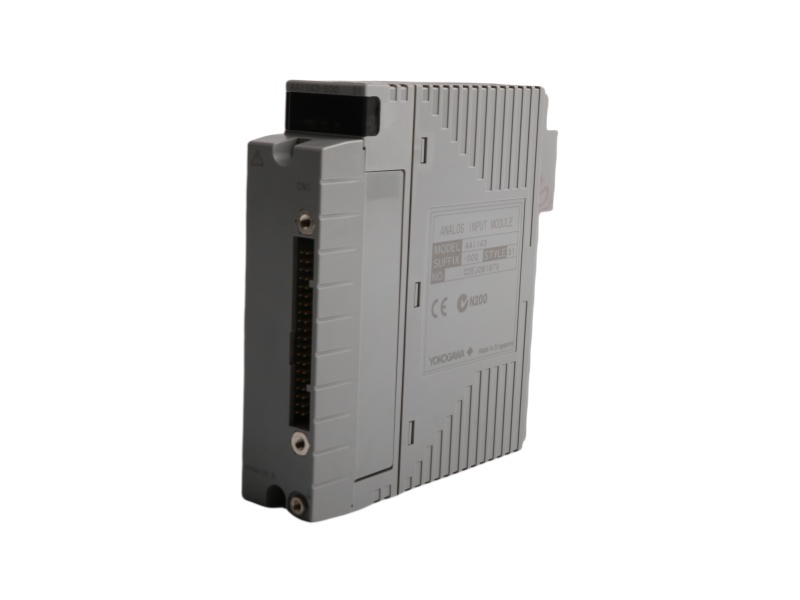

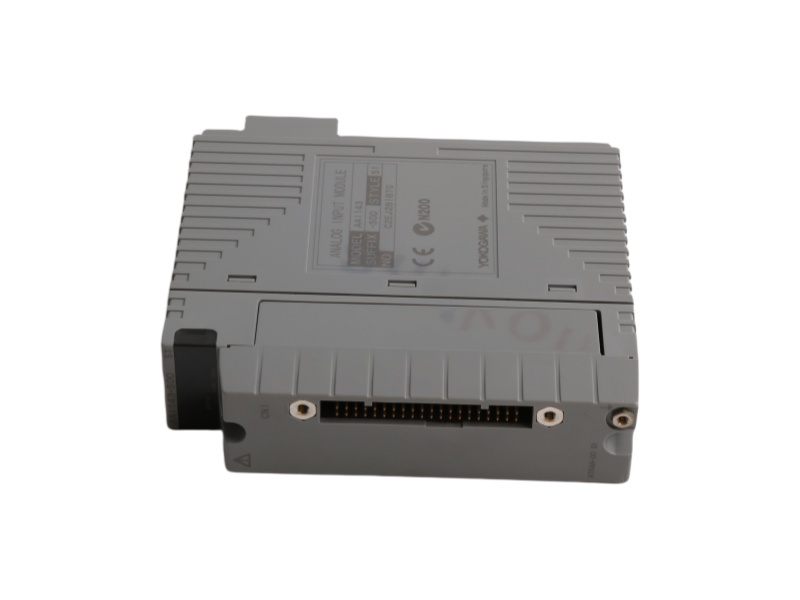

AAI143-S00 S1 Product datasheet
|
Model number: |
AAI143-S00 S1 |
|
Module Type： |
Analog Input Module |
|
Manufacture: |
Yokogawa |
|
Condition： |
Brand New |
|
Range of Product: |
FIO System |
|
Lead time： |
In Stock |
|
Weight: |
0.28kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.2x12.3x13cm |
|
MOQ: |
1 |
|
Product Origin: |
JAPAN |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
AAI143-S00 S1 Functional Description
The Yokogawa AAI143-S00 S1 Analog Input Module is meticulously engineered for industrial automation, offering unmatched accuracy and reliability in data acquisition. Designed to handle a broad range of input voltages, the Yokogawa AAI143-S00 S1 integrates advanced signal conditioning technologies to ensure consistent, high-performance results.
Equipped with robust isolation capabilities, the Yokogawa AAI143-S00 S1 effectively protects against electrical noise and interference, ensuring precise and stable data transmission. This feature makes it ideal for demanding environments where signal integrity is critical.
Built for longevity, the Yokogawa AAI143-S00 S1 is durable enough to withstand the harsh conditions often found in manufacturing plants, power stations, and chemical processing facilities. Its reliable performance in these challenging environments makes it an essential component for industrial control systems.
The Yokogawa AAI143-S00 S1 also features an RS-485 communication interface, enabling easy integration with existing control systems. This enhances both installation simplicity and long-term maintenance efficiency, streamlining operations and reducing downtime.
Trust in Yokogawa’s commitment to quality and innovation by upgrading to the AAI143-S00 S1 Analog Input Module, ensuring optimal performance and reliability for your industrial automation needs.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
