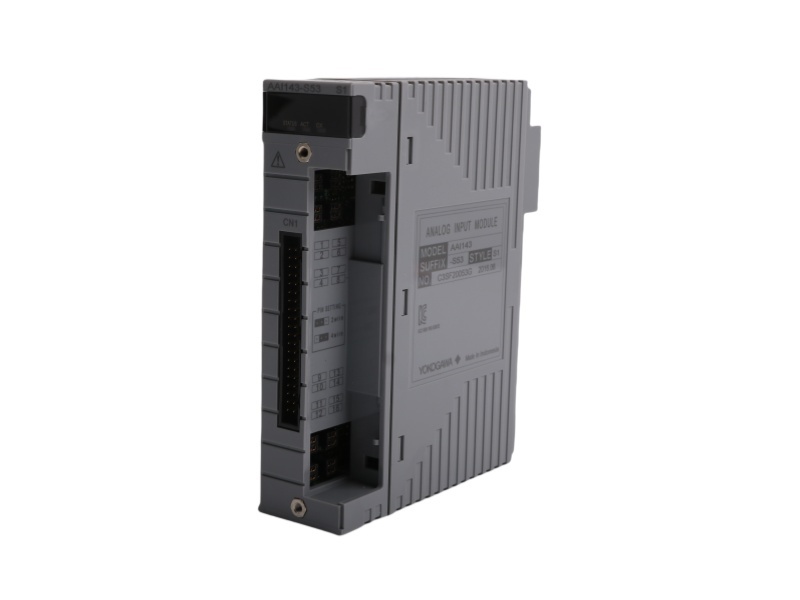

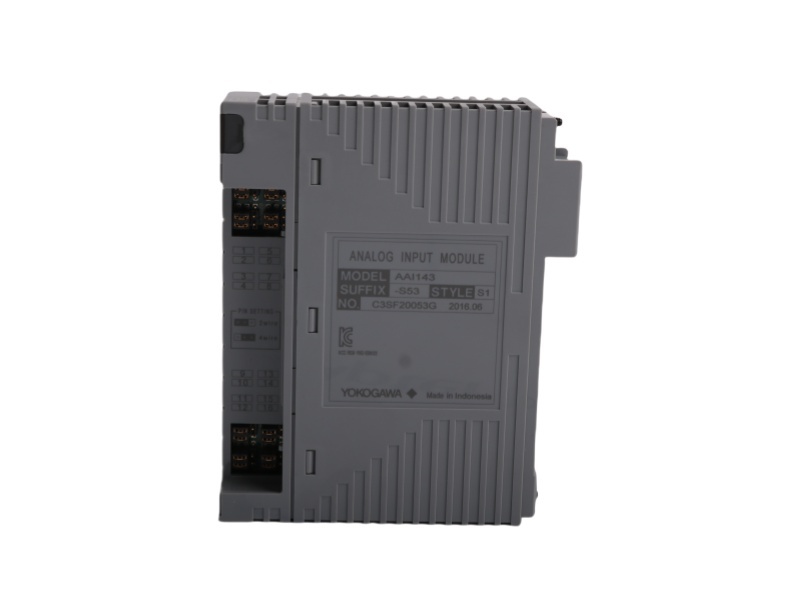

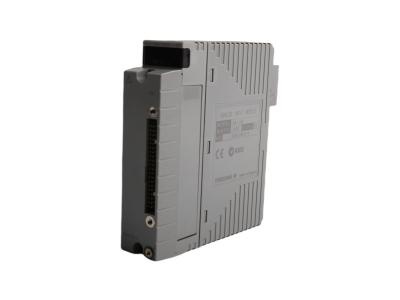

AAI143-S53 S1 Product datasheet
|
Model number: |
AAI143-S53 S1 |
|
Module Type： |
Analog Input Module |
|
Manufacture: |
Yokogawa |
|
Condition： |
Brand New |
|
Range of Product: |
FIO System |
|
Lead time： |
In Stock |
|
Weight: |
0.24kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
3.2x10.6x13cm |
|
MOQ: |
1 |
|
Product Origin: |
JAPAN |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
AAI143-S53 S1 Functional Description
The Yokogawa AAI143-S53 S1 Analog Input Module is precision-engineered to provide high accuracy and reliability for industrial control systems. With 16 isolated channels, this module minimizes interference, ensuring enhanced safety and optimal performance in complex control environments. The Yokogawa AAI143-S53 S1 is equipped with a 4 to 20mA current input capability, making it ideal for seamless integration with a wide variety of sensors and actuators, suitable for diverse industrial applications.
Designed to operate at 220V, the Yokogawa AAI143-S53 S1 is fully compatible with global power supplies, ensuring universal adaptability across different regions and industries. Its advanced technology includes a 50 kHz output frequency, providing fast, precise data transfer essential for real-time monitoring and control.
The Yokogawa AAI143-S53 S1's compact and robust design offers enhanced durability and long service life, minimizing the need for frequent maintenance. With its exceptional performance and versatility, the Yokogawa AAI143-S53 S1 stands as a reliable choice for achieving efficient and safe operations in a variety of industrial settings.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Yokogawa |
AAI841-H03 S1 |
Yokogawa |
AAI143-S53 S1 |
Yokogawa |
AAI135-S50 S3 |
|
Yokogawa |
AAI841-H00 |
Yokogawa |
AAI143-S50 S1 |
Yokogawa |
AAI135-S00 S2 |
|
Yokogawa |
AAI835-S50 S3 |
Yokogawa |
AAI143-S03 S1 |
Yokogawa |
AAI135-H03 S1 |
|
Yokogawa |
AAI835-H03 S1 |
Yokogawa |
AAI143-S00 S1 |
Yokogawa |
AAI135-H00 S1 |
|
Yokogawa |
AAI835-H00 S1 |
Yokogawa |
AAI143-H53 S1 |
Yokogawa |
AAB841 |
|
Yokogawa |
AAI543-S53 S1 |
Yokogawa |
AAI143-H00 S1 |
Yokogawa |
CP461-50 S2 |
|
Yokogawa |
AAI543-S50 S1 |
Yokogawa |
AAI143/543-YG |
Yokogawa |
CP451-10 |
|
Yokogawa |
AAI543-S03 S1 |
Yokogawa |
AAI141-S00 S2 |
Yokogawa |
CP11*C AS S9291AS-0 |
|
Yokogawa |
AAI543-S00 S1 |
Yokogawa |
AAI141-H03 S1 |
Yokogawa |
ATR8S-00 S2 |
|
Yokogawa |
AAI543-H03 S1 |
Yokogawa |
AAI141-H00 S1 |
Yokogawa |
ATK4A-00 S1 |
FIO System Introduction
The FIO (Fieldnetwork I/O) System is connected to the Field Control Unit (FCU) via an ESB, optical ESB, or ER bus.
The Field Control Unit (AFV30/AFV40) is connected to an ESB Bus Node Unit (ANB10) or an Optical ESB Bus Node Unit (ANB11). The Field Control Unit (AFV10) is connected to an ESB Bus Node Unit (ANB10) or an ER Bus Node Unit (ANR10).
A node unit consists of a power supply module, a bus interface module, and input/output modules that are installed in a base unit. The power supply module, bus interface module, and input/output modules can be configured redundantly.
The Unit for Optical ESB Bus Repeater Module (ANT10U) can be used to connect the optical ESB bus in a chain or star configuration.
The I/O Modules include Analog I/O Modules, Digital I/O Modules and Communication Modules. There are several types of Analog I/O Modules, including the isolated channel type, isolated type and non-isolated type.
In addition, to enable replacements from CENTUM V, CENTUM-XL and µXL compatible modules are provided so that the system cable from the Signal Conditioner can be connected to these compatible modules.
For the I/O Modules, the environment-proof support (temperature environment support, G3 support) options can bespecified.
The I/O Module is Explosion Protection product. For details, refer to “Explosion Protection” (TI 33Q01J30-01E).
