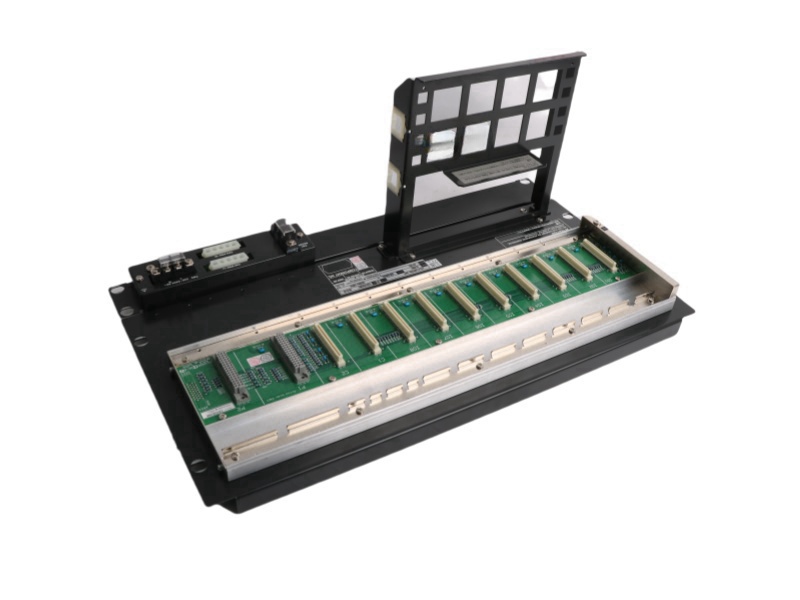

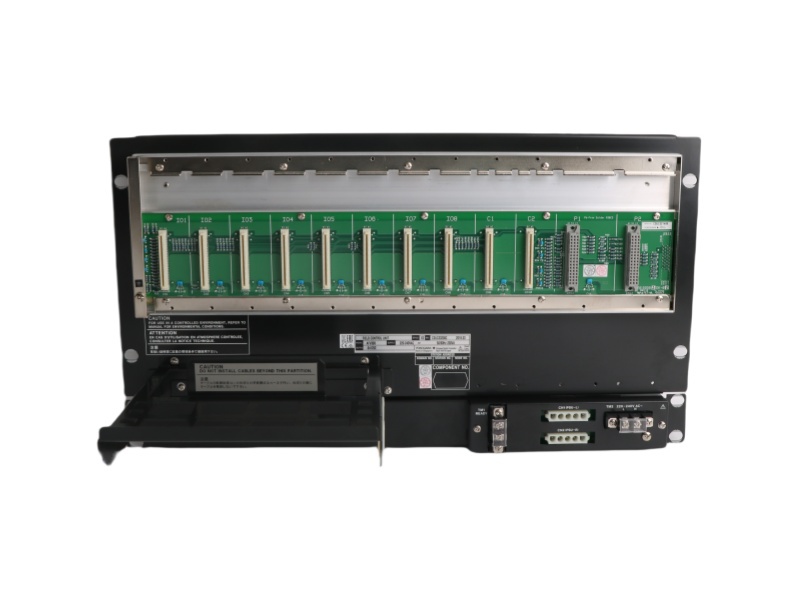

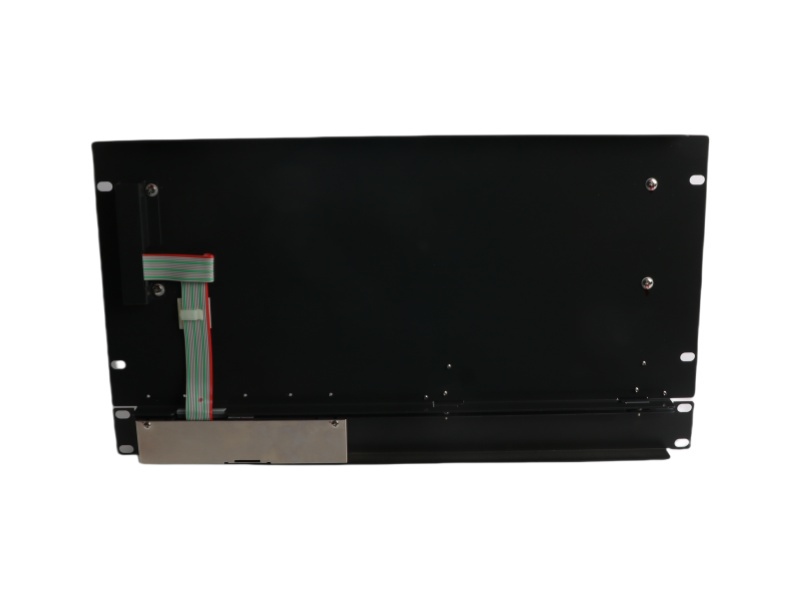

AFV30D S2 Product datasheet
|
Model number: |
AFV30D S2 |
|
Module Type： |
Duplexed Field Control Unit |
|
Manufacture: |
Yokogawa |
|
Condition： |
Brand New |
|
Range of Product: |
CENTUM VP |
|
Lead time： |
In Stock |
|
Weight: |
3.38kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
8.2x26.2x21cm |
|
MOQ: |
1 |
|
Product Origin: |
JAPAN |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
AFV30D S2 Functional Description
The Yokogawa AFV30D-S2 Field Control Unit is engineered with cutting-edge technology to meet the demands of modern industrial applications. Designed for seamless integration, the AFV30D-S2 Field Control Uni offers exceptional performance and compatibility with various communication protocols, ensuring smooth connectivity within your existing infrastructure.
Featuring a sleek, rack-mountable design, the AFV30D-S2 Field Control Unit is ideal for space-constrained industrial environments. Its compact form factor makes it easy to integrate into control rooms or panels, while its durable construction ensures reliable operation even in harsh conditions, providing long-lasting performance in demanding industrial settings.
The AFV30D-S2 Field Control Unit also supports multiple languages on its intuitive display, making it a versatile solution for global operations. This feature enhances user experience, enabling easier communication and control in international or multi-site environments, improving overall productivity and operational efficiency.
Safety and compliance are central to the design of the AFV30D-S2 Field Control Unit, which is UL/CSA and CE certified. These safety standards ensure that the unit meets industry regulations, providing peace of mind and a safer working environment for operators.
With additional options like coating and carbon potential calculation, the AFV30D-S2 Field Control Unit is adaptable to various environmental needs, making it the ideal choice for advanced process control and automation projects in diverse industrial applications.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Yokogawa |
AIP512 |
Yokogawa |
AAI143-S53 S1 |
Yokogawa |
AAI135-S50 S3 |
|
Yokogawa |
AIP502 S1 |
Yokogawa |
AAI143-S50 S1 |
Yokogawa |
AAI135-S00 S2 |
|
Yokogawa |
AFV30D S2 |
Yokogawa |
AAI143-S03 S1 |
Yokogawa |
AAI135-H03 S1 |
|
Yokogawa |
AFV10D S2 |
Yokogawa |
AAI143-S00 S1 |
Yokogawa |
AAI135-H00 S1 |
|
Yokogawa |
ADV561-P11 S1 |
Yokogawa |
AAI143-H53 S1 |
Yokogawa |
AAB841 |
|
Yokogawa |
ALR121-S51 S1 |
Yokogawa |
AAI143-H00 S1 |
Yokogawa |
CP461-50 S2 |
|
Yokogawa |
ALP121-S00 S2 |
Yokogawa |
AAI143/543-YG |
Yokogawa |
CP451-10 |
|
Yokogawa |
AAI543-S03 S1 |
Yokogawa |
AAI141-S00 S2 |
Yokogawa |
CP11*C AS S9291AS-0 |
|
Yokogawa |
AIP562 S1 |
Yokogawa |
AAI141-H03 S1 |
Yokogawa |
ATR8S-00 S2 |
|
Yokogawa |
AIP532 S1 |
Yokogawa |
AAI141-H00 S1 |
Yokogawa |
ATK4A-00 S1 |
CENTUM VP system Introduction
CENTUM VP system consists of various components for operation and monitoring for process control and other equipments. CENTUM VP is composed of and communicates with each of those equipments via Vnet/IP, a real-time process control network and Ethernet.
The I/O Modules include Analog I/O Modules, Digital I/O Modules and Communication Modules. There are several types of Analog I/O Modules, including the isolated channel type, isolated type and non-isolated type.
In addition, to enable replacements from CENTUM V, CENTUM-XL and µXL compatible modules are provided so that the system cable from the Signal Conditioner can be connected to these compatible modules.
For the I/O Modules, the environment-proof support (temperature environment support, G3 support) options can bespecified.
The I/O Module is Explosion Protection product. For details, refer to “Explosion Protection” (TI 33Q01J30-01E).
Field Control Unit (for Vnet/IP and FIO)
FCS performs control computation functions for each function block and input/output functions for process and software inputs/outputs. Field control unit (FCU) is the core of FCS and following units are available.
AFV30S: Field Control Unit (for Vnet/IP and FIO,19-inch Rack Mountable Type)
AFV30D: Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable Type)
AFV40S: Field Control Unit (for Vnet/IP and FIO, with Cabinet)
AFV40D: Duplexed Field Control Unit (for Vnet/IP and FIO, with Cabinet)
AFV10S: Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable Type)
AFV10D: Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable Type)
For more details, refer to GS for AFV30S, AFV30D Field Control Unit, Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable Type) (GS 33K50E10-50E), AFV40S, AFV40D Field Control Unit, Duplexed Field Control Unit (for Vnet/IP and FIO, with Cabinet) (GS 33K50E20-50E) and AFV10S, AFV10D Field Control Unit, Duplexed Field Control Unit (for Vnet/IP and FIO, 19-inch Rack Mountable Type) (GS 33K50E30-50E).
