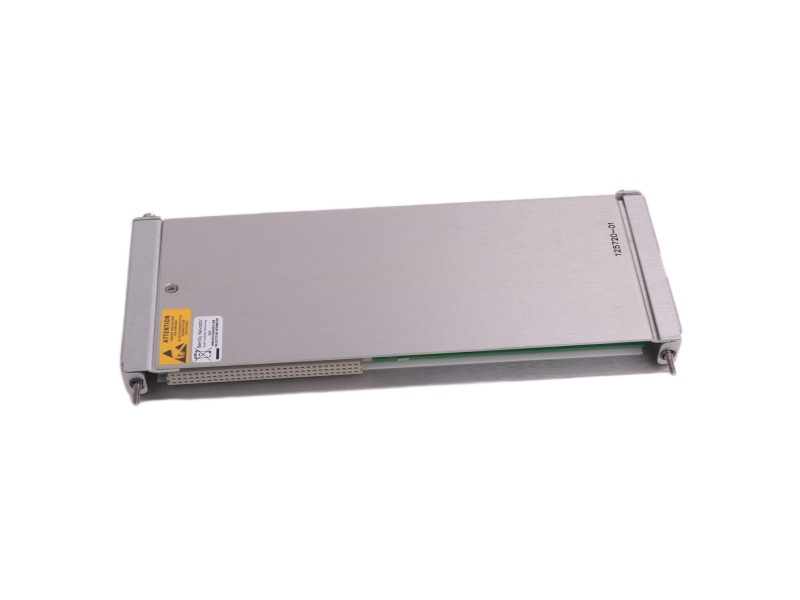

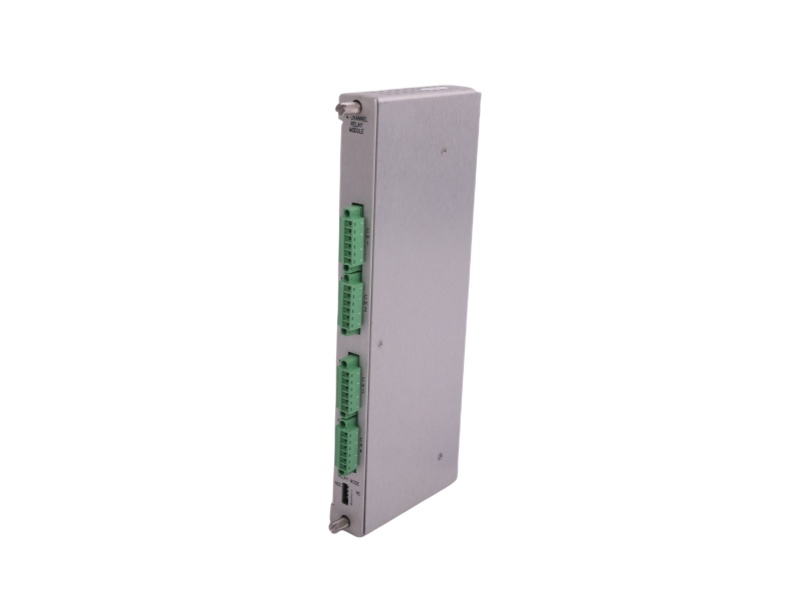

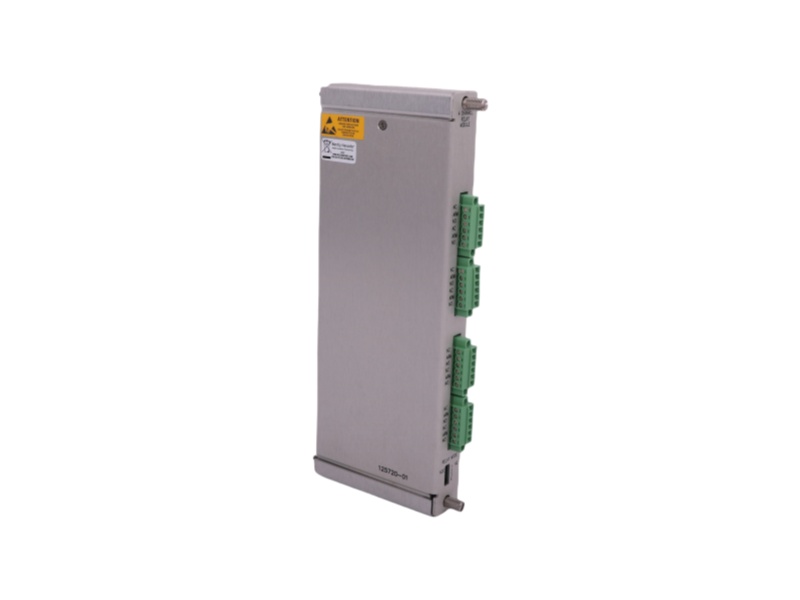

Bently Nevada 125720-01 Relay I/O Module

Inquiry now

125720-01 Product datasheet

Model number:	125720-01	Module Type：	4-Channel Relay Output Module
Manufacture:	Bently Nevada	Condition：	Brand New
Range of Product:	3500 system	Lead time：	In Stock
Weight:	0.5 kg	HS CODE：	8537101190
Dimension:	2.5x11.2x24.2cm	MOQ:	1
Product Origin:	USA	System：	TSI
Discontinued on:	active	Communication Service:	Ethernet router

125720-01 Functional Description

The 125720-01 Relay I/O Module is engineered for exceptional performance in industrial environments, offering four high-quality relay outputs for precise and efficient control. With its compact design, the 125720-01 Spare 4-Channel Relay Output Module provides maximum functionality while maintaining a minimal footprint, making it ideal for space-constrained installations.

Each relay channel in the 125720-01 3500 Series can be individually programmed to execute complex voting logic, enhancing system reliability and ensuring fail-safe operations in critical applications. This modular design allows for seamless scalability and customization, catering to diverse industrial requirements.

Constructed with high-grade materials, the 125720-01 Bently Nevada 3500 monitor is built to withstand harsh industrial conditions, providing long-term reliability with minimal maintenance needs. It integrates effortlessly with Bently Nevada PLC systems, supporting proprietary communication protocols and compatibility with processors such as TDXnet, TDIX, and DDIX for smooth data exchange and interoperability.

Designed for user convenience, the 125720-01 4-Channel Relay Output Module offers intuitive programming options, allowing for quick setup and configuration without sacrificing the advanced features required for modern industrial control systems.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Bently Nevada	128275-01F 130944-01	Bently Nevada	125840-02	Bently Nevada	125680-01
Bently Nevada	128275-01F	Bently Nevada	125840-01	Bently Nevada	106M2686-01 115M7750-01
Bently Nevada	128240-01	Bently Nevada	125800-02	Bently Nevada	106M1081-01
Bently Nevada	128229-01	Bently Nevada	125800-01	Bently Nevada	102244-22-50-01
Bently Nevada	12822901	Bently Nevada	125768-01	Bently Nevada	100M1554
Bently Nevada	128031-01D	Bently Nevada	125760-01	Bently Nevada	10030-05-30-05-02
Bently Nevada	126648-01	Bently Nevada	125736-01	Bently Nevada	10026-02-12-05-02
Bently Nevada	126632-01	Bently Nevada	125720-02	Bently Nevada	300/12
Bently Nevada	126615-01	Bently Nevada	125720-01	Bently Nevada	3500/93 135785-01
Bently Nevada	126599-01	Bently Nevada	125704-01	Bently Nevada	3500/15 129486-01

3500 System Introduction

The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. The system’s modular rack-based design includes the following components:

1.3500/05 Instrument Rack (required)

2.One or two 3500/15 Power Supplies (required)

3.3500/22M Transient Data Interface (TDI) Module (required)

4.One or more 3500/XX Monitor Modules (required)

5.One or more 3500/32M (4-channel) or 3500/33 (16-channel)

3500/32M

The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4- Channel Relay Module can be independently programmed to perform voting logic. Each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic.

Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack. You can program this Alarm Drive to meet your application needs using the 3500 Rack Configuration Software.
