3500 System Introduction

The 3500 System provides continuous, online monitoring suitable for machinery protection applications, and is designed to meet the requirements of the American Petroleum Institute’s API 670 standard for such systems. The system’s modular rack-based design includes the following components:

1.3500/05 Instrument Rack (required)

2.One or two 3500/15 Power Supplies (required)

3.3500/22M Transient Data Interface (TDI) Module (required)

4.One or more 3500/XX Monitor Modules (required)

5.One or more 3500/32M (4-channel) or 3500/33 (16-channel)

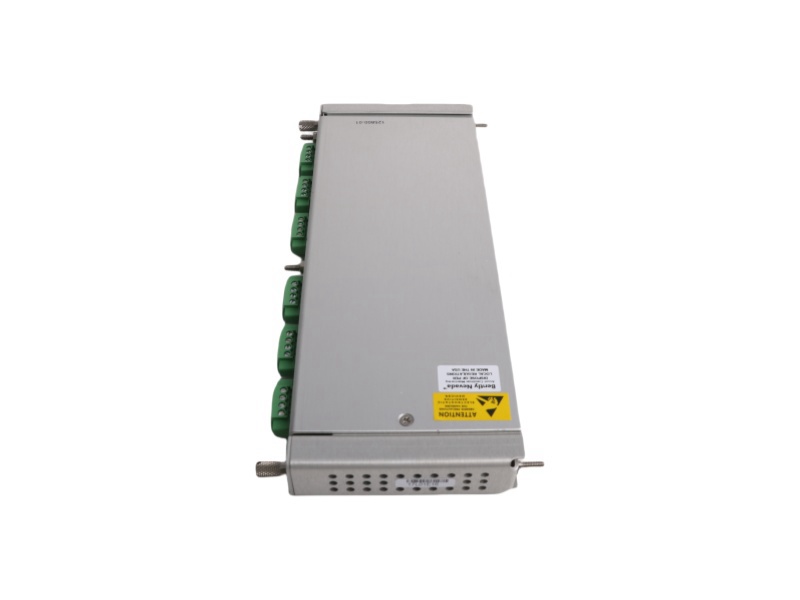

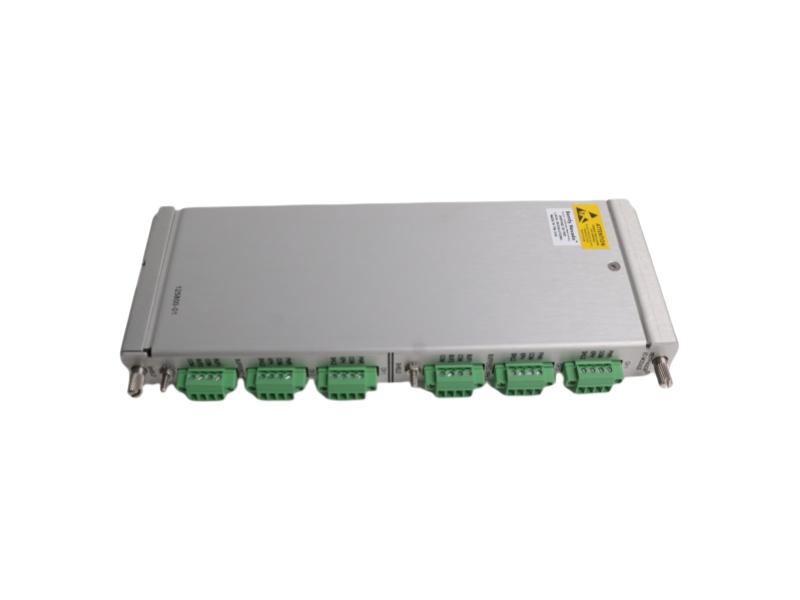

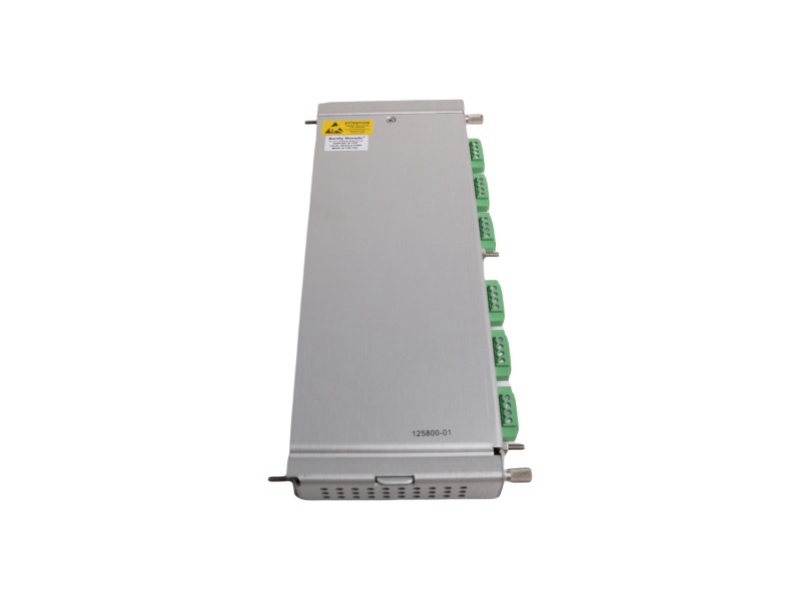

3500/25

The 3500/25 Enhanced Keyphasor Module is a half-height,  two-channel module used to provide Keyphasor signals to the monitor modules in a 3500 rack. The module receives input signals from proximity probes or magnetic pickups and converts the signals to digital Keyphasor signals that indicate when the Keyphasor mark on the shaft coincides with the Keyphasor transducer. The 3500 Machinery Protection NSystem can accept up to four Keyphasor signals for normal configuration and up to eight Keyphasor signals in a paired

configuration.

The Enhanced Keyphasor Module is an improved 3500 system module. It offers expanded Keyphasor signal processing capabilities over the previous design while maintaining complete downward-compatibility in terms of form, fit and function with existing Keyphasor modules for use in legacy systems. The Keyphasor module, PWA 125792-01, is Mcompletely replaced by the updated 149369-01 module.
