3300 XL 8Mm Proximity Transducer System Introduction

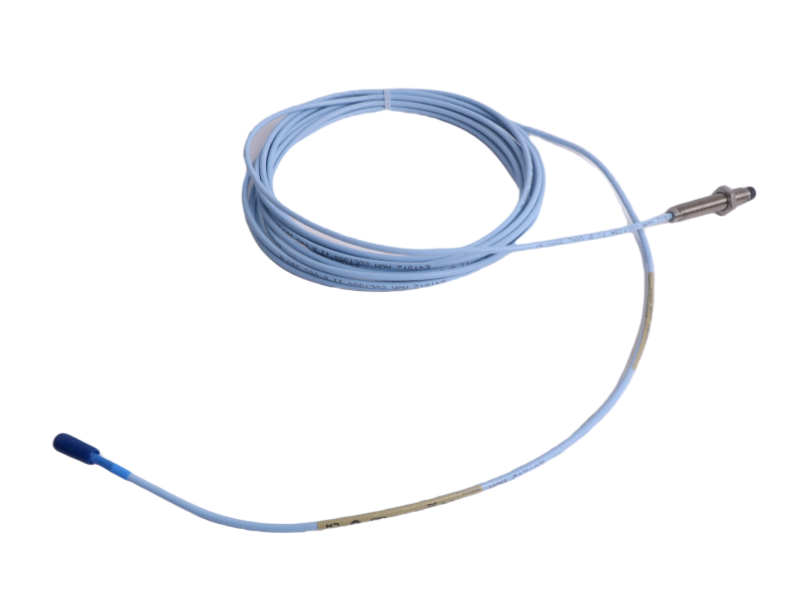

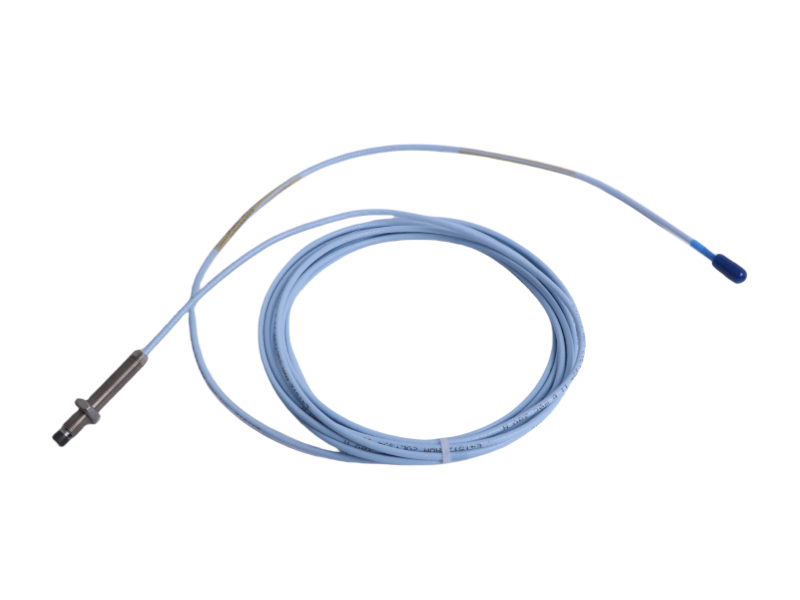

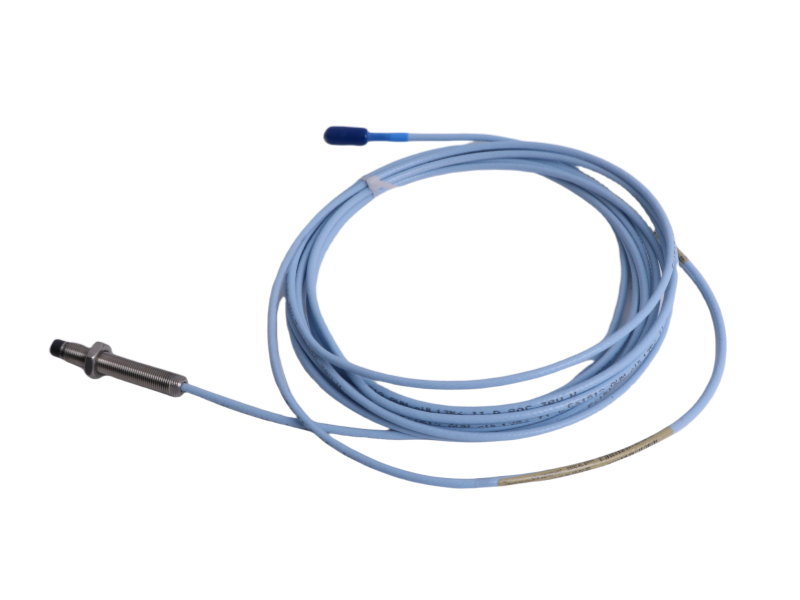

The 3300 XL 8 mm Proximity Transducer System consists of:

One 3300 XL 8 mm probe,

One 3300 XL extension cable.

One 3300 XL Proximitor Sensor.

The system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface and can measure both static (position) and dynamic (vibration) values. The system’s primary applications are vibration and position measurements on fluid-film bearing machines, as well as Keyphasor reference and speed measurements.

The 3300 XL 8 mm system delivers the most advanced performance in our eddy current proximity transducer

systems. The standard 3300 XL 8 mm 5-meter system also fully complies with the American Petroleum Institute’s (API) 670 Standard for mechanical configuration, linear range,accuracy, and temperature stability. All 3300 XL 8 mm proximity transducer systems provide this level of performance and support complete interchangeability of probes, extension cables, and Proximitor sensors, eliminating the need to match or bench calibrate individual components.

Each 3300 XL 8 mm Transducer System component is backward compatible and interchangeable4 with other nonXL 3300 series 5 mm and 8 mm transducer system components5. This compatibility includes the 3300 5 mm probe, for applications in which an 8 mm probe is too large for the available mounting space.

The 3300 XL 8 mm Proximity Transducer System is a high-precision monitoring solution designed to measure vibration and shaft position in industrial machinery. As part of Bently Nevada’s trusted 3300 XL series, the 3300 XL 8 mm Proximity Transducer System provides accurate, reliable data for machinery protection and predictive maintenance.

Built to withstand harsh environments, the 3300 XL 8 mm Proximity Transducer System is engineered for durability, offering exceptional resistance to temperature fluctuations, humidity, and electromagnetic interference. This makes it ideal for use in industries such as power generation, oil and gas, and manufacturing, where continuous machine performance is critical.

The 3300 XL 8 mm Proximity Transducer System integrates seamlessly with Bently Nevada's monitoring equipment, providing real-time, high-precision data to help detect early signs of equipment failure. By using this system, operators can prevent unplanned downtime, reduce repair costs, and improve overall machine health.
