3300 XL 8 mm Proximity Transducer System Introduction

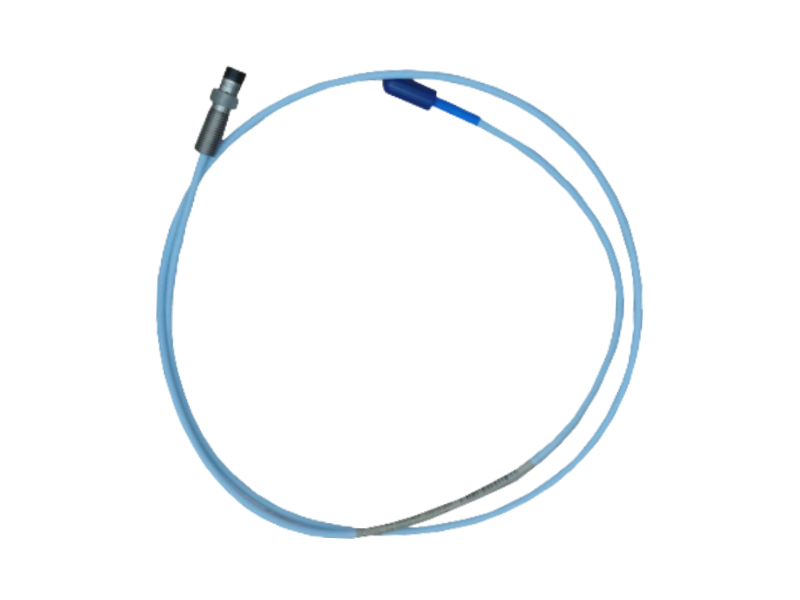

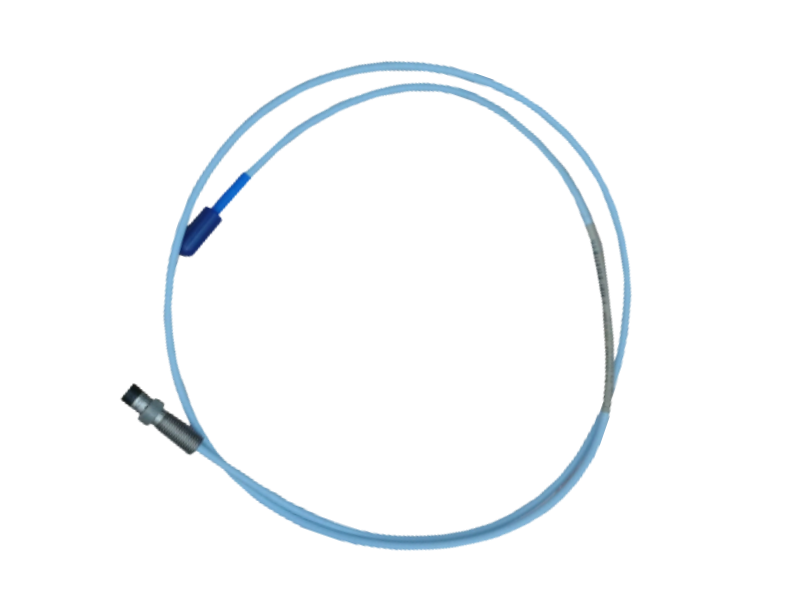

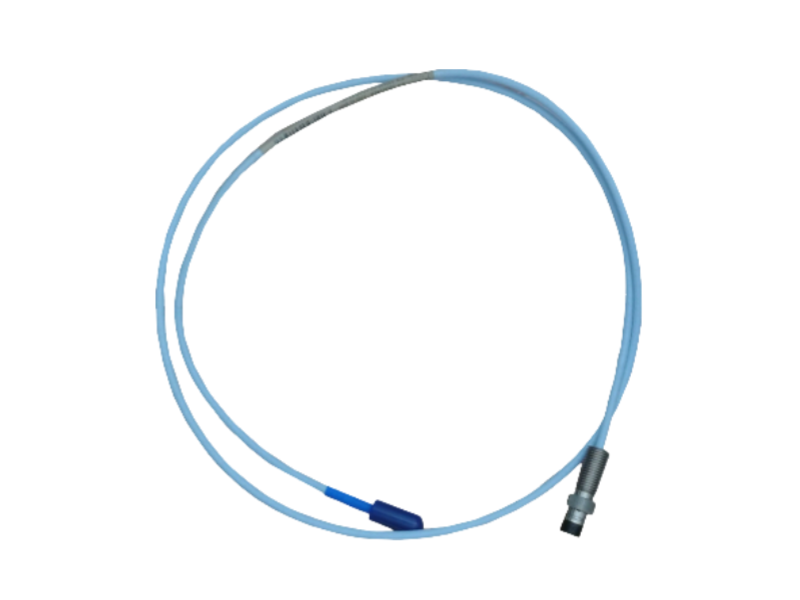

The 3300 XL 8 mm Proximity Transducer System consists of:

3300 XL 8 mm probe, 3300 XL extension cable ，3300 XL Proximitor Sensor.

The 3300 XL Proximitor Sensor incorporates numerous improvements over previous designs. Its physical packaging allows you to use it in high-density DIN-rail installations. You can also mount the sensor in a traditional panel mount configuration, where it shares an identical 4-hole mounting “footprint” with older Proximitor Sensor designs. The mounting base for either option provides electrical isolation and eliminates the need for separate isolator plates. The 3300 XL Proximitor Sensor is highly immune to radio frequency interference, allowing you to install it in fiberglass housings without adverse effects from nearby radio frequency signals. Sensor’s improved RFI/EMI immunity satisfies European CE mark approvals without requiring special shielded conduit or metallic housings,resulting in lower installation costs and complexity.The 3300 XL’s SpringLoc terminal strips require no special installation tools and facilitate faster,more robust field wiring connections by eliminating screw-type clamping mechanisms that can loosen.

Additionally, the 3300 XL 8 mm Proximity Transducer System features design improvements such as the patented TipLoc molding method for a more robust probe tip-body bond, and the CableLoc design, which enhances cable strength for secure attachment. With options like the FluidLoc cable, the system provides even greater reliability by preventing oil and other liquids from leaking through the cable.
