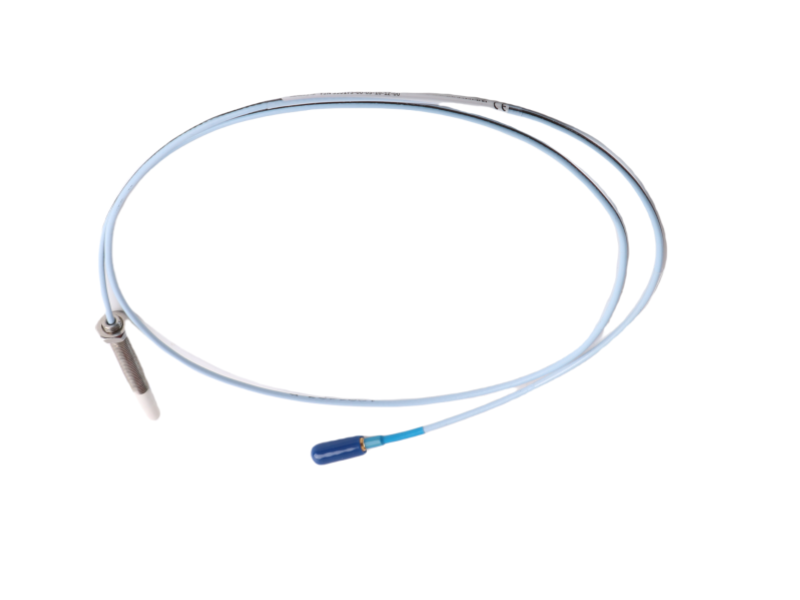

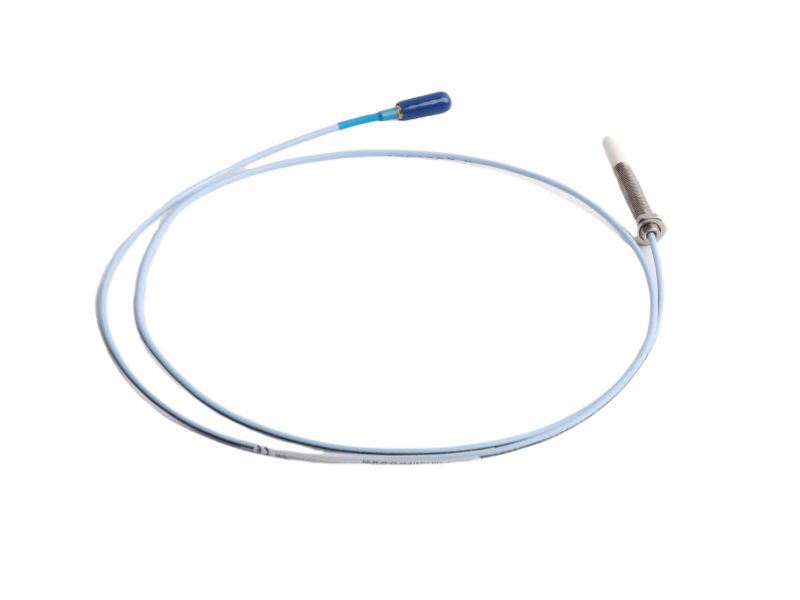

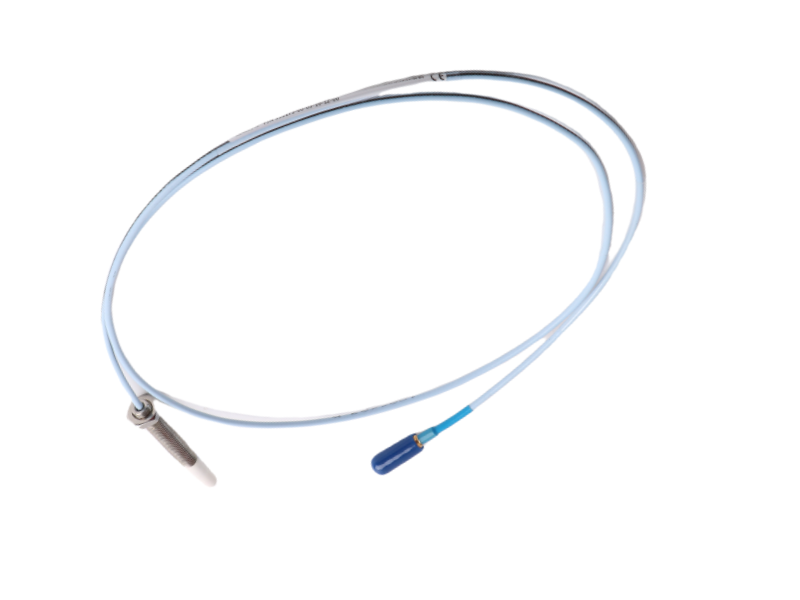

3300 XL 5 mm Proximity Transducer System Introduction

The 3300 5 mm Proximity Transducer System consists of: 3300 5 mm probe，3300 XL extension cable ， 3300 XL Proximitor Sensor

When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip and the observed conductive surface. The system can measure both static (position) and dynamic (vibration) data. Its primary use is in vibration and position measurement applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement applications6.

The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component matching or bench calibration. The 3300 5 mm probe is equipped with a specially engineered locking mechanism that prevents the connectors from loosening, even under harsh conditions. This feature is crucial for maintaining consistent, reliable measurements in demanding environments.

For enhanced environmental protection, the 3300 5 mm probe and XL extension cables can be ordered with connector protectors pre-installed, or they can be supplied separately for on-site installation, especially in situations where the cable must pass through restrictive conduit. These protectors help shield the connectors from environmental elements, ensuring the longevity and integrity of the probe and cable system.Overall, the 3300 5 mm probe delivers robust performance, ease of installation, and superior protection, making it an excellent choice for critical monitoring applications in industries such as power generation, manufacturing, and oil and gas.
