3300 5 mm Transducer System Introduction

The 3300 5 mm Proximity Transducer System consists of:

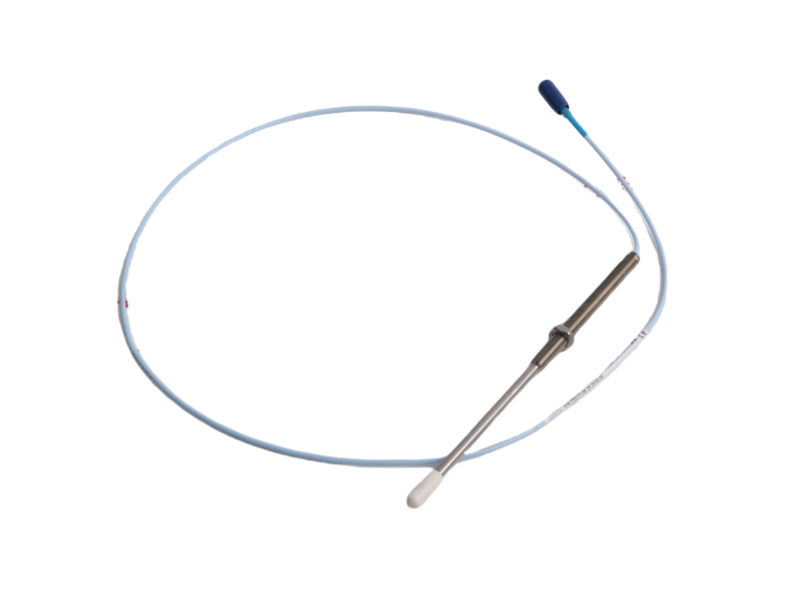

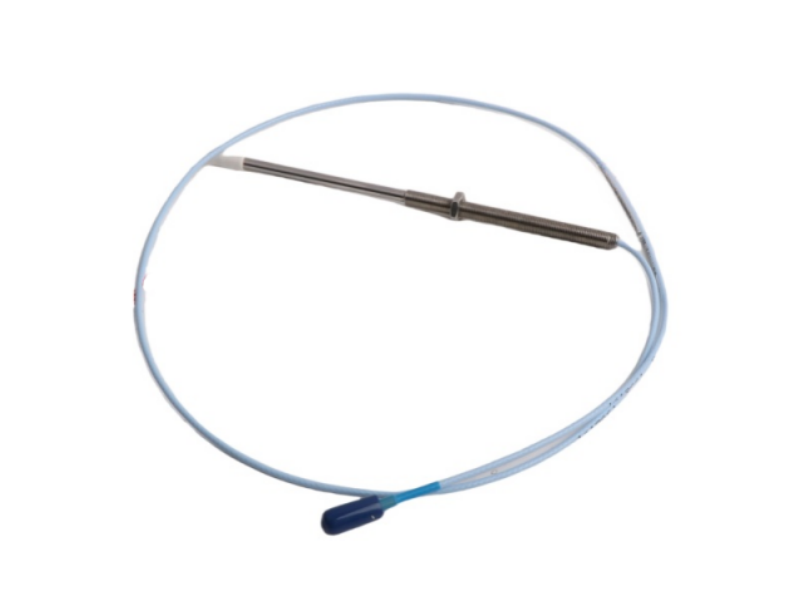

a 3300 5 mm probe

a 3300 XL extension cable

a 3300 XL Proximitor Sensor

When combined with a 3300 XL Proximitor Sensor and XL extension cable, the system provides an output voltage that is directly proportional to the distance between the probe tip

and the observed conductive surface. The system can measure both static (position) and dynamic (vibration) data. Its primary use is in vibration and position measurement

applications on fluid-film bearing machines, as well as Keyphasor measurement and speed measurement applications6.

The system provides an accurate, stable signal output over a wide temperature range. All 3300 XL Proximity Transducer Systems achieve this level of performance with complete interchangeability of probe, extension cable, and Proximitor sensor, eliminating the need for individual component

matching or bench calibration.

The 3300 5 mm probe and 3300 XL extension cable have corrosion-resistant, gold-plated

brass ClickLoc connectors. These connectors require only finger-tight torque (connectors will

"click"), and the specially engineered locking mechanism prevents the connectors from loosening. The connectors require no special tools for installation or removal.3300 5 mm Probes and XL Extension Cables can be ordered with connector protectors already installed, or we can supply the connector protectors separately for installation in the field (such as when the cable must be run through restrictive conduit). We recommend connector protectors for all installations to provide increased environmental protection.
