330876-02-10-00-00 Product datasheet
Model number: |
330876-02-10-00-00 |
|
Module Type: |
Proximity Probe |
Manufacture: |
Bently Nevada |
|
Condition: |
Brand New |
Range of Product: |
3300 series |
|
Lead time: |
In Stock |
Weight: |
0.46kg |
|
HS CODE: |
8537101190 |
Dimension: |
6.4x6.4x117cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
TSI |
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
330876-02-10-00-00 Functional Description
If you have other request contact our team to get customized service
Bently Nevada |
330878-90-00 |
Bently Nevada |
330901-10-25-10-02-00 |
Bently Nevada |
330850-90-CN |
Bently Nevada |
330878-50-00 |
Bently Nevada |
330900-50-00 |
Bently Nevada |
330850-90-05 |
Bently Nevada |
82365-01 |
Bently Nevada |
330851-06-000-070-50-00-05 |
Bently Nevada |
330850-90-00 |
Bently Nevada |
81725-02 |
Bently Nevada |
330851-06-000-070-10-00-05 |
Bently Nevada |
330850-51-CN |
Bently Nevada |
81724-00-08-10-02 |
Bently Nevada |
330851-05-000-040-50-01-05 |
Bently Nevada |
330850-50-05 |
Bently Nevada |
81546-01 |
Bently Nevada |
330851-04-000-023-10-01-05 |
Bently Nevada |
330780-90-00 |
Bently Nevada |
81545-01 |
Bently Nevada |
330851-02-000-070-90-00-05 |
Bently Nevada |
330730-040-00-05 |
Bently Nevada |
81544-01 |
Bently Nevada |
330851-02-000-060-50-00-05 |
Bently Nevada |
330730-080-00-00 |
Bently Nevada |
81305-040-00 |
Bently Nevada |
330851-02-000-060-50-00-00 |
Bently Nevada |
330730-040-01-00 |
Bently Nevada |
76686-040-01 |
Bently Nevada |
330876-02-10-00-00 |
Bently Nevada |
330730-080-00-05 |

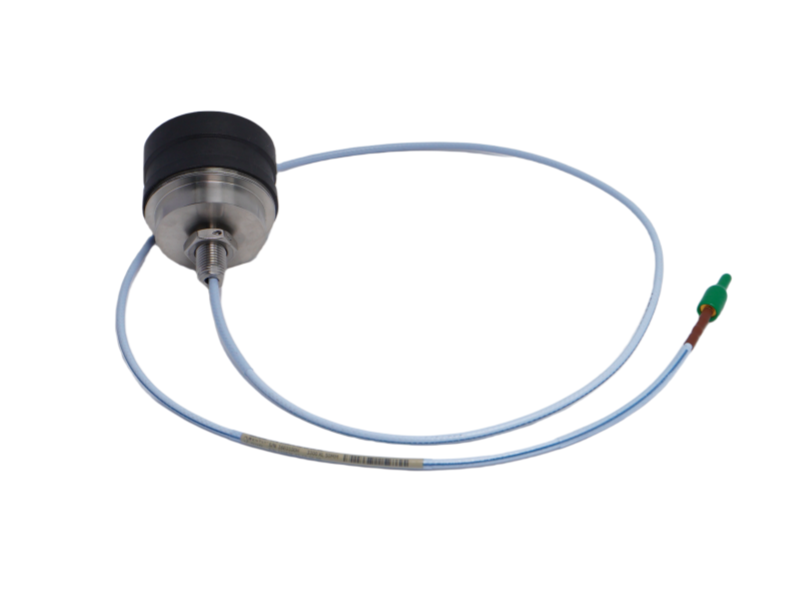

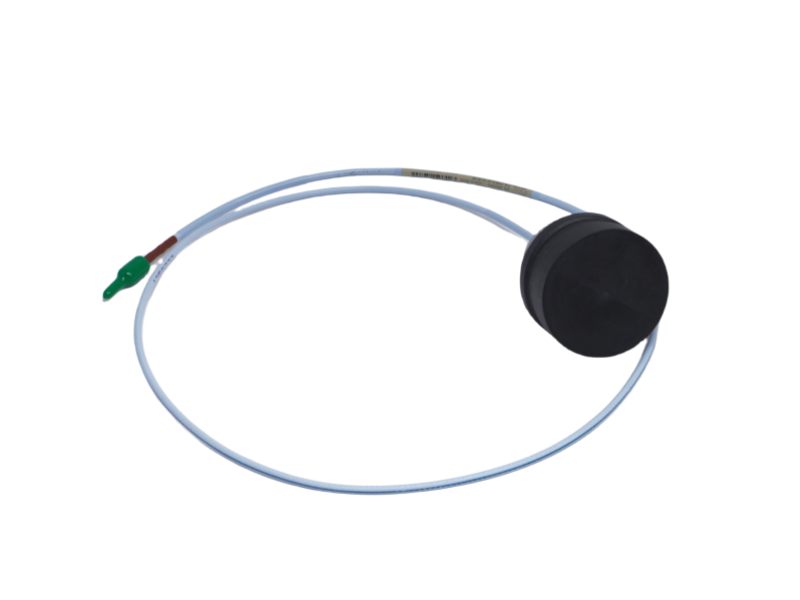

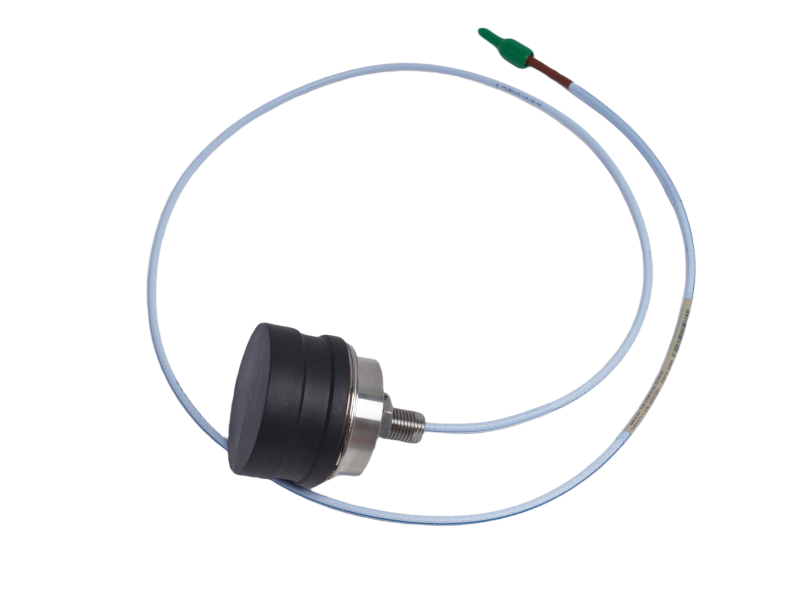

3300 XL 50 mm Transducer System Introduction
The 3300 XL 50 mm Transducer System is an advanced and high-performance solution designed for accurate measurement of differential expansion (DE) or rotor expansion (RX) in large steam turbine generators. It consists of a separate 50 mm probe, extension cable, and a 3300 XL 50 mm Proximitor Sensor, offering the longest linear range of 27.9 mm (1100 mils) in Bently Nevada’s eddy current transducer lineup. This extended range makes the 3300 XL 50 mm Transducer System ideal for monitoring the differential growth between turbine rotors and stators, crucial in ensuring the efficiency and safety of steam turbines.
Built to endure the harshest steam turbine environments, the 3300 XL 50 mm Transducer System maintains its precision even under extreme temperature conditions. The 50 mm probe is capable of continuous operation up to 200°C (392°F) and can handle brief exposures up to 250°C (482°F), ensuring long-term reliability. It is designed with front and rear seals and a High Temperature FluidLoc cable for moisture protection.
The 3300 XL 50 mm Transducer System also includes ClickLoc connectors for hassle-free installation and routing, with both straight exit and side exit probe options available. Its durability, long linear range, and high-temperature tolerance make the 3300 XL 50 mm Transducer System a perfect solution for critical turbine applications.
