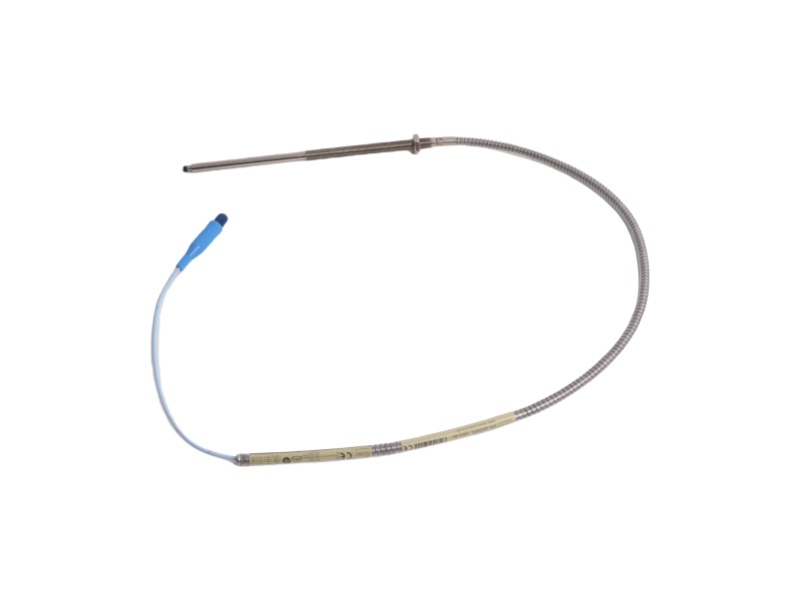

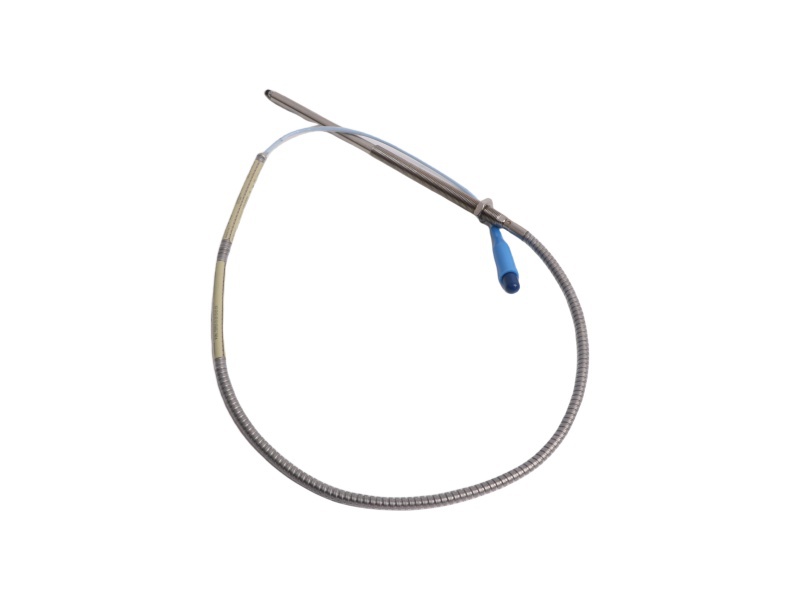

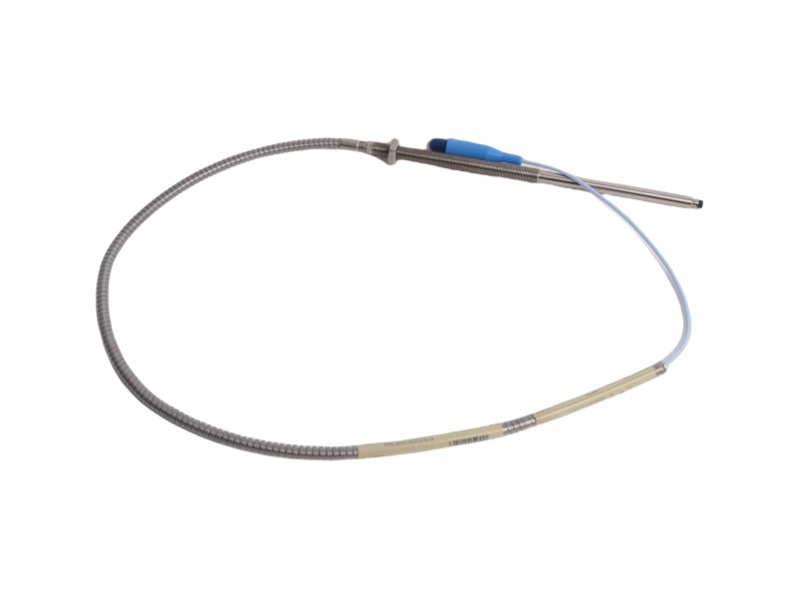

330910-10-22-10-01-CN Product datasheet
Model number: |
330910-10-22-10-01-CN |
|
Module Type: |
NSv Proximity Probe |
Manufacture: |
Bently Nevada |
|
Condition: |
Brand New |
Range of Product: |
3300 XL NSv Proximity Transducer System |
|
Lead time: |
In Stock |
Weight: |
0.16kg |
|
HS CODE: |
8537101190 |
Dimension: |
110x2x2cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
TSI |
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
330910-10-22-10-01-CN Functional Description
The Bently Nevada 330910-10-22-10-01-CN Proximity Probes are equipped with advanced sensor technology, making them highly reliable and precise, even in the most demanding industrial environments. These probes are designed to provide exceptional performance in a variety of applications, including machinery monitoring, process control, and safety systems, where accurate distance measurement is essential.
Constructed with epoxy-sealed materials, the Bently Nevada 330910-10-22-10-01-CN Proximity Probes offer outstanding protection against environmental factors, ensuring long-lasting durability and consistent operation over extended periods. This robust construction guarantees reliability in harsh industrial conditions, minimizing the need for maintenance.
With a high current and voltage rating, the Bently Nevada 330910-10-22-10-01-CN Proximity Probes can handle a wide range of power sources and operate effectively in both low and high-pressure environments. This versatility makes them suitable for various industries, from manufacturing to petrochemical plants, where precision and durability are critical.
Designed for seamless integration, the Bently Nevada 330910-10-22-10-01-CN Proximity Probes easily integrate into existing control systems. This reduces downtime, enhances operational efficiency, and ensures smooth monitoring of critical processes. Whether used in safety or control applications, these probes provide a reliable solution for industrial automation systems.
If you have other request contact our team to get customized service
Bently Nevada |
330930-040-02-00 |
Bently Nevada |
330910-03-09-05-02-05 |
Bently Nevada |
330909-00-60-10-02-05 |
Bently Nevada |
330930-040-00-05 |
Bently Nevada |
330910-014-19-10-02-00 |
Bently Nevada |
330909-00-60-10-01-05 |
Bently Nevada |
330930-040-00-00 P3403893-0006 |
Bently Nevada |
330910-00-12-10-02-00 |
Bently Nevada |
330907-05-30-10-02-00 |
Bently Nevada |
330930-040-00-00 |
Bently Nevada |
330910-00-11-10-02-05 |
Bently Nevada |
330906-02-12-05-02-05 |
Bently Nevada |
330910-14-19-10-02-00 |
Bently Nevada |
330910-00-05-50-02-00 |
Bently Nevada |
330905-14-19-10-02-05 |
Bently Nevada |
330910-10-22-10-01-CN |
Bently Nevada |
330910-00-05-10-02-00 |
Bently Nevada |
330905-08-13-10-12-05 |
Bently Nevada |
330910-05-11-10-02-00 |
Bently Nevada |
330909-00-99-10-02-00 |
Bently Nevada |
330905-08-13-10-02-05 |
Bently Nevada |
330910-05-10-02-00 |
Bently Nevada |
330909-00-80-10-02-05 |
Bently Nevada |
330905-00-10-10-02-CN |
3300 XL NSv Proximity Transducer System Introduction
The 3300 XL NSv Proximity Transducer system is intended for use with centrifugal air compressors, refrigeration compressors, process gas compressors, and other machines with tight installation requirements. The 3300 XL NSv Proximity Transducer System consists of:
1. 3300 NSv probe
2. 3300 NSv extension cable
3.3300 XL NSv Proximitor Sensor(1)
The primary uses for the 3300 XL NSv Transducer System are for areas where counter bore, sideview, or rearview restrictions limit the use of standard Bently Nevada 3300 and 3300 XL 5 and 8 mm Transducer Systems. It is also ideal for small target applications, such as measuring radial vibration on shafts smaller than 51 mm (2 in) or axial position on flat targets smaller than 15 mm (0.6 in). It is primarily used in the following applications on fluid-filmed bearing machines where a small shaft or reduced side-view is present:
Radial vibration and radial position measurements
Axial (thrust) position measurements
Tachometer and zero speed measurements
Phase reference (Keyphasor signals)
The 3300 XL NSv Transducer System design allows it to replace both the 3300 RAM Transducer Systems and the 3000-series or 7000-series 190 Transducer System. Upgrades from the 3300 RAM system to the 3300 XL NSv system may use the existing probe, extension cable, and monitoring system with 3300 XL NSv Proximitor Sensor. Upgrades from the 3000-series or 7000-series Transducer System must replace the probe, extension cable, and Proximitor Sensor with NSv components.
The 3300 XL NSv Transducer System has an Average Scale Factor of 7.87 V/mm (200 mV/mil), which is the most common output for eddy current transducers. Its enhanced sideview and small target characteristics give it shorter linear range than the Bently Nevada 3300 XL-series 5 and 8 mm Transducer System. The 1.5 mm (60 mils) of linear range exceeds the linear range of the 3000-series 190 Transducer System.
Proximity Probe and Extension Cable
The 3300 NSv probe and extension cable are mechanically and electrically compatible and interchangeable with Bently Nevada’s previous 3300 RAM proximity probe and extension cable. The NSv probe has increased chemical resistance compared to the 3300 RAM probe, which allows its use in many process compressor applications. The side-view characteristics of the 3300 NSv probe are also superior to those of the 3000-series 190 probe when gapping the 3300 NSv probe at the same distance from the probe target.
The 3300 NSv probe comes in varying probe case configurations, including armored and unarmored 1/4-28, 3⁄8-24, M8X1 and M10X1 probe threads. The reverse mount 3300 NSv probe comes standard with either 3⁄8-24 or M10X1 threads. All components of the transducer system have gold-plated brass ClickLoc connectors. ClickLoc connectors lock into place and prevent the connection from loosening. The patented TipLoc molding method provides a robust bond between the probe tip and the probe body. Bently Nevada’s patented CableLoc design provides 220 N (50 lb) of pull strength and securely attaches the probe cable to the probe tip. Connector protectors are recommended for use on the probe-to-extension cable connection, as well as on the cable-to-Proximitor Sensor connection. Connector protectors prevent most liquids from entering into the ClickLoc connectors and adversely affecting the electrical signal.
