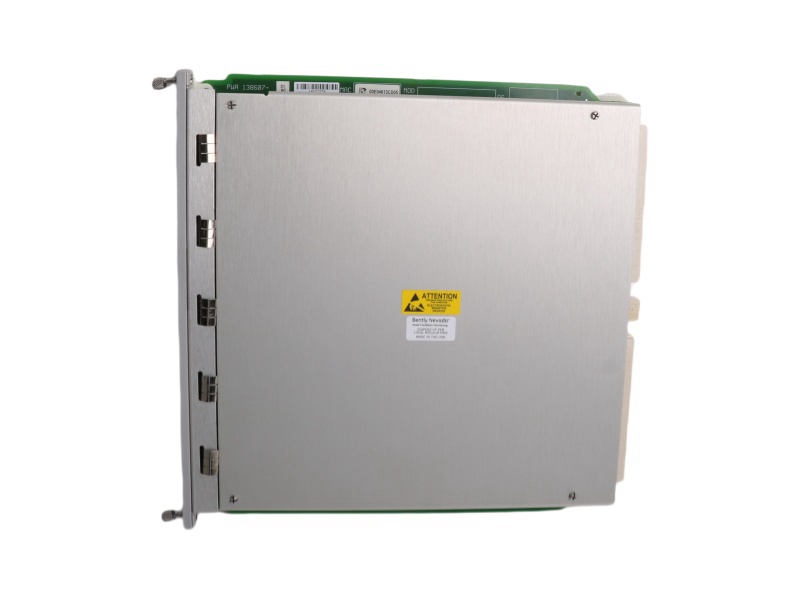

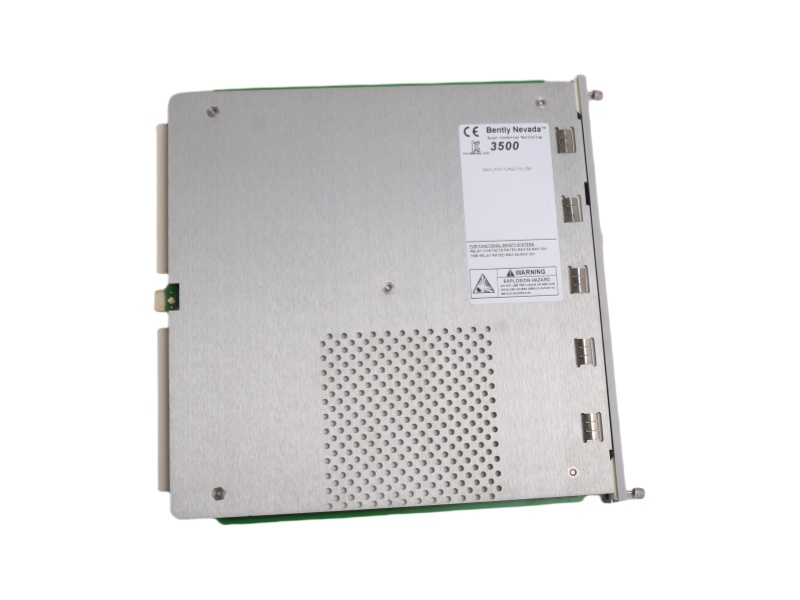

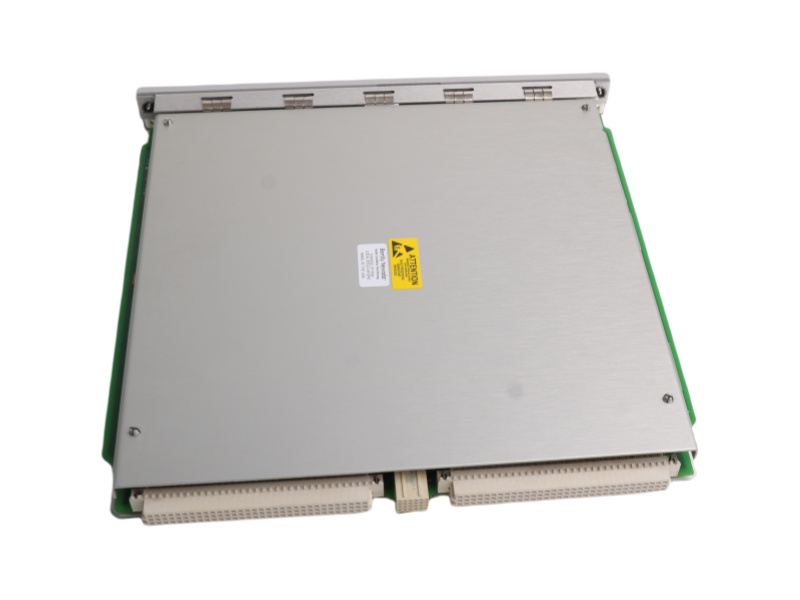

3500/22M 138607-01 Product datasheet
|
Model number: |
3500/22M 138607-01 |
|
Module Type： |
Standard Transient Data Interface Module |
|
Manufacture: |
Bently Nevada |
|
Condition： |
Brand New |
|
Range of Product: |
3500 system |
|
Lead time： |
In Stock |
|
Weight: |
0.8kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.5x25x24cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
TSI |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
3500/22M 138607-01 Functional Description
Engineered with advanced technology, the Bently Nevada 3500/22M 138607-01 provides unmatched precision and reliability in industrial automation. Its compact design ensures easy integration into existing systems, making it ideal for both new installations and retrofit projects. The 3500/22M 138607-01 Transient Data Interface is equipped with a robust power supply of 10.5 Watts, enabling it to handle high loads without compromising its performance.
Supporting dry contact inputs with currents below 1 milliampere, this module guarantees compatibility with a variety of input devices. The Bently Nevada 3500/22M 138607-01 Standard Transient Data Interface Module offers versatile connectivity, featuring USB-B, 10Base-T, and 100Base-TX Ethernet interfaces, as well as an autosensing 100Base-FX Fiber-Optic Ethernet option, providing seamless network integration.
Designed for operational efficiency, the Bently Nevada 3500 Series 3500/22M 138607-01 includes a rack reset button and LED indicators for pre- and post-alarm data, allowing real-time monitoring and troubleshooting. Built to endure harsh industrial environments, this PLC module ensures durability and minimal downtime. Rigorous testing ensures the Bently Nevada 3500/22M 138607-01 Transient Data Interface Module meets the highest industry standards, delivering optimal performance even in extreme conditions.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Bently Nevada |
3500/33 149986-01 |
Bently Nevada |
3500/20 125744-02 |
Bently Nevada |
3500/45 176449-04 |
|
Bently Nevada |
3500/32M 149986-02 |
Bently Nevada |
3500/15 133292-01 |
Bently Nevada |
3500/45 176449-04 |
|
Bently Nevada |
3500/32 125712-01 |
Bently Nevada |
3500/60 163179-01 |
Bently Nevada |
3500/45 140072-04 |
|
Bently Nevada |
3500/25 149369-01 |
Bently Nevada |
3500/60 133811-01 |
Bently Nevada |
3500/44M 176449-03 |
|
Bently Nevada |
3500/25 149369-01 |
Bently Nevada |
3500/54M 286566-01 |
Bently Nevada |
3500/42M 176449-02 |
|
Bently Nevada |
3500/23E |
Bently Nevada |
3500/53 133388-01 |
Bently Nevada |
3500/42M 140734-02 |
|
Bently Nevada |
3500/22M 288055-01 |
Bently Nevada |
3500/50M 286566-02 |
Bently Nevada |
3500/42E 289837-01 |
|
Bently Nevada |
3500/22M 138607-01 |
Bently Nevada |
3500/50 133388-02 |
Bently Nevada |
3500/40M 176449-01 |
3500 System 3500/22M Introduction
The 3500/22M Transient Data Interface (TDI) is the interface between the 3500 monitoring system and compatible software (System 1 Condition Monitoring and Diagnostic software and 3500 System Configuration software). The TDI combines the function of a 3500/20 Rack Interface Module (RIM) with the data collection capability of a communication processor such as TDXnet.
The TDI resides in the slot adjacent to the power supplies of a 3500 rack. It interfaces with M series monitors (3500/40M, 3500/42M, etc.) to continuously collect steady state and transient dynamic (waveform) data and pass this data through an Ethernet link to the host software. Refer to the Compatibility section at the end of this document for more information.
Static data capture capability is standard with the TDI. However, using an optional Channel Enabling Disk will allow the TDI to capture dynamic and high-resolution transient data as well. The TDI incorporates the communication processor function within the 3500 rack.
Although the TDI provides certain functions common to the entire rack, it is not part of the critical monitoring path and has no effect on the proper, normal operation of the overall monitor system for automatic machinery protection. Every 3500 rack requires one TDI or RIM, which always occupies Slot 1 (next to the power supplies).
