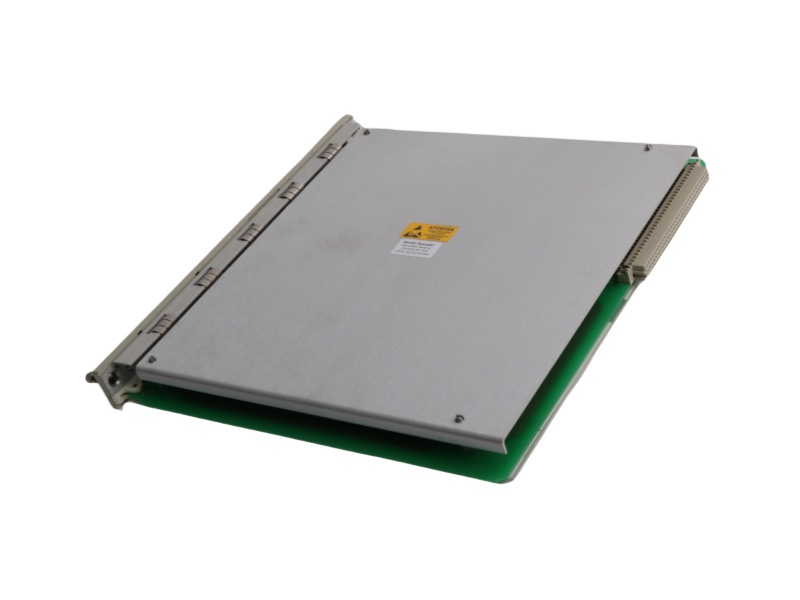

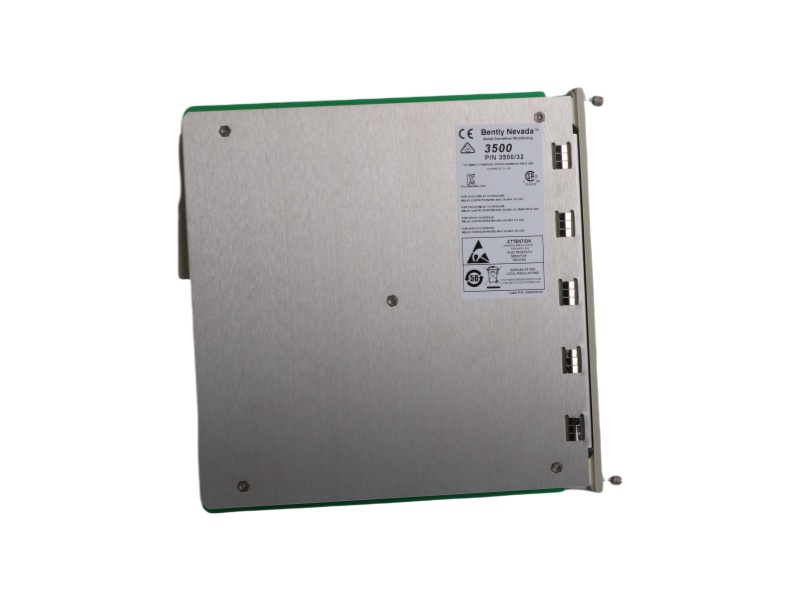

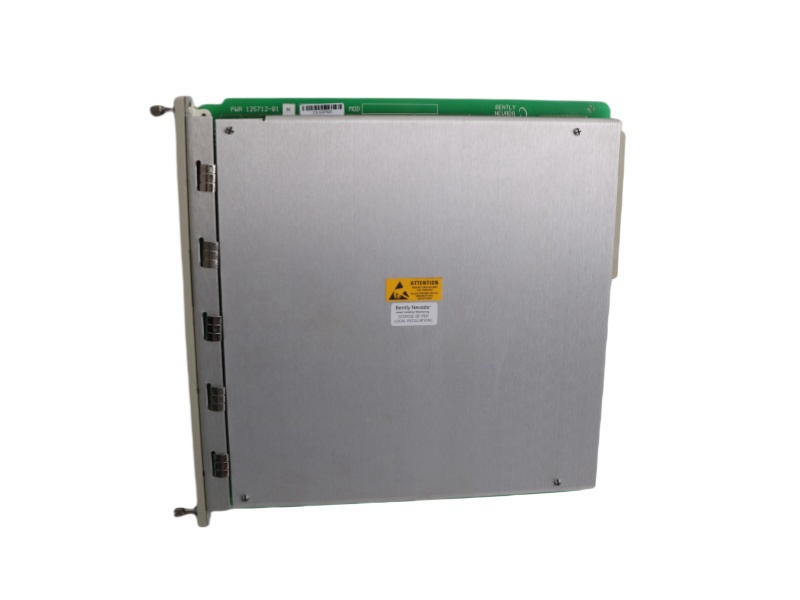

3500/32 125712-01 Product datasheet
|
Model number: |
3500/32 125712-01 |
|
Module Type： |
4-Channel Relay Module |
|
Manufacture: |
Bently Nevada |
|
Condition： |
Brand New |
|
Range of Product: |
3500 system |
|
Lead time： |
In Stock |
|
Weight: |
0.78kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.8x25x24cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
TSI |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
3500/32 125712-01 Functional Description
Engineered for superior performance, the Bently Nevada 3500/32 Relay Module is specifically designed to meet the demanding needs of industrial control systems. Equipped with advanced silver-plated copper alloy contacts, the 3500/32 4-Channel Relay Module provides exceptional durability and a high switching capacity, ensuring long-term reliability in harsh environments. Operating with a voltage of up to 3500V and a frequency range of up to 32kHz, it is tailored for high-speed control systems that require precise and efficient operation.
The Bently Nevada 3500/32 4 Channel Relay Module PWA features a non-latching SPDT design, offering flexibility in circuit configuration, making it ideal for complex automation tasks. It also incorporates advanced protection mechanisms, including overload and short-circuit safeguards, to enhance safety and minimize system downtime.
Additionally, the 350032 Relay Module is designed for easy panel mounting, ensuring seamless integration into various industrial control panels. This user-friendly design improves modularity and overall system efficiency, contributing to optimized operations in industrial settings.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Bently Nevada |
3500/33 149986-01 |
Bently Nevada |
3500/20 125744-02 |
Bently Nevada |
3500/45 176449-04 |
|
Bently Nevada |
3500/32M 149986-02 |
Bently Nevada |
3500/15 133292-01 |
Bently Nevada |
3500/45 176449-04 |
|
Bently Nevada |
3500/32 125712-01 |
Bently Nevada |
3500/60 163179-01 |
Bently Nevada |
3500/45 140072-04 |
|
Bently Nevada |
3500/25 149369-01 |
Bently Nevada |
3500/60 133811-01 |
Bently Nevada |
3500/44M 176449-03 |
|
Bently Nevada |
3500/25 149369-01 |
Bently Nevada |
3500/54M 286566-01 |
Bently Nevada |
3500/42M 176449-02 |
|
Bently Nevada |
3500/23E |
Bently Nevada |
3500/53 133388-01 |
Bently Nevada |
3500/42M 140734-02 |
|
Bently Nevada |
3500/22M 288055-01 |
Bently Nevada |
3500/50M 286566-02 |
Bently Nevada |
3500/42E 289837-01 |
|
Bently Nevada |
3500/22M 138607-01 |
Bently Nevada |
3500/50 133388-02 |
Bently Nevada |
3500/40M 176449-01 |
3500 System 3500/32 Introduction
The 4-Channel Relay Module is a full-height module that provides four relay outputs. Any number of 4-Channel Relay Modules can be placed in any of the slots to the right of the Transient Data Interface Module. Each output of the 4- Channel Relay Module can be independently programmed to perform voting logic.
Each relay utilized on the 4-Channel Relay Module includes Alarm Drive Logic. Programming for the Alarm Drive Logic uses AND and OR logic, and can use alarming inputs (Alert and Danger statuses), Not- OK, or individual PPLs from any monitor channel or any combination of monitor channels in the rack.
You can program this Alarm Drive to meet your application needs using the 3500 Rack Configuration Software.
