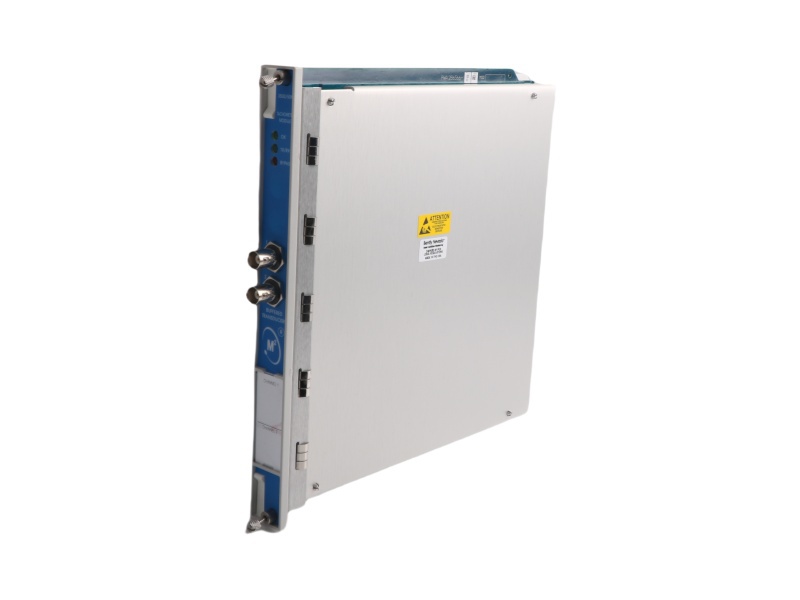

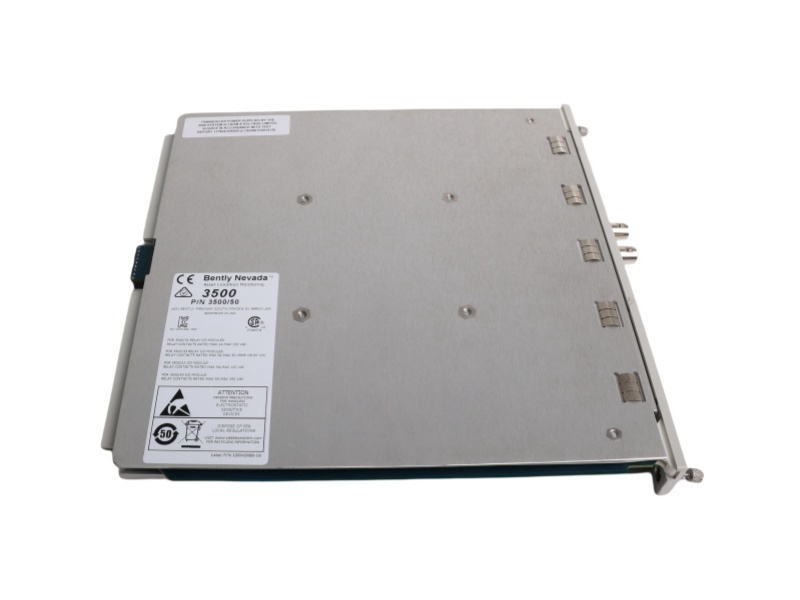

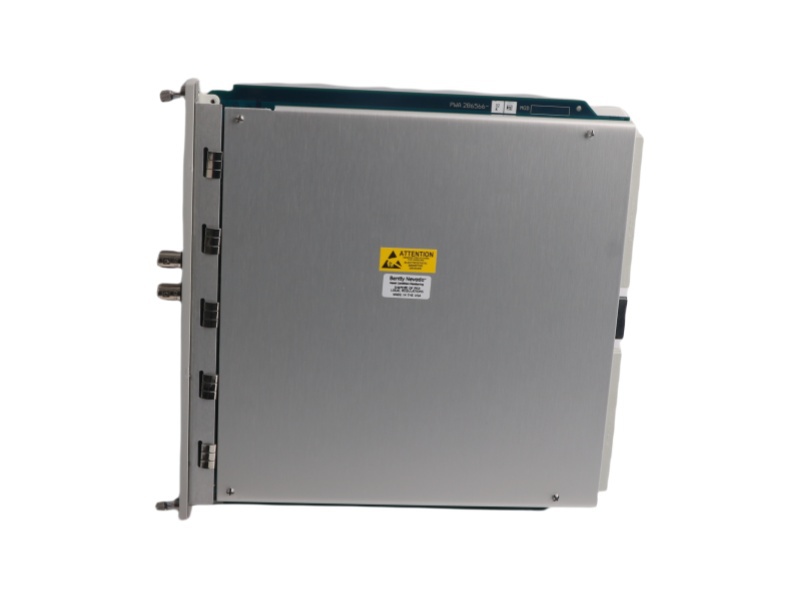

3500/50M 286566-02 Product datasheet
|
Model number: |
3500/50M 286566-02 |
|
Module Type： |
Tachometer Module |
|
Manufacture: |
Bently Nevada |
|
Condition： |
Brand New |
|
Range of Product: |
3500 system |
|
Lead time： |
In Stock |
|
Weight: |
0.92kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.5x25.6x24cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
TSI |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
3500/50M 286566-02 Functional Description
Crafted with precision, the 3500/50M 286566-02 Tachometer Module is engineered to deliver exceptional accuracy in speed measurement, making it an indispensable tool for industrial control applications. This module ensures reliable, real-time data, helping optimize operational performance and prevent potential issues.
Featuring an extended signal range and a robust epoxy seal, the 3500/50M 286566-02 is designed to withstand the harshest industrial environments, including exposure to dust, moisture, and extreme temperatures. This makes it an ideal solution for demanding conditions in industries like oil & gas, power generation, and manufacturing.
The compact design of the 3500/50M 286566-02 Tachometer Module, measuring 9.50 inches in height, 0.96 inches in width, and 9.52 inches in depth, allows for seamless integration into various industrial setups without compromising space or performance. Its versatility makes it easy to incorporate into existing systems.
Equipped with single-pole double-throw (SPDT) relay contacts rated for 100,000 cycles, the 3500/50M 286566-02 ensures long-lasting performance and reliable alarm triggering for critical applications.
Designed to operate within a wide temperature range of -40°C to +70°C, the 3500/50M 286566-02 Tachometer Module maintains consistent accuracy, even under extreme industrial conditions, providing peace of mind for operators and engineers.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Bently Nevada |
3500/77M 140734-07 |
Bently Nevada |
3500/61 163179-02 |
Bently Nevada |
3500/45 176449-04 |
|
Bently Nevada |
3500/72M 176449-08 |
Bently Nevada |
3500/61 136711-02 |
Bently Nevada |
3500/45 176449-04 |
|
Bently Nevada |
3500/70M 176449-09 |
Bently Nevada |
3500/60 163179-01 |
Bently Nevada |
3500/45 140072-04 |
|
Bently Nevada |
3500/65 145988-02 |
Bently Nevada |
3500/60 133811-01 |
Bently Nevada |
3500/44M 176449-03 |
|
Bently Nevada |
3500/64M 176449-05 |
Bently Nevada |
3500/54M 286566-01 |
Bently Nevada |
3500/42M 176449-02 |
|
Bently Nevada |
3500/40M 140734-01 |
Bently Nevada |
3500/53 133388-01 |
Bently Nevada |
3500/42M 140734-02 |
|
Bently Nevada |
3500/62 163179-03 |
Bently Nevada |
3500/50M 286566-02 |
Bently Nevada |
3500/42E 289837-01 |
|
Bently Nevada |
3500/61E 285694-02 |
Bently Nevada |
3500/50 133388-02 |
Bently Nevada |
3500/40M 176449-01 |
3500/50M System Introduction
The 3500/50M Tachometer Module is a 2-channel module that accepts input from proximity probes or magnetic pickups to determine shaft rotative speed, rotor acceleration, or rotor direction. The module compares these measurements against user-programmable alarm setpoints and generates alarms when the setpoints are violated. The Tachometer Module is programmed using the 3500 Rack Configuration software. The following configuration options are available:
1. Speed Monitoring, Setpoint Alarming and Speed Band Alarming
2. Speed Monitoring, Setpoint Alarming and Zero Speed Notification
3. Speed Monitoring, Setpoint Alarming and Rotor Acceleration Alarming
4. Speed Monitoring, Setpoint Alarming and Reverse Rotation Notification
The 3500/50M Tachometer Module can be configured to supply conditioned Keyphasor signals to the backplane of the 3500 rack for use by other monitors. Therefore, you don't need a separate Keyphasor module in the rack.
The 3500/50M Tachometer Module has a peak hold feature that stores the highest speed, the highest reverse speed, or the number of reverse rotations that the machine has reached. You can reset the peak values.
