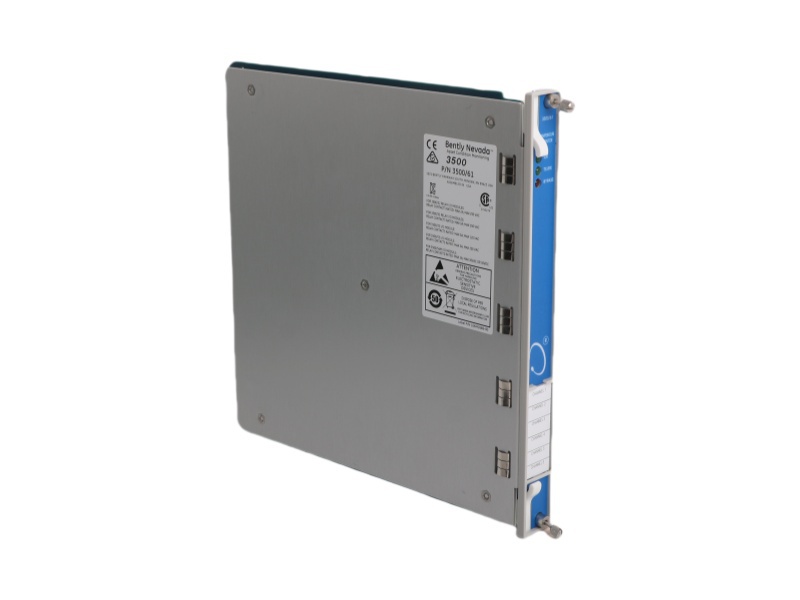

3500/61 163179-02 Product datasheet
|
Model number: |
3500/61 163179-02 |
|
Module Type： |
Temperature Monitor |
|
Manufacture: |
Bently Nevada |
|
Condition： |
Brand New |
|
Range of Product: |
3500 system |
|
Lead time： |
In Stock |
|
Weight: |
0.8kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.5x25x24cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
TSI |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
3500/61 163179-02 Functional Description
The 3500/61 163179-02 Temperature Monitor is a high-performance module developed by Bently Nevada as part of the renowned 3500 Series, designed specifically for monitoring critical temperature variables in industrial settings. This advanced monitor supports up to six temperature channels, capable of accepting inputs from both RTDs (Resistance Temperature Detectors) and thermocouples, offering flexible and reliable temperature monitoring solutions.
One of the standout features of the 3500/61 163179-02 Temperature Monitor is its ability to process temperature data from these inputs and compare them against user-defined alarm setpoints, ensuring that any deviations are promptly identified. This module also provides recorder outputs for each of its six channels, distinguishing it from other models in the 3500 Series.
Users can configure the 3500/61 163179-02 Temperature Monitor via the Bently Nevada 3500 Rack Configuration Software, allowing for easy setup of RTD or thermocouple inputs. Additionally, both RTD/TC non-isolated and TC-isolated versions of the module are available, with the TC-isolated version offering 250 Vdc channel-to-channel isolation to protect against external interference.
Designed for reliability, the 3500/61 163179-02 Temperature Monitor offers superior temperature monitoring capabilities, enhancing system performance and safeguarding equipment in demanding industrial environments.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Bently Nevada |
3500/77M 140734-07 |
Bently Nevada |
3500/61 163179-02 |
Bently Nevada |
3500/45 176449-04 |
|
Bently Nevada |
3500/72M 176449-08 |
Bently Nevada |
3500/61 136711-02 |
Bently Nevada |
3500/45 176449-04 |
|
Bently Nevada |
3500/70M 176449-09 |
Bently Nevada |
3500/60 163179-01 |
Bently Nevada |
3500/45 140072-04 |
|
Bently Nevada |
3500/65 145988-02 |
Bently Nevada |
3500/60 133811-01 |
Bently Nevada |
3500/44M 176449-03 |
|
Bently Nevada |
3500/64M 176449-05 |
Bently Nevada |
3500/54M 286566-01 |
Bently Nevada |
3500/42M 176449-02 |
|
Bently Nevada |
3500/40M 140734-01 |
Bently Nevada |
3500/53 133388-01 |
Bently Nevada |
3500/42M 140734-02 |
|
Bently Nevada |
3500/62 163179-03 |
Bently Nevada |
3500/50M 286566-02 |
Bently Nevada |
3500/42E 289837-01 |
|
Bently Nevada |
3500/61E 285694-02 |
Bently Nevada |
3500/50 133388-02 |
Bently Nevada |
3500/40M 176449-01 |
3500/60 & 61 Introduction
The 3500/60 & 61 modules provide six channels of temperature monitoring and accept both Resistance Temperature Detector (RTD) and Thermocouple (TC) temperature inputs. The modules condition these inputs and compare them against user-programmable alarm setpoints. The 3500/60 and 3500/61 provide identical functionality except that the 3500/61 provides recorder outputs for each of its six channels while the 3500/60 does not.
The user programs the modules to perform either RTD or TC temperature measurements using the 3500 Rack Configuration Software. Different I/O modules are available in RTD/TC non-isolated or TC isolated versions. The user can configure the RTD/TC non-isolated version to accept either TC or RTD, or a mixture of TC and RTD inputs. The TC isolated version provides 250 Vdc of channel-to-channel isolation to protect against external interference.
When used in a Triple Modular Redundant (TMR) configuration, temperature monitors must be installed adjacent to each other in groups of three. When used in this configuration, the system employs two types of voting to ensure accurate operation and to avoid single-point failures.
