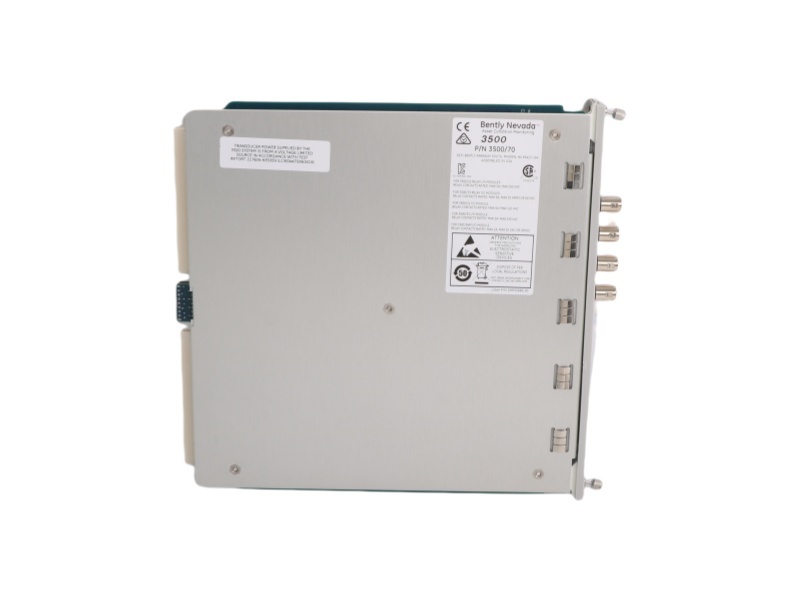

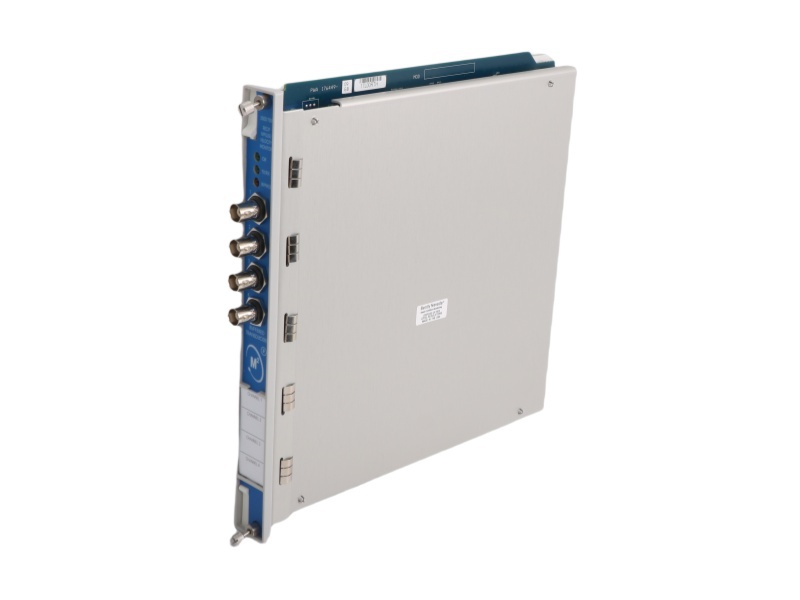

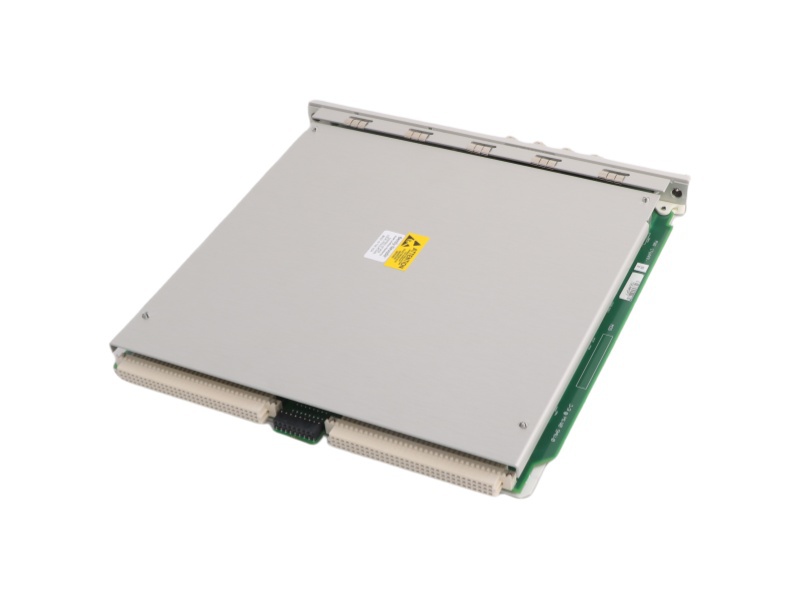

3500/70M 176449-09 Product datasheet
|
Model number: |
3500/70M 176449-09 |
|
Module Type： |
Recip Impulse Velocity Monitor |
|
Manufacture: |
Bently Nevada |
|
Condition： |
Brand New |
|
Range of Product: |
3500 system |
|
Lead time： |
In Stock |
|
Weight: |
0.82kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.5x25.6x24cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
TSI |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
3500/70M 176449-09 Functional Description
The Bently Nevada 3500/70M 176449-09 Recip Impulse Velocity Monitor is a highly versatile 4-channel device designed for monitoring compressor crankcase and crosshead vibration in reciprocating compressors. This monitor receives input from seismic transducers, processes the signals to measure vibration, and compares them against user-set alarm thresholds, ensuring the safety and efficiency of the equipment.
Each channel of the Bently Nevada 3500/70M 176449-09 can be configured using the 3500 Rack Configuration Software, allowing for customized monitoring functions such as Impulse Acceleration, Acceleration 2, Recip Velocity, and Low-Frequency Recip Velocity. This flexibility ensures that the monitor can be tailored to meet the specific needs of different applications, offering precise measurements for optimal performance.
The channels of the Bently Nevada 3500/70M 176449-09 are grouped in pairs, allowing them to either perform similar or independent functions, depending on the requirements. This feature enhances the versatility of the monitor, enabling it to handle a variety of complex monitoring tasks in reciprocating compressor systems. With its robust design and advanced capabilities, the Bently Nevada 3500/70M 176449-09 provides critical vibration monitoring for improved reliability and preventive maintenance.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Bently Nevada |
3500/77M 140734-07 |
Bently Nevada |
3500/90 |
Bently Nevada |
330909-00-60-10-02-05 |
|
Bently Nevada |
3500/72M 176449-08 |
Bently Nevada |
3500/77M 140734-07 |
Bently Nevada |
330909-00-60-10-01-05 |
|
Bently Nevada |
3500/70M 176449-09 |
Bently Nevada |
3500/22M 138607-01 |
Bently Nevada |
330907-05-30-10-02-00 |
|
Bently Nevada |
3500/65 145988-02 |
Bently Nevada |
330910-00-11-10-02-05 |
Bently Nevada |
330906-02-12-05-02-05 |
|
Bently Nevada |
3500/64M 176449-05 |
Bently Nevada |
330910-00-05-50-02-00 |
Bently Nevada |
330905-14-19-10-02-05 |
|
Bently Nevada |
3500/64M |
Bently Nevada |
330910-00-05-10-02-00 |
Bently Nevada |
330905-08-13-10-12-05 |
|
Bently Nevada |
3500/62 163179-03 |
Bently Nevada |
330909-00-99-10-02-00 |
Bently Nevada |
330905-08-13-10-02-05 |
|
Bently Nevada |
3500/61E 285694-02 |
Bently Nevada |
330909-00-80-10-02-05 |
Bently Nevada |
330905-00-10-10-02-CN |
3500/70M Introduction
The 3500/70M Recip Impulse Velocity Monitor is a 4-channel device used as part of the reciprocating compressor solutions package to monitor compressor crankcase and crosshead vibration. The monitor accepts input from seismic transducers, conditions the signal to derive vibration measurements, and compares the conditioned signals with user-programmable alarms. You can program each channel using the 3500 Rack
Configuration Software to perform the following functions:
1. Impulse Acceleration
2. Acceleration 2
3. Recip Velocity
4. Low Frequency Recip Velocity
The primary purpose of the 3500/70M Recip Impulse Velocity Monitor is to provide the following:
1. Machinery protection for reciprocating compressors by continuously comparing monitored parameters against configured alarm setpoints to drive alarms
2. Essential reciprocating compressor machine information for both operations and maintenance personnel Each channel, depending on configuration, typically conditions its input signal to generate various parameters called static values. You can configure alert setpoints for each active static value and danger setpoints for any two of the active static values.
