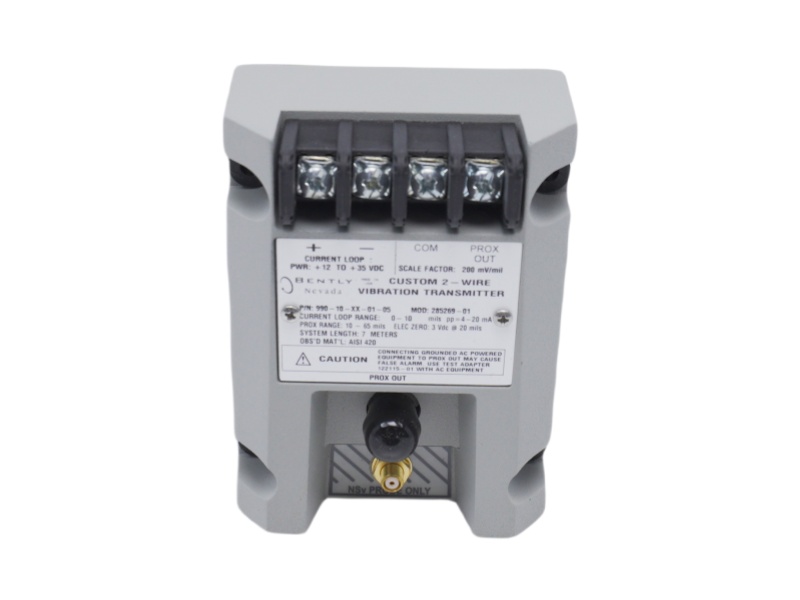

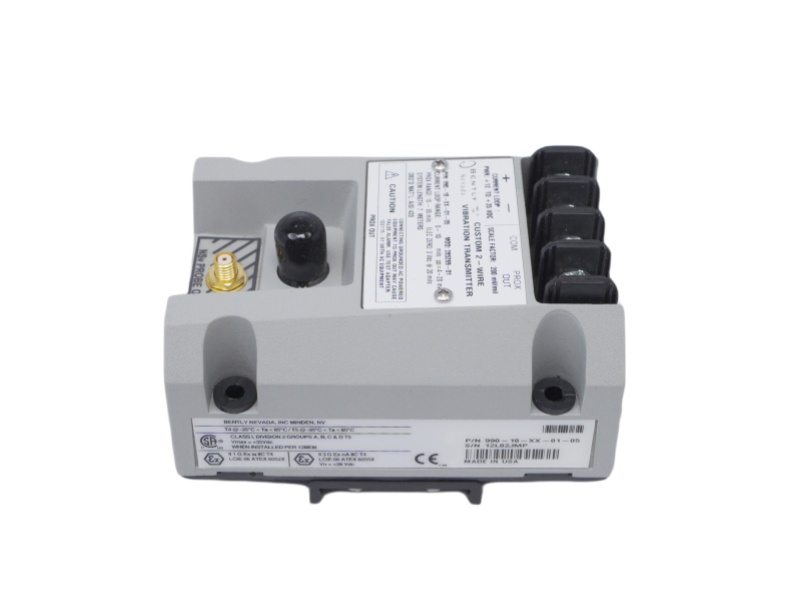

990-10-XX-01-05 MOD:285269-01 Product datasheet
|
Model number: |
990-10-XX-01-05 MOD:285269-01 |
|
Module Type： |
2-Wire Vibration Transmitter |
|
Manufacture: |
Bently Nevada |
|
Condition： |
Brand New |
|
Range of Product: |
990 series |
|
Lead time： |
In Stock |
|
Weight: |
0.46kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
10x7.3x6cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
TSI |
|
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
990-10-XX-01-05 MOD:285269-01 Functional Description
The 990-10-XX-01-05 MOD:285269-01 2-Wire Vibration Transmitter is designed for precision and reliability in critical industrial applications. With state-of-the-art technology, the 990-10-XX-01-05 MOD:285269-01 2-Wire Vibration Transmitter provides accurate vibration measurements, enabling proactive maintenance strategies and helping to extend equipment lifespan.
Built to withstand harsh environments, the 990-10-XX-01-05 MOD:285269-01 Control System features an IP67-rated enclosure, ensuring continuous operation in demanding conditions. Its wide temperature range of -40°C to +125°C makes it suitable for a variety of industrial settings, from extreme heat to freezing environments.
With a sensitivity of 50 mV/mm and a frequency response of 0 to 15,000 Hz, the 990-10-XX-01-05 MOD:285269-01 Control System accurately captures even the slightest vibration changes. This capability allows for early detection of potential mechanical issues before they lead to costly downtime.
Offering both voltage (0 to 10 V DC) and current (4 to 20 mA) outputs, the 990-10-XX-01-05 MOD:285269-01 Vibration Transmitters integrates easily with various control systems. The M12 connector and flush mount design ensure a simple installation process, while minimizing maintenance needs.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
Bently Nevada |
991-25-XX-01-CN |
Bently Nevada |
991-01-XX-01-05 MOD:284318-01 |
Bently Nevada |
990-08-XX-01-00 MOD:165353-01 |
|
Bently Nevada |
991-06-XX-01-00 |
Bently Nevada |
991-01-XX-01-01 MOD:284318-01 |
Bently Nevada |
990-08-XX-01-00 MOD:165353-01 |
|
Bently Nevada |
991-06-XX-01-00 169955-01 |
Bently Nevada |
991-01-XX-01-00 MOD:284318-01 |
Bently Nevada |
990-05-XX-03-CN 104M6732-01 |
|
Bently Nevada |
991-06-70-01-CN |
Bently Nevada |
990-16-XX-01-CN 106M1675-01 |
Bently Nevada |
990-05-XX-03-CN 104M1359-01 |
|
Bently Nevada |
991-06-70-01-00 |
Bently Nevada |
3500/65 145988-02 |
Bently Nevada |
990-05-XX-03-05 147202-01 |
|
Bently Nevada |
991-06-50-01-00 |
Bently Nevada |
990-10-XX-01-05 MOD:285269-01 |
Bently Nevada |
990-05-XX-01-CN |
|
Bently Nevada |
991-06-50-01-00 |
Bently Nevada |
990-10-XX-01-05 |
Bently Nevada |
990-05-XX-01-CN |
|
Bently Nevada |
991-01-XX-02-05 |
Bently Nevada |
990-10-XX-01-00 MOD:165353-01 |
Bently Nevada |
990-05-XX-01-00 MOD:165335-01 |
|
Bently Nevada |
991-01-XX-01-CN |
Bently Nevada |
990-10-XX-01-00 283278-01 |
Bently Nevada |
990-05-XX-01-00 MOD:147202-01 |
|
Bently Nevada |
991-01-XX-01-CN |
Bently Nevada |
990-08-XX-01-00 |
Bently Nevada |
900800XL-090-03-01 |
990 Vibration Transmitter Introduction
The 990 Vibration Transmitter is intended primarily for theoriginal equipment manufacturers (OEMs) of centrifugal aircompressors or small pumps, motors, or fans who prefer toprovide a simple 4 to 20 mA proportional vibration signal asthe input to their machinery control system.
The transmitter is a two-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options).
The transmitter conditions the signal into appropriate peakto-peak vibration amplitude engineering units, and provides this value as a proportional 4 to 20 mA industry-standard signal as the input to the control system where machinery protection alarming and logic occurs.
1.Integrated Proximitor Sensor requires no external unit
2. Non-isolated "PROX OUT" and "COM" terminals plus acoaxial connector to provide a dynamic vibration and gap voltage signal output for diagnostics.
3.Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
4.Test Input pin for quick verification of loop signal output, using a function generator as the input.
5. A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.
6. Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
7. Potted construction for high humidity (up to 100% condensing) environments. Compatibility with 3300 NSv proximity probe allows transducer installation in small areas with minimal clearance, typical of centrifugal air compressors.
Isolation between test equipment and the loop signal, and ensure that the installation maintains machinery protection integrity
FCC
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference.
This device must accept any interference received, including interference that may cause undesired operation.
990 Vibration Transmitter Compliance and Certifications
EMC
EN 61000-6-2
EN 61000-6-4
EMC Directive 2014/30/EU
ATEX
ATEX Directive 2014/34/EU
RoHS
RoHS Directive 2011/65/EU
Maritime
ABS 2009 Steel Vessels Rules
