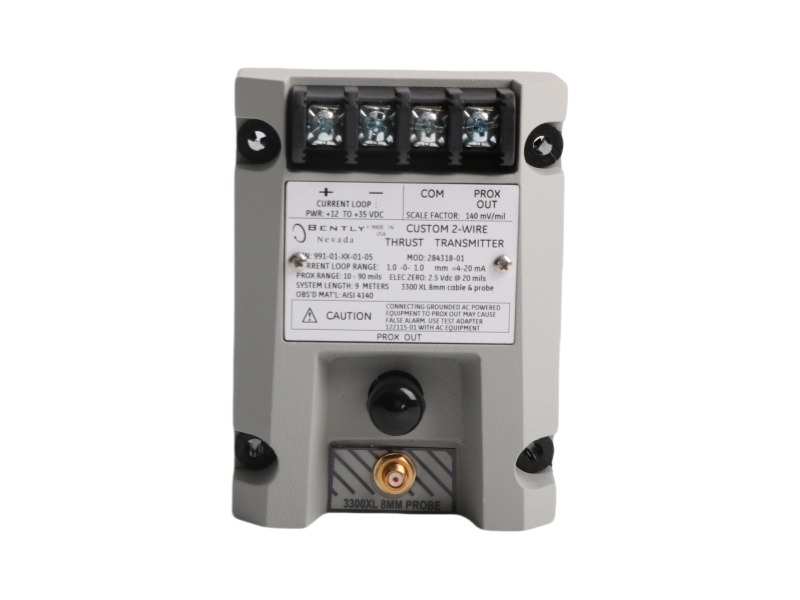

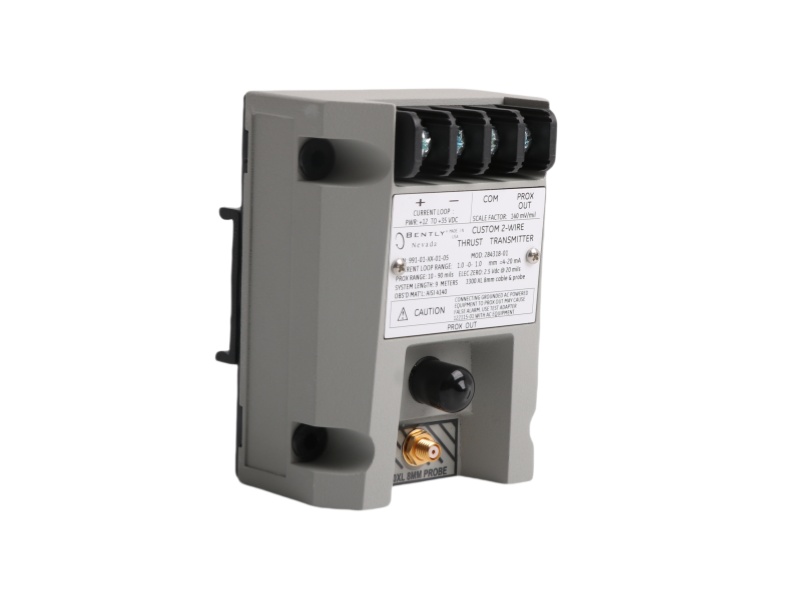

991-01-XX-01-05 MOD:284318-01 Product datasheet
Model number: |
991-01-XX-01-05 MOD:284318-01 |
|
Module Type: |
custom 2-wire Thrust Transmitter |
Manufacture: |
Bently Nevada |
|
Condition: |
Brand New |
Range of Product: |
991 series |
|
Lead time: |
In Stock |
Weight: |
0.44kg |
|
HS CODE: |
8537101190 |
Dimension: |
10x7.3x5.8cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
TSI |
Discontinued on: |
active |
|
Communication Service: |
Ethernet router |
991-01-XX-01-05 MOD:284318-01 Functional Description
The BENTLY NEVADA 991-01-XX-01-05 MOD:284318-01 Vibration Transmitter is engineered with advanced technology to meet the high demands of modern industrial environments. Offering high accuracy and a wide operating range, the 991-01-XX-01-05 MOD:284318-01 Vibration Transmitter is essential for monitoring critical machinery components under extreme conditions, ensuring reliable performance in challenging applications.
Built with a durable stainless steel housing, the 991-01-XX-01-05 MOD:284318-01 Thrust Transmitter is highly resistant to corrosion, making it ideal for harsh and hazardous environments. With an IP67 protection class, it guarantees waterproof and dustproof performance, providing robust protection against environmental factors.
The 991-01-XX-01-05 MOD:284318-01 Thrust Transmitter supports a 4 to 20 mA current loop output, ensuring compatibility with various process control systems and enabling seamless integration into existing automation networks. This functionality enhances system efficiency and data exchange across industrial applications.
Featuring a 1/2″ NPT process connection, the 991-01-XX-01-05 MOD:284318-01 Vibration Transmitter allows for easy installation and quick setup, reducing downtime during maintenance or upgrades. Equipped with HART communication protocol, it provides wireless configuration and remote diagnostic capabilities, significantly reducing maintenance costs and enhancing operational efficiency.
If you have other request contact our team to get customized service
Bently Nevada |
991-25-XX-01-CN |
Bently Nevada |
991-01-XX-01-05 MOD:284318-01 |
Bently Nevada |
990-08-XX-01-00 MOD:165353-01 |
Bently Nevada |
991-06-XX-01-00 |
Bently Nevada |
991-01-XX-01-01 MOD:284318-01 |
Bently Nevada |
990-08-XX-01-00 MOD:165353-01 |
Bently Nevada |
991-06-XX-01-00 169955-01 |
Bently Nevada |
991-01-XX-01-00 MOD:284318-01 |
Bently Nevada |
990-05-XX-03-CN 104M6732-01 |
Bently Nevada |
991-06-70-01-CN |
Bently Nevada |
990-16-XX-01-CN 106M1675-01 |
Bently Nevada |
990-05-XX-03-CN 104M1359-01 |
Bently Nevada |
991-06-70-01-00 |
Bently Nevada |
3500/65 145988-02 |
Bently Nevada |
990-05-XX-03-05 147202-01 |
Bently Nevada |
991-06-50-01-00 |
Bently Nevada |
990-10-XX-01-05 MOD:285269-01 |
Bently Nevada |
990-05-XX-01-CN |
Bently Nevada |
991-06-50-01-00 |
Bently Nevada |
990-10-XX-01-05 |
Bently Nevada |
990-05-XX-01-CN |
Bently Nevada |
991-01-XX-02-05 |
Bently Nevada |
990-10-XX-01-00 MOD:165353-01 |
Bently Nevada |
990-05-XX-01-00 MOD:165335-01 |
Bently Nevada |
991-01-XX-01-CN |
Bently Nevada |
990-10-XX-01-00 283278-01 |
Bently Nevada |
990-05-XX-01-00 MOD:147202-01 |
Bently Nevada |
991-01-XX-01-CN |
Bently Nevada |
990-08-XX-01-00 |
Bently Nevada |
900800XL-090-03-01 |
991 Vibration Transmitter Introduction
The 991 Thrust Transmitter is intended primarily for the original equipment manufacturers (OEMs) of centrifugal air compressors or small pumps, motors, or fans who prefer to provide a simple 4 to 20 mA proportional axial displacement (thrust) signal as the input to their machinery control system. The transmitter is a 2-wire, loop-powered device that accepts input from our 3300 NSv proximity probe and its matching extension cable (available in 5 m and 7 m system length options). The transmitter conditions the signal into appropriate engineering units proportional to the shaft’s axial position1, and provides it as a 4 to 20 mA industry-standard signal for input to the control system where machinery protection alarming and logic occurs.
The 991 transmitter provides the following notable features:
1. Integrated Proximitor Sensor requires no external unit
2. Non-isolated "PROX OUT " and "COM" terminals plus a coaxial connector provide a dynamic vibration and gap voltage signal output for diagnostics3.
3. Non-interacting zero and span potentiometers under the Transmitter label supports loop adjustment.
4. Test Input pin allows quick verification of loop signal output, using a variable DC voltage source as the input.
5. A Power-up Inhibit circuit eliminates signal errors due to line voltage transients.
6. A Not OK/Signal Defeat circuit prevents high outputs or false alarms due to a faulty proximity probe or loose connection.

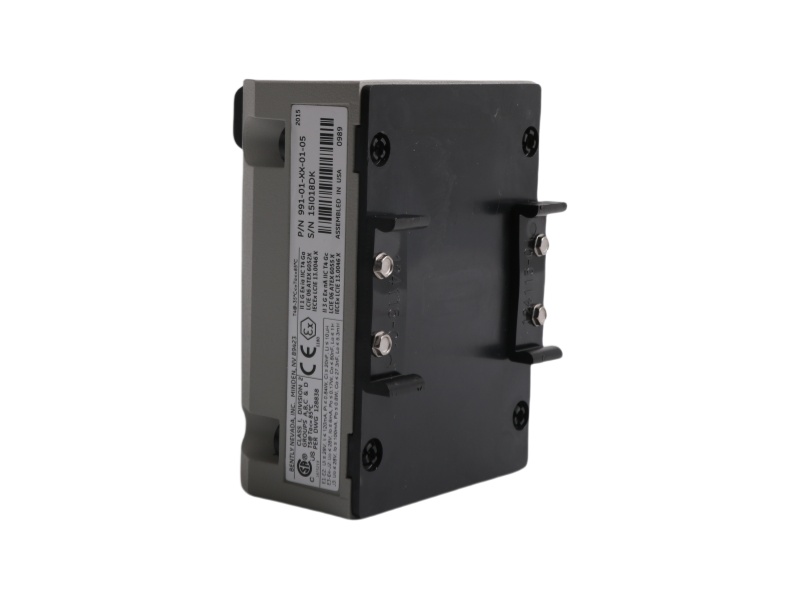

7. Choice of DIN-rail clips or bulkhead mounting screws as standard options simplifies mounting.
8. Potted construction for high humidity (up to 100% condensing) environments.
9. Compatibility with 3300 NSv proximity probe allows transducer installation in small areas with minimal
