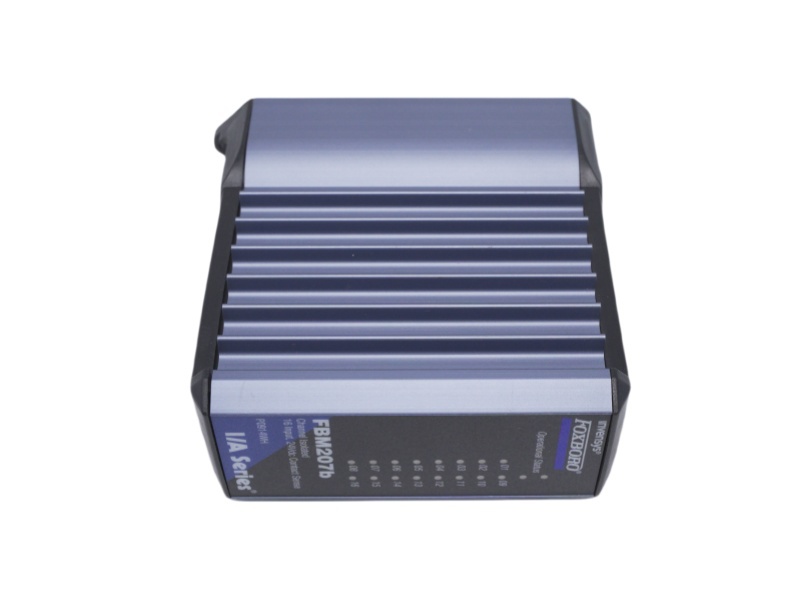

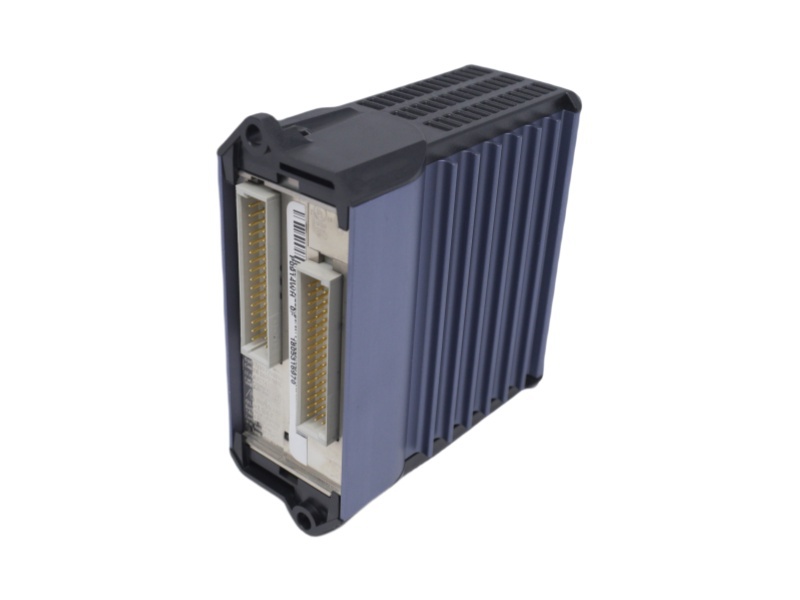

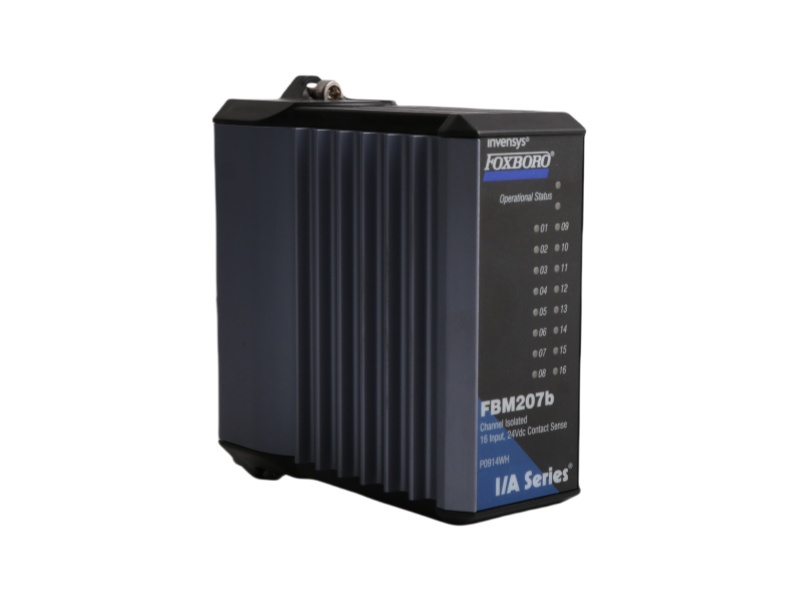

FBM207B Product datasheet
|
Model number: |
FBM207B |
|
Module Type： |
Contact Sense Input Module |
|
Manufacture: |
Foxboro |
|
Condition： |
Brand New |
|
Range of Product: |
I/A Series |
|
Lead time： |
In Stock |
|
Weight: |
0.32kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4.5x11x11.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
FBM207B Functional Description
The FOXBORO FBM207B module is designed for exceptional performance in demanding industrial environments, providing unmatched accuracy in voltage monitoring and contact sensing. This input module ensures reliable and precise data acquisition, making it a key component for systems requiring high levels of accuracy in critical applications.
Compatible with a variety of control systems, the FOXBORO FBM207B module integrates easily into existing automation infrastructures, simplifying system upgrades and expansions. Its versatility allows for seamless communication with a wide range of PLCs and DCS systems.
The FOXBORO FBM207B module is built with high isolation levels, minimizing electrical interference and enhancing system safety. This feature is essential for maintaining the integrity of electrical signals and reducing the risk of malfunction in complex industrial processes.
With a compact design, the FOXBORO FBM207B module maximizes space efficiency in control cabinets, making it ideal for applications with limited space. Additionally, its wide operating temperature range and rugged construction ensure reliable operation in extreme conditions, whether in high or low temperatures, making it a dependable solution for year-round deployment in harsh environments.
Key features of the FBM207/b/c modules are:
1.Sixteen discrete inputs
2. Supports discrete input signals at voltages of:
• 15 to 60 V dc - contact sense
• 120 V ac/125 V dc - voltage monitoring or switch inputs
• 240 V ac - voltage monitoring or switch inputs
3.Each input is galvanically isolated. Group isolated with external excitation
4.Single or redundant modules
5.Compact, rugged design suitable for enclosures in Class G3 (harsh) environments
6.Executes programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events with configurable Input Filter Time option
7.Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM207
8.Termination Assemblies for per channel internally and/or externally loop powered devices
9.Various Termination Assemblies (TAs) have additional signal conditioning hardware that provides voltage attenuation and optical isolation.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
