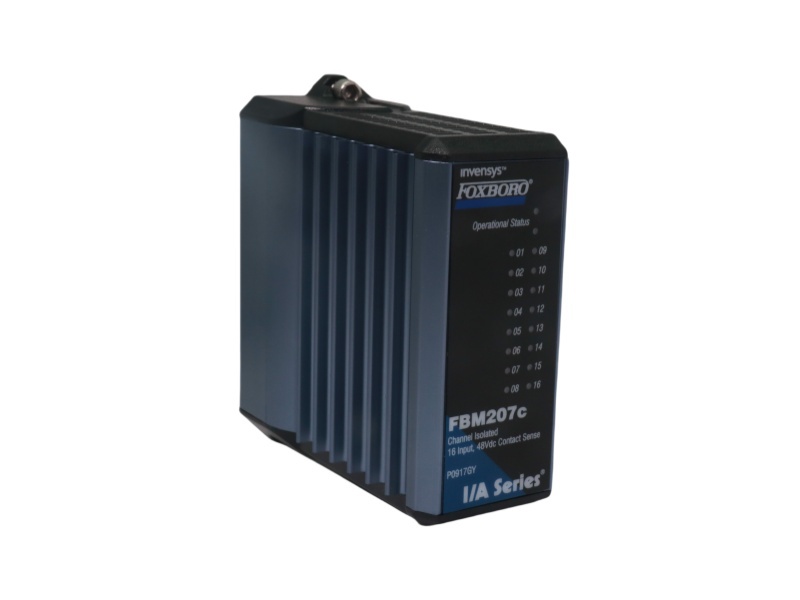

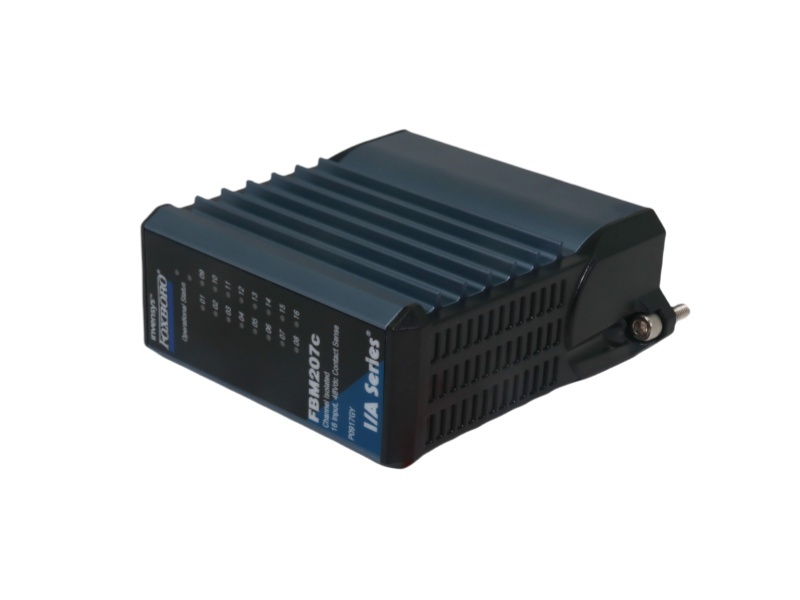

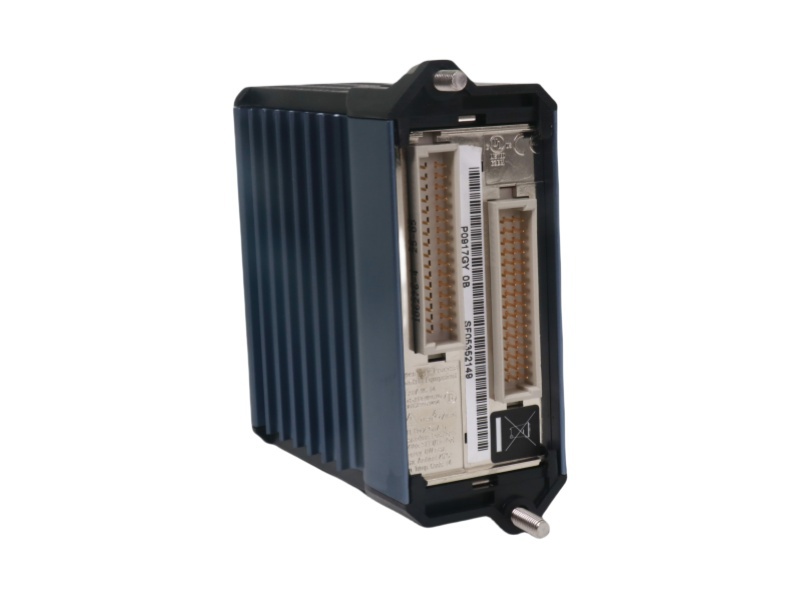

FBM207C Product datasheet

FBM207C Functional Description

The FOXBORO FBM207C module is designed for seamless integration into complex industrial networks, delivering exceptional reliability and precision. Its rugged construction enables it to perform continuously, even in harsh environmental conditions, making it ideal for industries such as manufacturing, chemical processing, and more. The FOXBORO FBM207C module ensures stable operation, regardless of external challenges.

This versatile module supports a wide variety of input types, allowing compatibility with a range of sensors. Its ability to handle different signal types ensures smooth integration into existing infrastructure, making it an adaptable solution for many industrial applications.

The FOXBORO FBM207C also features advanced communication protocols, including MODbus RTU and DeviceNet. These protocols enable easy and efficient connectivity with PLCs, DCS systems, and other automation devices, simplifying setup and enhancing control over industrial processes.

Performance-wise, the module operates with low power consumption of just 5 Watts, reducing operational costs while maintaining high functionality. Its wide temperature range of -40°C to +85°C guarantees reliable operation across diverse environments. Additionally, the IP65 rating ensures dust and water resistance, making the FOXBORO FBM207C module perfect for outdoor installations and areas with high exposure to contaminants.

Key features of the FBM207/b/c modules are:

1.Sixteen discrete inputs

2. Supports discrete input signals at voltages of:

• 15 to 60 V dc - contact sense

• 120 V ac/125 V dc - voltage monitoring or switch inputs

• 240 V ac - voltage monitoring or switch inputs

3.Each input is galvanically isolated. Group isolated with external excitation

4.Single or redundant modules

5.Compact, rugged design suitable for enclosures in Class G3 (harsh) environments

6.Executes programs for Discrete Input, Ladder Logic, Pulse Count, and Sequence of Events with configurable Input Filter Time option

7.Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM207

8.Termination Assemblies for per channel internally and/or externally loop powered devices

9.Various Termination Assemblies (TAs) have additional signal conditioning hardware that provides voltage attenuation and optical isolation.
