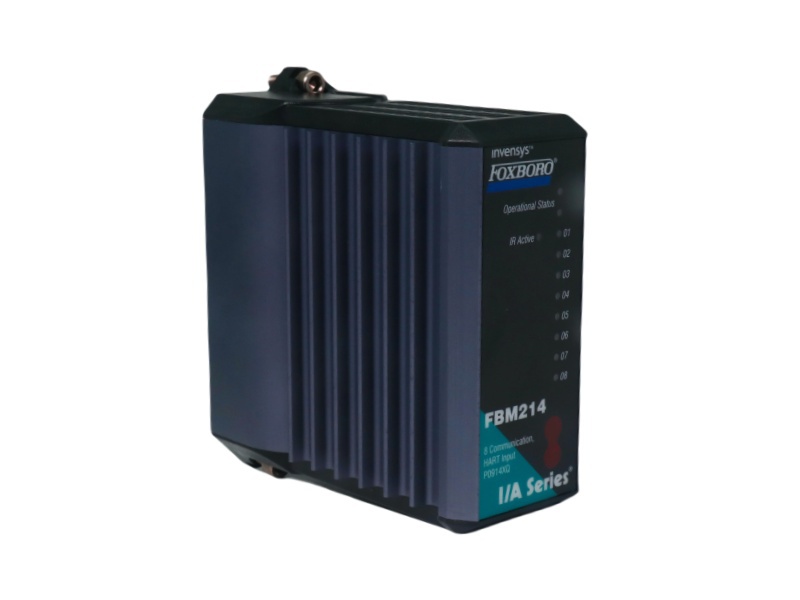

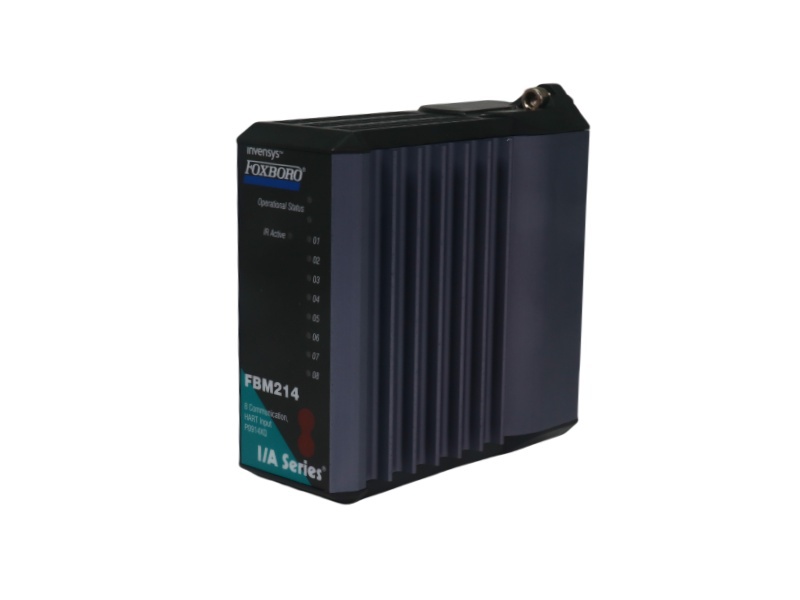

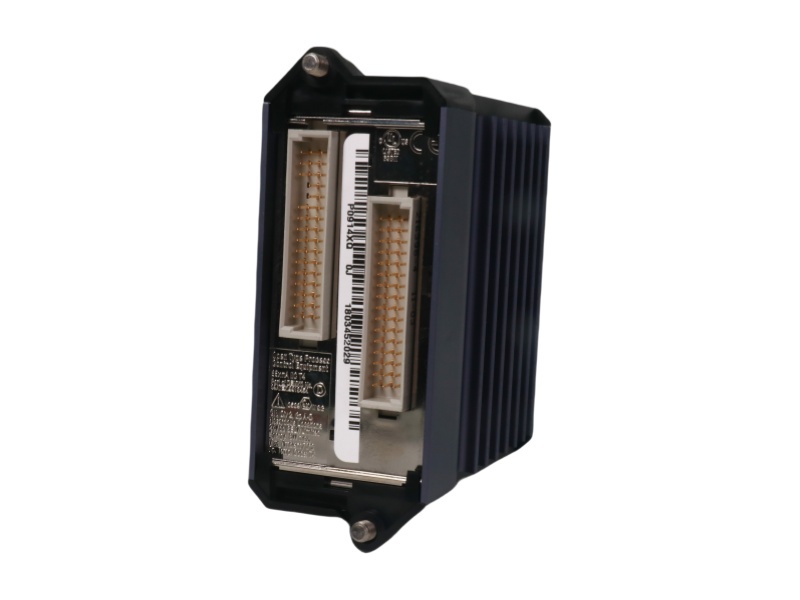

Foxboro FBM214 HART Communication Input Interface Module

Inquiry now

FBM214 Product datasheet

Model number:	FBM214	Module Type：	HART Communication Input Interface Module
Manufacture:	Foxboro	Condition：	Brand New
Range of Product:	I/A Series	Lead time：	In Stock
Weight:	0.32kg	HS CODE：	8537101190
Dimension:	4.6x11x11.5cm	MOQ:	1
Product Origin:	USA	System：	DCS
Discontinued on:	Dec 31,2018	Communication Service:	Ethernet router

FBM214 Functional Description

The FBM214 HART Communication Input Interface Module contains eight 4 to 20 mA group isolated analog input channels. The FBM214 HART Communication Input Interface Module supports any mix of standard 4 to 20 mA devices and HARTdevices.

The FBM214 HART Communication Input Interface Module serves as a HART communications field device host, enabling the I/A Series system to request and receive two digital messages per second from the field device. The message pass-through capability can be used to support HART universal, common practice, and device-specific commands, but not the burst communication mode. These commands are implemented using the Intelligent Field Device Configurator (IFDC — refer to PSS 21S-8A3 B3 for details).

The FBM214 HART Communication Input Interface Module provides a common isolated power supply to power all eight channels. Optionally, the channels can be powered by an external power supply. However, when a common external power supply is used with two or more channels, a Cable Balun module is required to prevent channel cross talk.

FEATURES

Key features of the FBM214 module are:

1. Eight analog input channels, each accepting oneof the following inputs:

• Standard 4 to 20 mA analog sensor signal

• Digital HART Frequency Shift Keying (FSK)signal superimposed on a 4 to 20 mA analoginput signal.

2. FSK modem dedicated to each input channel for bi-directional digital communications with a HART field device

3.Analog to digital conversion of each of the 4 to 20 mA input signals from the HART devices Support for the HART universal commands necessary to interface the field device with the I/A Series® system database

4.Galvanic isolation of the group of 8 input channels from ground and module logic

5. Compact, rugged design suitable for enclosure in Class G3 (harsh) environments

6. High accuracy achieved by sigma-delta data conversions for each channel

8.Termination Assemblies (TAs) for locally or remotely connecting field wiring to the FBM214

9.Termination Assemblies for per channel internally and/or externally loop powered transmitters.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

Foxboro	FBM4/39/44 P0500RY	Foxboro	FBM215	Foxboro	FBM202 P0914ST
Foxboro	FBM3A/33A P0500RU	Foxboro	FBM214B P0927AH	Foxboro	FBM2/36 P0500RG
Foxboro	FBM242 P0916TA	Foxboro	FBM214	Foxboro	FBM1/37/43 P0400HH
Foxboro	FBM231	Foxboro	FBM207C	Foxboro	FBI10E P0972AJ
Foxboro	FBM228 P0922QS	Foxboro	FBM207B	Foxboro	FCP270 P0917YZ
Foxboro	FBM223 P0917HD	Foxboro	FBM206	Foxboro	FCM10EF
Foxboro	FBM222 P0926TL	Foxboro	FBM205 P0914XG	Foxboro	FCM10E P0914YM
Foxboro	FBM219 P0916RH	Foxboro	FBM204	Foxboro	FCM10E
Foxboro	FBM218 P0922VW	Foxboro	FBM203 P0914SV	Foxboro	P0904AK
Foxboro	FBM217 P0914TR	Foxboro	FBM202 P0926EQ	Foxboro	P0903CW

I/A Series Introduction

The Foxboro I/A Series® system, as introduced in 1987 was claimed to be ahead of its time. Fast forward to the current generation of automation technologies and Emerson is the clear choice to move your business forward for decades to come. Aging I/A Series systems need to be modernized and Emerson is committed to making your transition to a DeltaV™ system, smooth, low risk and cost effective. From early modernization planning to long term lifecycle care, Emerson has provided industry leading solutions and service to complete more than 130 projects replacing Foxboro I/A Series systems. Partner with us for your transformation to a digital architecture, resulting in improved business performance and competitive edge.

I/A SERIES TOOLS SUITE

Tools Suite is a collection of tools that make I/A Series Systems more useful and applications easier to develop.

The suite consists of the following products:

1.cpShell - Supports the execution of programs and scripts from sequence blocks.

2.FBMTrack - Allows rapid identification of all blocks associated with a particular FBM. In addition, this utility graphically illustrates the inuse I/O points per FBM and provides quick access to the I/A Series Detail Display for the related control block.

3.SSCSupport - Supports those programs that cannot read and manipulate the status bits required to implement I/A Series Supervisory Setpoint Control, provides a means of tying external computers to I/A Series control blocks with a minimum effort.

4.TagSearch - Provides quick access to the I/A Series detail display for a specified control block. This utility supports filtering by block mname.
