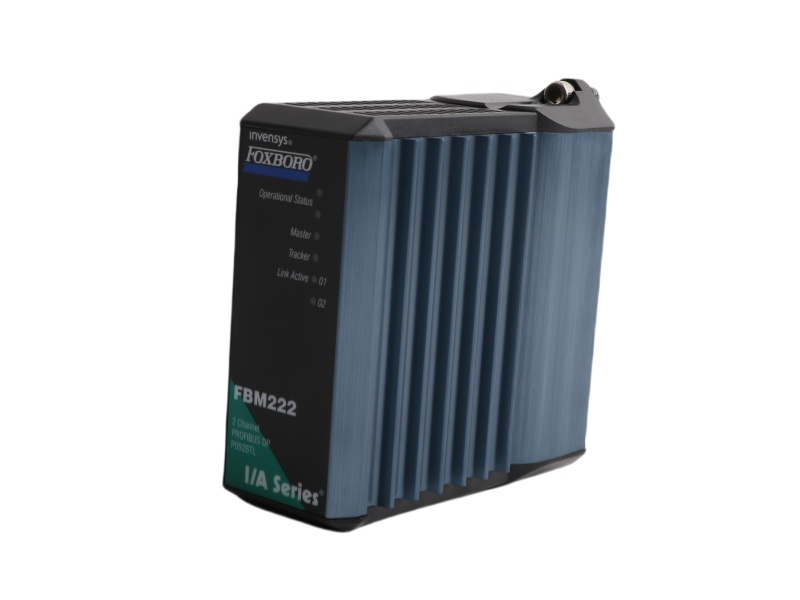

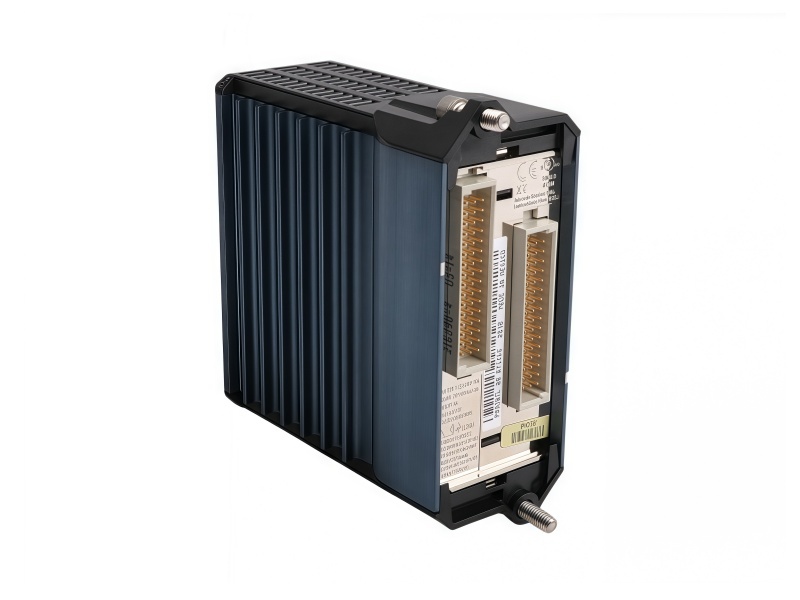

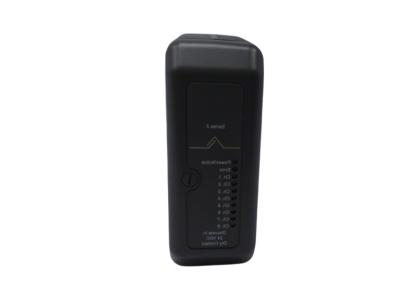

FBM222 P0926TL Product datasheet
|
Model number: |
FBM222 P0926TL |
|
Module Type： |
PROFIBUS Communication Module |
|
Manufacture: |
Foxboro |
|
Condition： |
Brand New |
|
Range of Product: |
Evo Process Automation System |
|
Lead time： |
In Stock |
|
Weight: |
0.3 kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
4.5x11x11.5cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
DCS |
|
Discontinued on: |
Dec 31,2018 |
|
Communication Service: |
Ethernet router |
FBM222 P0926TL Functional Description
The FBM222 P0926TL is a key communication module designed to facilitate seamless integration between the Foxboro Evo control system and PROFIBUS-DP/PA slave devices, such as motor drives, I/O modules, and various field devices. Acting as a bridge, the FBM222 P0926TL enables reliable and high-speed communication between the Foxboro Evo system and a wide range of PROFIBUS-compatible devices, ensuring smooth data exchange for process automation and control.
With the FBM222 P0926TL, users can connect multiple slave devices to the control system, enhancing the flexibility and scalability of industrial automation networks. The module supports both PROFIBUS-DP and PROFIBUS-PA protocols, making it suitable for different types of field devices, whether they are designed for process control or discrete automation.
The FBM222 P0926TL ensures robust performance in demanding environments, providing reliable communication even in complex systems with numerous connected devices. Its compatibility with the Foxboro Evo control system and PROFIBUS standards makes the FBM222 P0926TL an essential component for ensuring efficient, real-time data exchange and monitoring in industrial applications
FBM222 P0926TL Technical Information
1.Integrates PROFIBUS-DP/PA slave devices into the I/A Series control system
2.Conforms to the PROFIBUS-DP Specification IEC61158 Part 3
3.Supports up to 125 slave devices per port with full 244 byte data transfer
4.Maximizes uptime by providing redundant TAs, hot-swappable redundant FBM modules, and fully redundant communication between the FBM222 and fault-tolerant control processors
5.Enables addition, modification and removal of devices without impacting on-going operations
6.Propagates the PROFIBUS-PA device values and status to I/A Series control blocks
7.Provides a user-selectable status parameter for input data as well as read-back values for output data
8.Supports PROFIBUS-DP Class 1 and Class 2 Masters along with multi-master configurations
9.Provides two galvanically isolated PROFIBUS channels
Suitable for installation in Class 1, Division 2 and Zone 2 locations
Supports the FBM223 Termination Assembly allowing a simple upgrade from an FBM223 while maintaining existing wiring and cable.
If you have other request contact our team to get customized service
Call +86 18159889985 to be connected with our Manager Stella
Email to sales6@apterpower.com get your best quotation
For the quick assistance message us on WhatsApp at +86 18159889985 now!
|
