IC693ALG442 Product datasheet
Model number: |
IC693ALG442 |
|
Module Type: |
Combination Module |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
Fanuc |
|
Lead time: |
In Stock |
Weight: |
0.2 kg |
|
HS CODE: |
8537101190 |
Dimension: |
3.6x13x13.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693ALG442 Functional Description

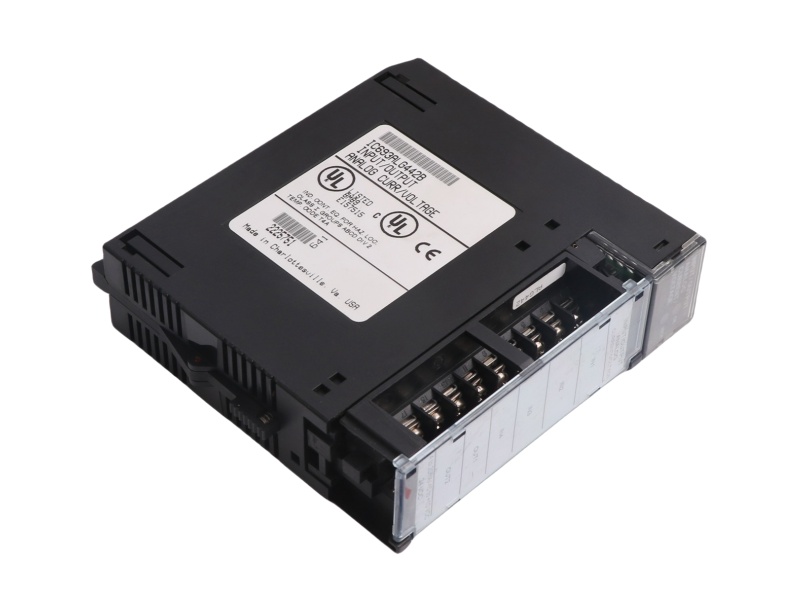

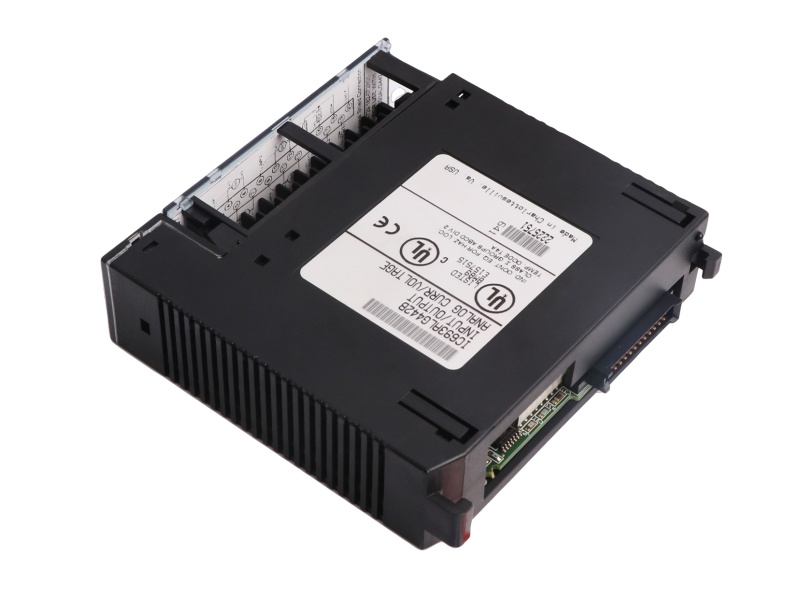

The IC693ALG442 is an advanced combination module from GE Fanuc's Series 90-30 PLC platform. This module integrates both analog input and output capabilities, offering four input channels and two output channels, making it highly versatile for industrial automation applications. The input channels support a wide range of signal types, including unipolar and bipolar voltage inputs, as well as current inputs ranging from 0 to 20 mA and 4 to 20 mA. The two analog output channels support both unipolar and bipolar signals, with output ranges of 0 to +10 volts, -10 to +10 volts, and current signals of 4 to 20 mA.
Each input channel on the IC693ALG442 Analog Current/Voltage Combination Module provides differential inputs, with an update rate of 8 milliseconds, ensuring efficient and precise signal processing. The resolution of each input type varies depending on the signal, with a 5 µA resolution for both 0-20 mA and 4-20 mA inputs. The module is designed with high accuracy, offering a full-scale absolute accuracy of ±0.25% at 25°C for input signals.
For the output channels, the IC693ALG442 Analog Input I/O features single-ended outputs with an update rate of 4 milliseconds. These outputs offer a resolution of 0.625 µA and 0.5 µA for the 4-20 mA range, with typical accuracy of ±0.1% and a maximum accuracy of ±0.25% at 25°C. Additionally, the module operates with an external supply voltage range of 20 to 30 VDC, with a nominal supply of 24 VDC. The power consumption of the module is 95 mA from the internal +5V supply and 129 mA from the external supply.

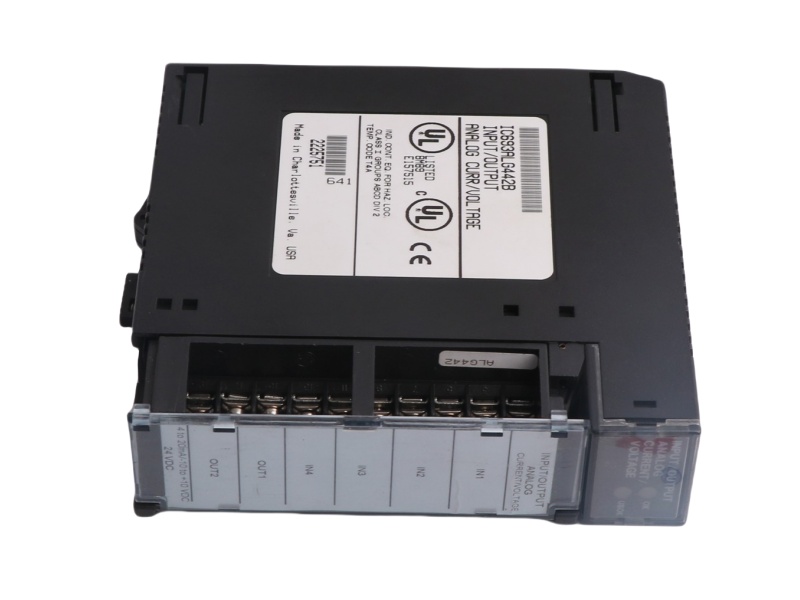

The General Electric IC693ALG442 On Sale Large Stock Plc Controller offers fault detection in current mode, ensuring reliability. It also includes features for status updates, including overload detection, open-wire faults, and system power status updates. This combination module simplifies field wiring via a 20-terminal connector block, making installation and maintenance efficient. The unipolar mode, which is the default, allows for user data scaling, and the module automatically adjusts out-of-range values to the nearest valid value before sending them to the ADC.
If you have other request contact our team to get customized service
