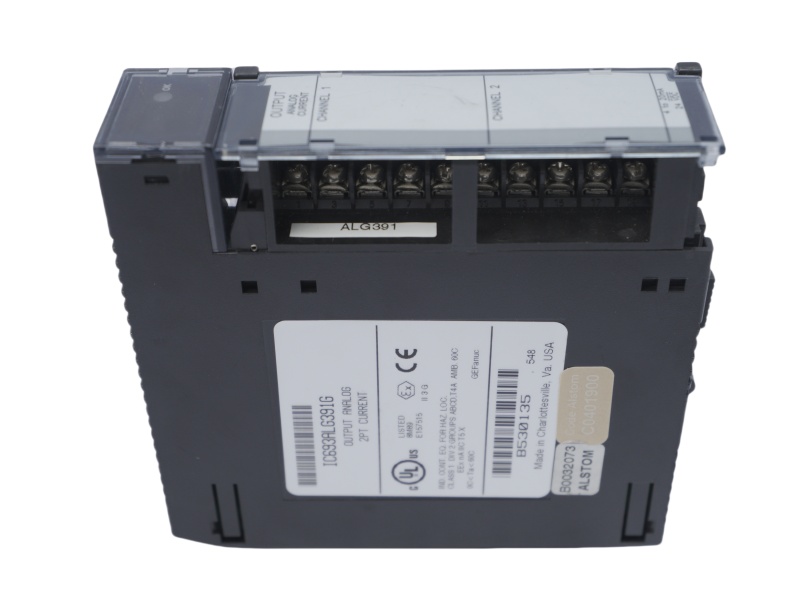

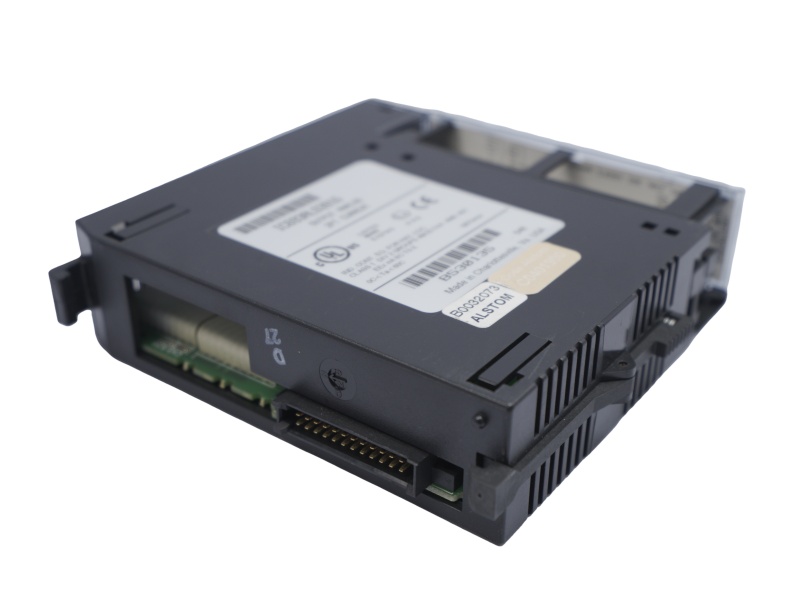

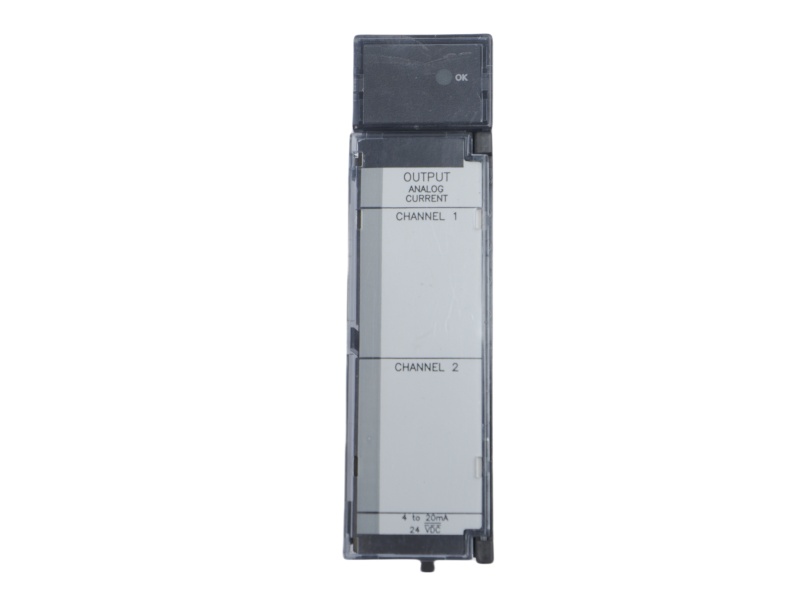

IC693ALG391 Product datasheet
Model number: |
IC693ALG391 |
|
Module Type: |
Analog Current Output Module |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
Fanuc |
|
Lead time: |
In Stock |
Weight: |
0.34 kg |
|
HS CODE: |
8537101190 |
Dimension: |
3.5x13x13.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693ALG391 Functional Description
The IC693ALG391 is a high-performance analog output module originally manufactured by GE Fanuc Automation, now under Emerson Automation. Designed for the Series 90-30 PLC, the IC693ALG391 provides two analog output channels capable of generating both current and voltage signals, including 0-20 mA, 4-20 mA, 1-5 VDC, and 0-5 VDC. With its precise resolution of 4µA for 4-20 mA, 5µA for 0-20 mA, 1 mV for 1-5 VDC, and 1.25 mV for 0-5 VDC, the IC693ALG391 ensures accurate control of industrial devices such as control valves, dampers, and Variable Frequency Drives (VFDs).
The IC693ALG391 Analog Current Output Module is also suitable for signal retransmission and interfacing with panel meters, data loggers, and other receiving equipment. It operates with a backplane current draw of 30 mA from the +5V supply and 215 mA from the isolated +24 VDC backplane or an external power source. This module is known for its reliability and precision, making it a critical component in industrial automation systems.
In summary, the GE Fanuc IC693ALG391 Analog input 16 bit Module is a versatile and efficient solution for applications requiring precise analog output control. Its robust design and high accuracy make it a preferred choice for engineers and technicians working with Series 90-30 PLC systems. Whether used for modulating control devices or signal interfacing, the IC693ALG391 Series 90-30 I/O LINK Master Module delivers consistent performance in demanding industrial environments.
If you have other request contact our team to get customized service
