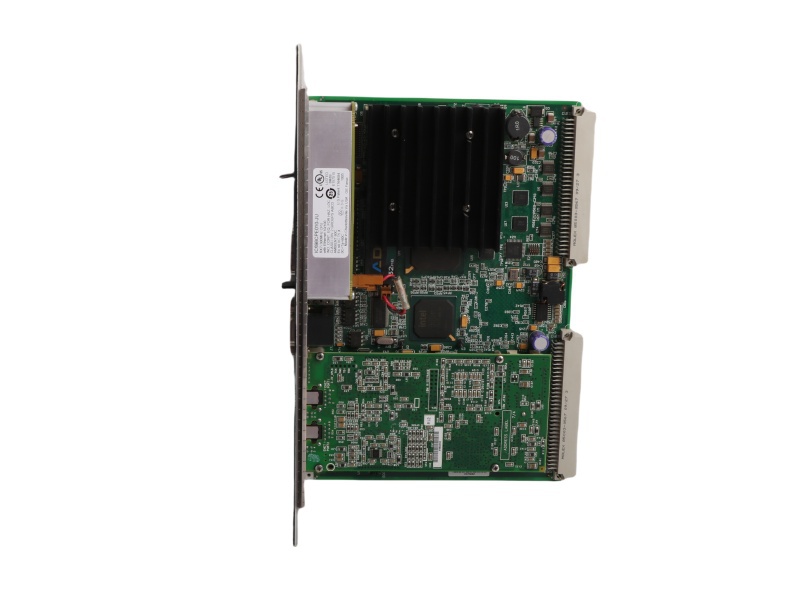

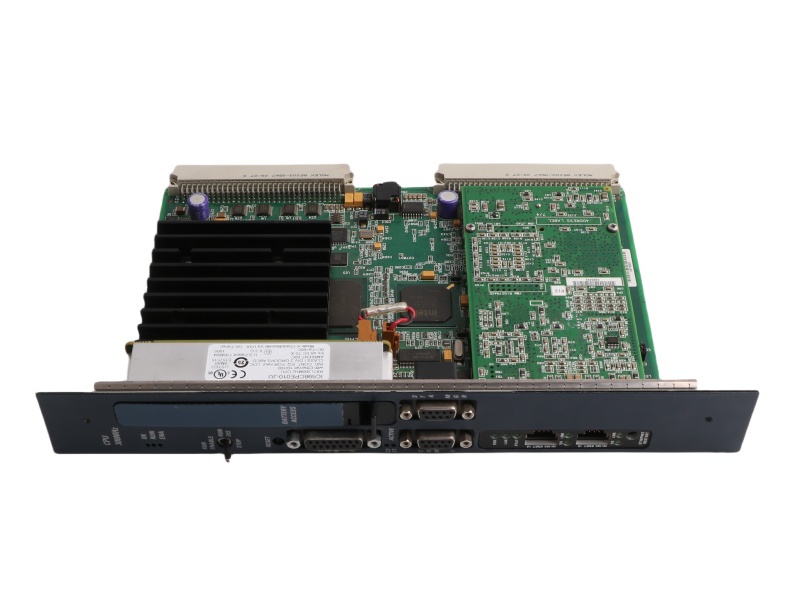

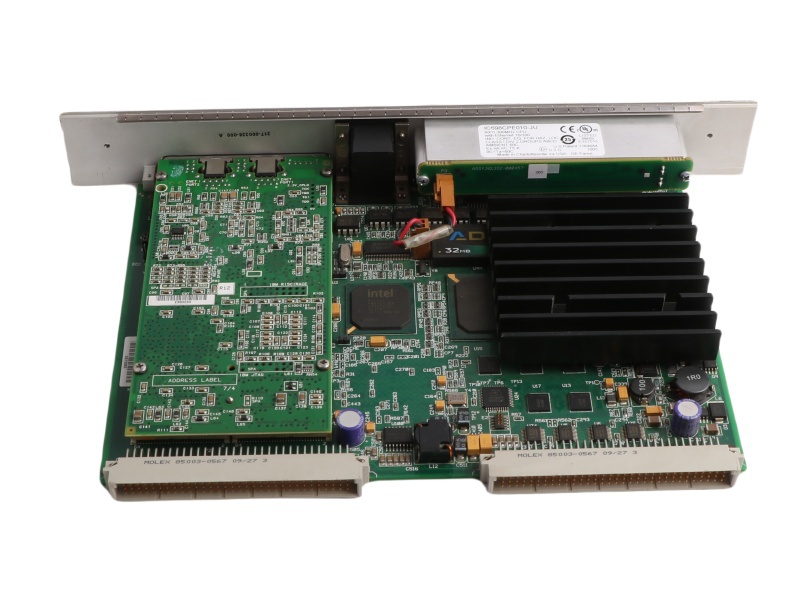

GE Fanuc IC698CPE010 RX7i CPU Module

Inquiry now

IC698CPE010 Product datasheet

Model number:	IC698CPE010	Module Type：	CPU Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	Rx7i PACsystem	Lead time：	In Stock
Weight:	0.62kg	HS CODE：	8537101190
Dimension:	4x18.3x29.1cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC698CPE010 Functional Description

The IC698CPE010 is a high-performance Central Processing Unit (CPU) module that is part of Emerson's PACSystem RX7i platform, designed to manage large, complex automation applications. This IC698CPE010 Central Processing Unit (CPU) module features an Intel Celeron 300 MHz microprocessor, providing fast Boolean execution with 0.33 ms per 1,000 Boolean contacts/coils. It supports up to 512 program blocks, each with a maximum size of 128 KB, and has 10 MB of battery-backed RAM and 10 MB of non-volatile memory for data storage.

The IC698CPE010 Central Processing Unit (CPU) module is capable of handling a large I/O capacity, supporting up to 32Kbits for discrete (%I) and (%Q), as well as 32K words for analog (%AI) and (%AQ) data. It also supports floating-point operations and features multiple communication interfaces, including RS-232, RS-485, and dual Ethernet ports. The Ethernet interfaces allow for high-speed data exchange, supporting protocols like EGD, SRTP, MODBUS TCP, and more. Additionally, the IC698CPE010 Central Processing Unit (CPU) module supports Media Redundancy Protocol (MRP) and operates with auto-negotiation for transmission speeds of 10/100 Mbps.

With three serial ports and dual Ethernet interfaces, the IC698CPE010 Central Processing Unit (CPU) module provides versatile connectivity, enabling communication with various modules and devices through both serial and Ethernet protocols. The module is configured using the Proficy Machine Edition software, making it easier to program and maintain. This CPU is ideal for handling real-time control, data processing, and system management tasks, making the IC698CPE010 a critical component in industrial automation systems.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

Rack-based and RX7i Embedded Interfaces - Features

The RX3i CPE302/CPE305/CPE310/CPE330/CPE400/CPL410 and RSTi-EP CPE100/CPE115 embedded Ethernet interface supports a subset of these features. For a list of RX3i CPE302/CPE305/CPE310 embedded Ethernet interface features, refer to Section 1.3.2. For a list of RX3i CPE330/CPE400/CPL410 and RSTi-EP CPE100/CPE115 embedded Ethernet interface features, refer to Section 1.3.3.

▪ Full RX3i Controller programming and configuration services with inactivity timeout

▪ Periodic data exchange using Ethernet Global Data (EGD)

▪ EGD Commands to read and write PLC and EGD exchange memory over the network.

▪ TCP/IP communication services using SRTP

▪ SRTP Client (Channels)

▪ Modbus TCP Server, supporting Modbus Conformance classes 0, 1, and 2.

▪ Modbus TCP Client, supporting Modbus Conformance classes 0, 1, and Function Codes 15, 22, 23, and 24 for Conformance class 2.

▪ Redundant IP Addressing capability.

▪ Basic remote PLC monitoring from a web browser (RX7i CPU Ethernet interface only)

▪ Comprehensive station management and diagnostic tools

▪ Extended controller connectivity via IEEE 802.3 CSMA/CD 10Mbps and 100Mbps Ethernet LAN port connectors.

▪ Network switch that has Auto negotiate, Sense, Speed, and crossover detection.
