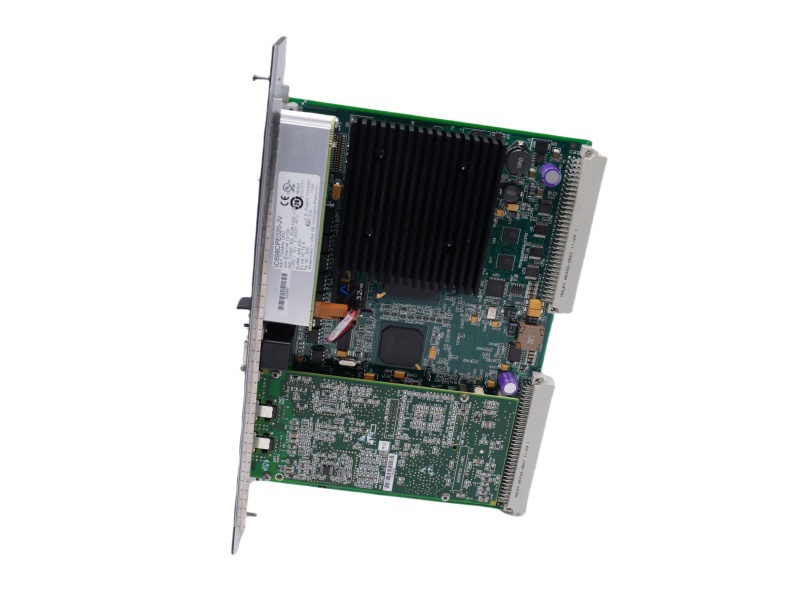

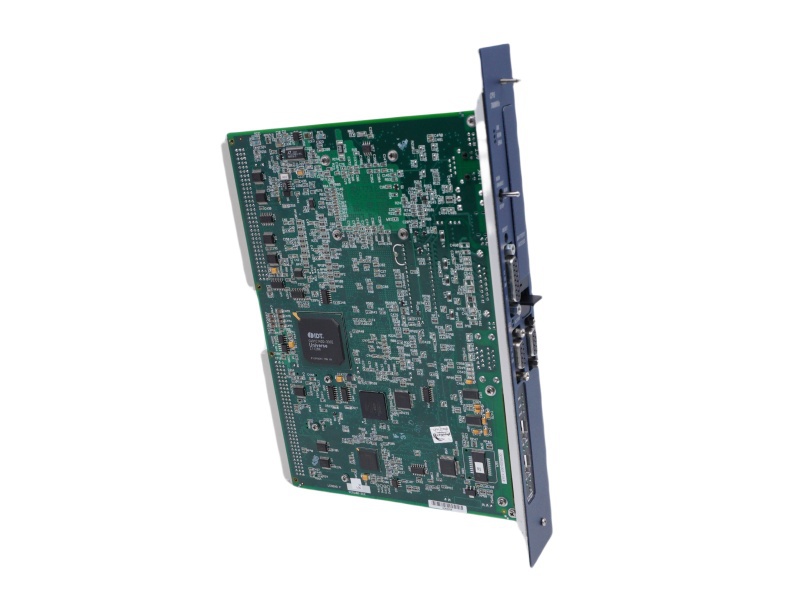

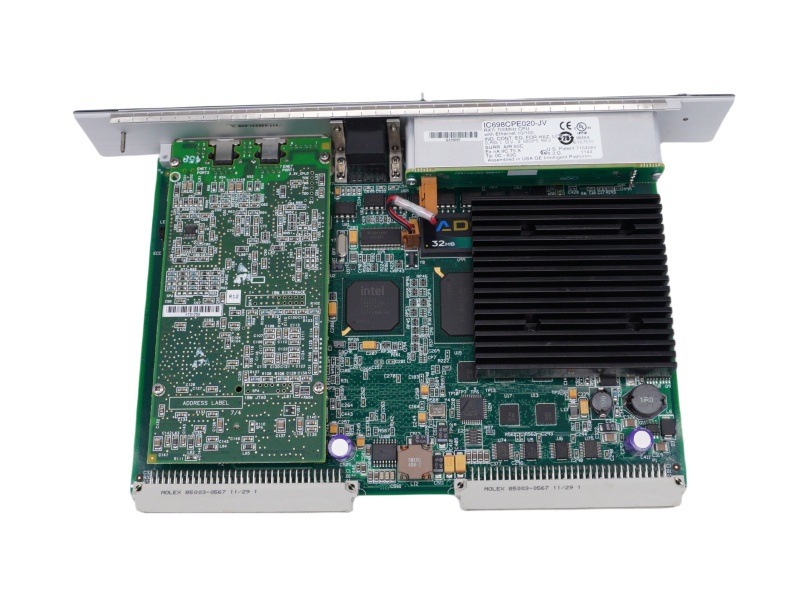

GE Fanuc IC698CPE020 Rx7i PACsystem CPU

Inquiry now

IC698CPE020 Product datasheet

Model number:	IC698CPE020	Module Type：	PLC Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	Rx7i PACsystem	Lead time：	In Stock
Weight:	0.8kg	HS CODE：	8537101190
Dimension:	4x8x29.2cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC698CPE020 Functional Description

The IC698CPE020 is a rack-mount Central Processing Unit (CPU) module within the PACSystem RX7i Programmable Automation Controller (PAC) platform, developed by Emerson Automation, which was formerly part of GE Intelligent Platforms (GE IP). This CPU is primarily designed to process user programs and manage the actuation of connected electrical loads in industrial automation systems.

Equipped with a 700 MHz Pentium III microprocessor, the IC698CPE020 Central processing Module offers impressive performance for real-time control applications. It includes 10 MB of user memory and 10 MB of non-volatile flash memory. The CPU supports up to 32K bits for discrete I/O and up to 32K words for both analog input (%AI) and output (%AQ) data. Users can download up to 512 program blocks, with each block supporting a maximum size of 128 KB.

The IC698CPE020 Central processing Module features dual Ethernet ports, capable of 10/100 Mbps transmission speeds. These ports are compatible with Ethernet Global Data (EGD), Modbus/TCP, TCP/IP, and SRTP communication protocols. The Ethernet ports also serve as the primary interface for programming and system configuration. In addition to Ethernet, the IC698CPE020 is equipped with three isolated serial ports, supporting RS232 and RS485 standards for data communication with Modbus RTU, SNP, and serial I/O devices.

As part of the RX7i platform, the IC698CPE020 Central processing Module leverages the VME64 architecture, providing high-speed data throughput and support for a wide range of embedded technologies. With built-in support for both floating-point math and Boolean functions, this CPU can be programmed using various languages such as Ladder Diagram, Function Block Diagram, Structured Text, and C. It also integrates data monitoring features, supports up to 16 concurrent Web server and FTP connections, and can synchronize time with CPU release 5.0 or later.

The IC698CPE020 Central processing Module is configured using Proficy Machine Edition Logic Developer PLC software, version 4.0 or later, ensuring streamlined programming and configuration for industrial applications.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

Rack-based and RX7i Embedded Interfaces - Features

The RX3i CPE302/CPE305/CPE310/CPE330/CPE400/CPL410 and RSTi-EP CPE100/CPE115 embedded Ethernet interface supports a subset of these features. For a list of RX3i CPE302/CPE305/CPE310 embedded Ethernet interface features, refer to Section 1.3.2. For a list of RX3i CPE330/CPE400/CPL410 and RSTi-EP CPE100/CPE115 embedded Ethernet interface features, refer to Section 1.3.3.

▪ Full RX3i Controller programming and configuration services with inactivity timeout

▪ Periodic data exchange using Ethernet Global Data (EGD)

▪ EGD Commands to read and write PLC and EGD exchange memory over the network.

▪ TCP/IP communication services using SRTP

▪ SRTP Client (Channels)

▪ Modbus TCP Server, supporting Modbus Conformance classes 0, 1, and 2.

▪ Modbus TCP Client, supporting Modbus Conformance classes 0, 1, and Function Codes 15, 22, 23, and 24 for Conformance class 2.

▪ Redundant IP Addressing capability.

▪ Basic remote PLC monitoring from a web browser (RX7i CPU Ethernet interface only)

▪ Comprehensive station management and diagnostic tools

▪ Extended controller connectivity via IEEE 802.3 CSMA/CD 10Mbps and 100Mbps Ethernet LAN port connectors.

▪ Network switch that has Auto negotiate, Sense, Speed, and crossover detection.
