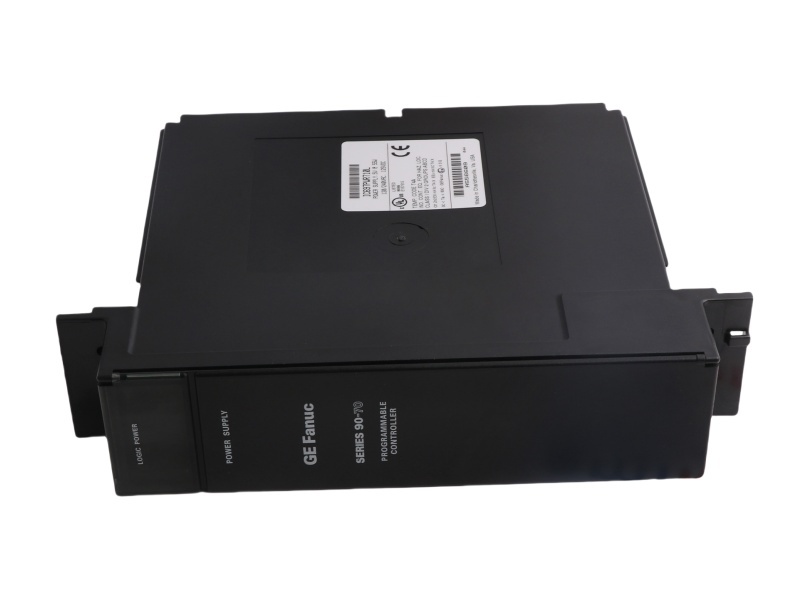

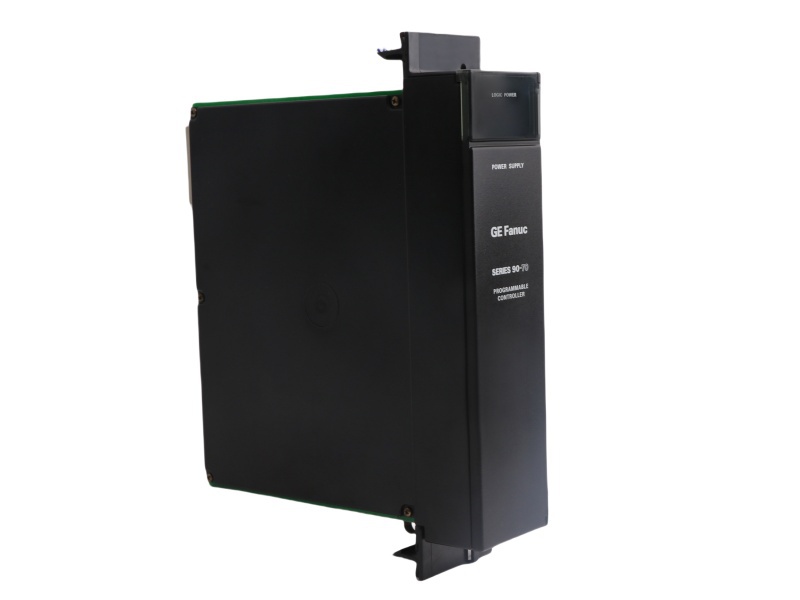

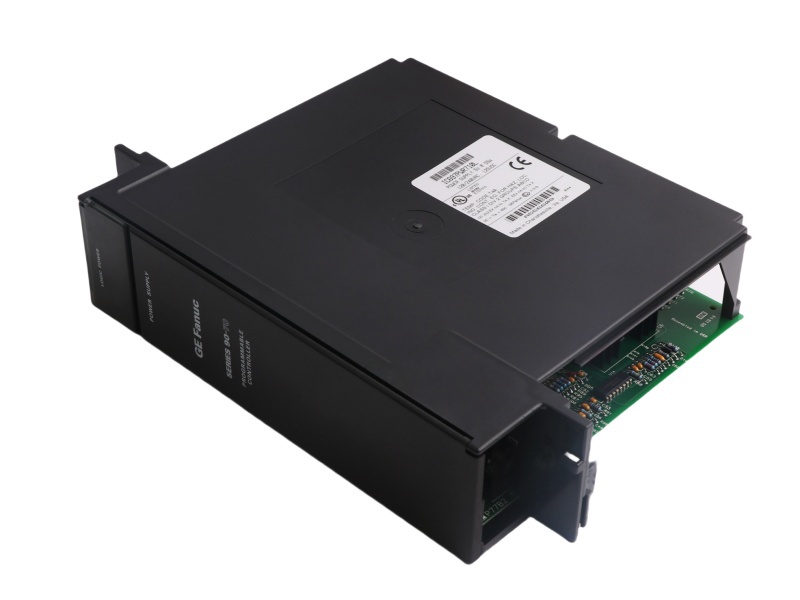

GE Fanuc IC697PWR710 Power Supply Module

Inquiry now

IC697PWR710 Product datasheet

Model number:	IC697PWR710	Module Type：	Converter Board
Manufacture:	GE	Condition：	Brand New
Range of Product:	Series 90-70	Lead time：	In Stock
Weight:	1.02kg	HS CODE：	8537101190
Dimension:	6.5x21.8x29.3cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC697PWR710 Functional Description

The IC697PWR710 is a power supply module designed for use with the GE Fanuc Series 90-70 PLC system. This module is installed on the baseplate of the Series 90-70 platform, providing essential backplane power to energize the modules connected to it. Operating with an external AC or DC power source, the IC697PWR710 power supply module supports a wide input range of 90-264 VAC at 47-63 Hz or 100-150 VDC. The module has a maximum input power of 90 Watts under full load, with a typical inrush current of 3 Amperes, and a power factor greater than 0.95.

With a nominal output voltage of 5.1 VDC and an output voltage range of 4.90-5.25 VDC, the IC697PWR710 power supply module delivers up to 56 Watts of output power. The module is equipped with integral overvoltage protection, clamping the output to 6.2 Volts, and overcurrent protection, limiting the current to 12 Amperes. These features prevent damage to the system by controlling excessive voltage and current. Furthermore, the IC697PWR710 power supply module includes a 21 ms ride-through time in case of AC input loss, ensuring stability during short power interruptions.

This power supply module also incorporates active power factor correction to maintain efficient power usage, which reduces the need for oversized circuit breakers and wiring. The IC697PWR710 power supply module is designed with noise immunity in mind and includes a dedicated ground terminal, which should be connected to the functional earth ground using AWG #12 or 3.3 mm² wire. It is installed in the leftmost slot of any standard IC697 rack or VME integrator rack, offering flexibility in system configuration.

The IC697PWR710 power supply module provides a reliable and secure power solution, ensuring that the Series 90-70 PLC system operates smoothly under various conditions.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

Series 90-70 PLC

With our CPX family of CPUs, the Series 90-70 offers more for your automation dollar—more computing power, more memory for your applications, and more communications and redundancy capabilities. And it provides increased flexibility for a variety of applications due to a wide range of isolated and high-density VME analog I/O modules.

Open Architecture

Based on the VME-bus standard, the Series 90-70 can be used with thousands of boards produced by hundreds of different manufacturers to build a solution that meets your exact needs. These include links to drives and drive systems, servo motor controllers, embedded solutions for vision systems and bus-to-bus interface modules, as well as a variety of modules available from GE (see accompanying table).

Various Degrees of Redundancy

Combining the Series 90-70 with the advanced functionality of Genius* I/O, GE Genius Modular Redundancy (GMR) systems and Hot Standby systems can provide as much or as little redundancy as you need for your critical applications.

• The versatility and strength of the GMR system make it an ideal choice for rigorous emergency shutdown and human life protection systems. It has a class 6 TÜV rating.

• Based on three isolated PLCs and extensive diagnostics, the GMR triple modular redundancy system uses two-out-of-three voting to provide high reliability and errorfree operation.

• CPU Genius Redundancy (CGR) systems achieve enhanced hot standby CPU redundancy by connecting two power supplies and two CGR CPUs to one or more Genius I/O networks.
