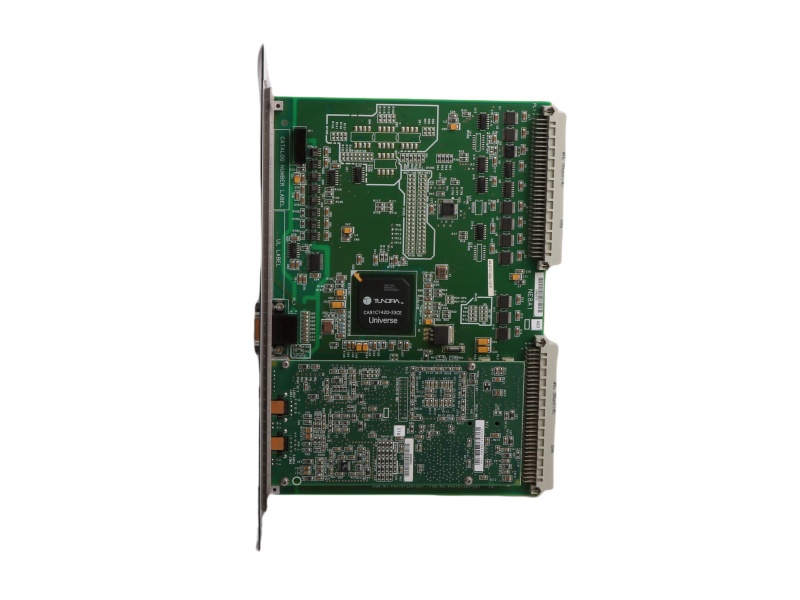

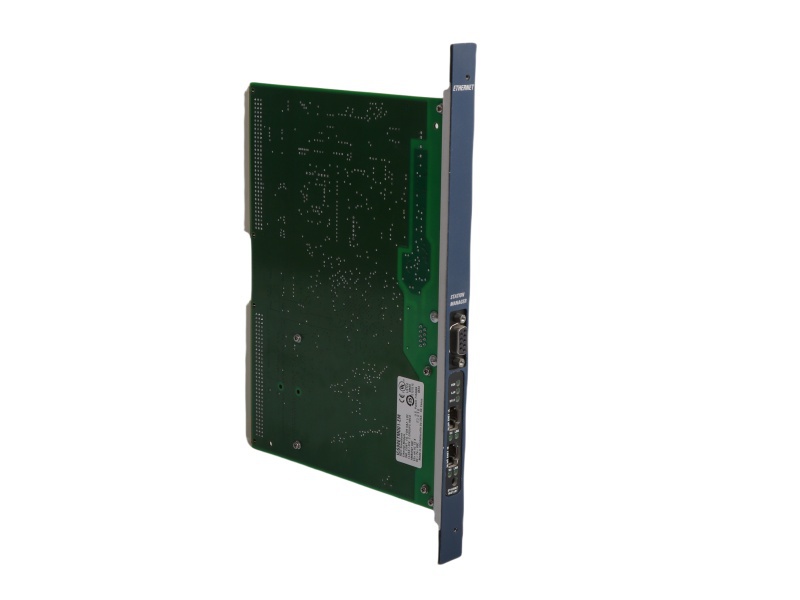

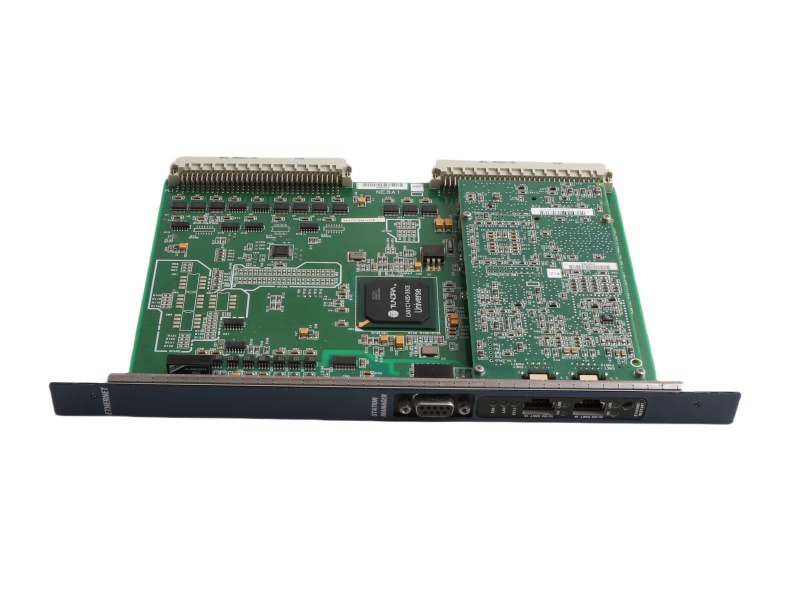

GE Fanuc IC698ETM001 RX7i Ethernet Interface Module

Inquiry now

IC698ETM001 Product datasheet

Model number:	IC698ETM001	Module Type：	PLC Module
Manufacture:	GE	Condition：	Brand New
Range of Product:	Rx7i PACsystem	Lead time：	In Stock
Weight:	0.36kg	HS CODE：	8537101190
Dimension:	2.1x17.3x29.3cm	MOQ:	1
Product Origin:	USA	System：	PLC
Discontinued on:	Active	Communication Service:	Ethernet router

IC698ETM001 Functional Description

The IC698ETM001 is an Ethernet interface module manufactured by Emerson Automation, previously GE Fanuc Automation. It is designed for use with the PACSystem RX7i Programmable Automation Controller (PAC) platform, enabling seamless connectivity to Ethernet networks for data exchange, remote I/O, communication with visualization systems, and third-party software like databases and enterprise applications.

This module features two Ethernet ports, each capable of 10/100 Mbps communication speeds with auto-sensing, and utilizes RJ45 connectors with a minimum of CAT5 cable for physical connections. The ports support daisy chaining, which allows flexible network topologies such as linear, star, and ring configurations. It also supports both unique and redundant IP addressing. Additionally, the IC698ETM001 includes a serial communication port with a 9-pin sub-D connector that supports speeds from 1200 to 115200 bps, primarily used for module configuration via the Station Manager port.

The IC698ETM001 Ethernet interface module supports multiple communication protocols, including TCP/IP, MODBUS TCP Server, and MODBUS TCP Client. It also facilitates time synchronization with an SNTP server over the Ethernet network. The module features several LED indicators such as MODULE OK, LAN ONLINE, STATUS, and LINK P1/P2, providing operators with a clear view of the module’s operational state.

A key strength of the IC698ETM001 Ethernet interface module is its dedicated microprocessor running at 200 MHz, which provides robust processing power for network management and diagnostics. The module supports redundant IP addressing and can directly connect to network hubs without the need for external transceivers. It also includes flash memory for easy application storage and updates via the CPU serial port, meeting global electrical and environmental standards.

In summary, the IC698ETM001 Ethernet interface module is an essential component for creating reliable, flexible, and high-performance industrial automation networks.

If you have other request contact our team to get customized service

One Year Warranty

We offer a one-year warranty for any quality issues with our products. If you encounter any defects or malfunctions during this period, please contact us for prompt resolution. Our warranty covers repairs or replacements, ensuring your satisfaction and peace of mind.
Shipping & Delivery

We have 10 years experience with leading logistics companies like FedEx, DHL, and SF, ensuring efficient and reliable shipping solutions. Our extensive experience in working with these carriers allows us to offer fast, secure delivery services, tailored to meet the diverse needs of our customers.
Payment Method

We accept a variety of payment methods, including T/T Bank Transfer, Alipay, and more, providing flexible options to suit our customers' preferences. This ensures a convenient and secure transaction process for all orders.

How Can I Get Your Support?

Call +86 18159889985 to be connected with our Manager Stella

Email to sales6@apterpower.com get your best quotation

For the quick assistance message us on WhatsApp at +86 18159889985 now!

You can also reach me via Skype: live:ariatang111 or WeChat: zxd18159889985!

GE	IC693ACC310	GE	IS220PPDAH1B	GE	IS220PAICH2A
GE	IC693ACC302	GE	IS220PPDAH1A	GE	IS220PAICH1A
GE	IC676PBO082	GE	IS220PGENH1AE	GE	IS230JPDMG1B
GE	IC693ALG442	GE	IS220PDOAH1B	GE	IS220YDOAS1AJ
GE	IC693ALG391	GE	IS220PDOAH1A	GE	IS220YDOAS1A
GE	IC693ALG222	GE	IS220PDOAH1A	GE	IS220YDIAS1AK
GE	IC676PBI008	GE	IS220PDIAH1AD	GE	IS220YDIAS1A
GE	IC670PBI001	GE	IS220PDIAH1A	GE	IS220YAICS1A
GE	IC670MDL740	GE	IS220PAOCH1BE	GE	IS220UCSAH1A
GE	IC670GBI102	GE	IS220PAOCH1A	GE	IS220PVIBH1A

Rack-based and RX7i Embedded Interfaces - Features

The RX3i CPE302/CPE305/CPE310/CPE330/CPE400/CPL410 and RSTi-EP CPE100/CPE115 embedded Ethernet interface supports a subset of these features. For a list of RX3i CPE302/CPE305/CPE310 embedded Ethernet interface features, refer to Section 1.3.2. For a list of RX3i CPE330/CPE400/CPL410 and RSTi-EP CPE100/CPE115 embedded Ethernet interface features, refer to Section 1.3.3.

▪ Full RX3i Controller programming and configuration services with inactivity timeout

▪ Periodic data exchange using Ethernet Global Data (EGD)

▪ EGD Commands to read and write PLC and EGD exchange memory over the network.

▪ TCP/IP communication services using SRTP

▪ SRTP Client (Channels)

▪ Modbus TCP Server, supporting Modbus Conformance classes 0, 1, and 2.

▪ Modbus TCP Client, supporting Modbus Conformance classes 0, 1, and Function Codes 15, 22, 23, and 24 for Conformance class 2.

▪ Redundant IP Addressing capability.

▪ Basic remote PLC monitoring from a web browser (RX7i CPU Ethernet interface only)

▪ Comprehensive station management and diagnostic tools

▪ Extended controller connectivity via IEEE 802.3 CSMA/CD 10Mbps and 100Mbps Ethernet LAN port connectors.

▪ Network switch that has Auto negotiate, Sense, Speed, and crossover detection.
