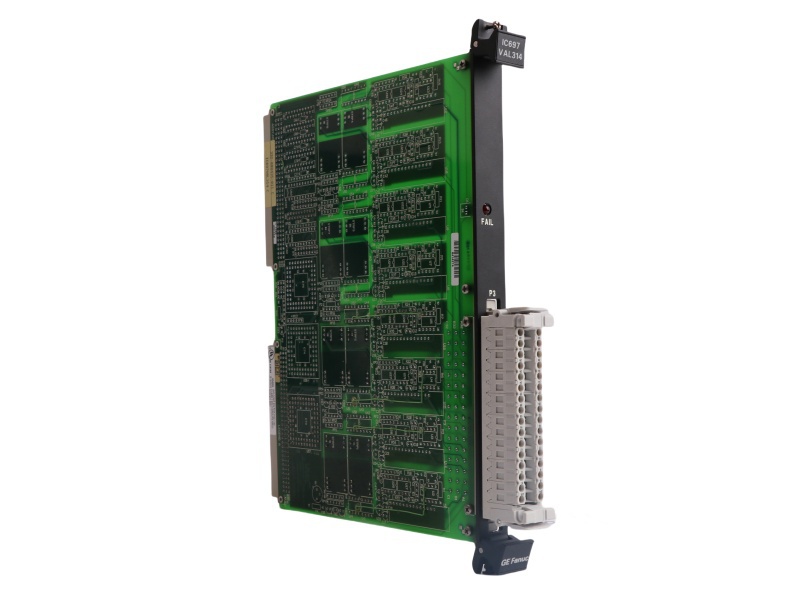

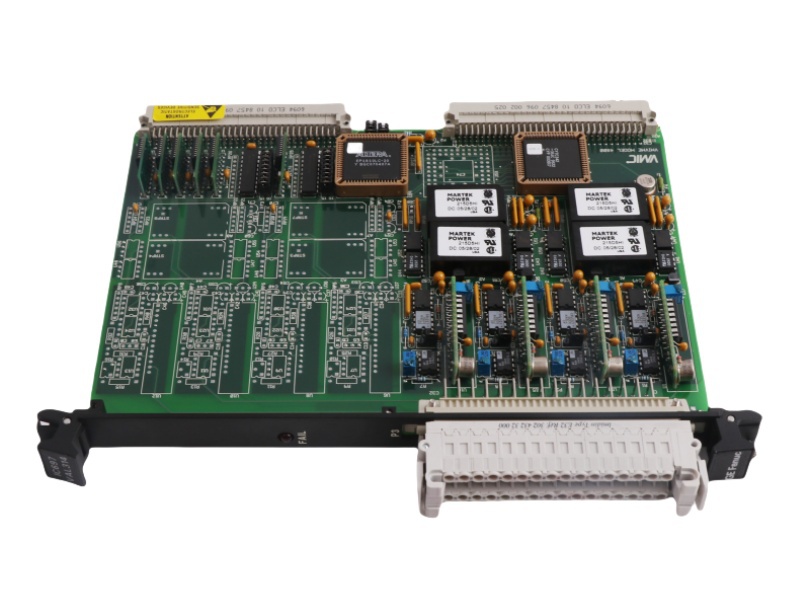

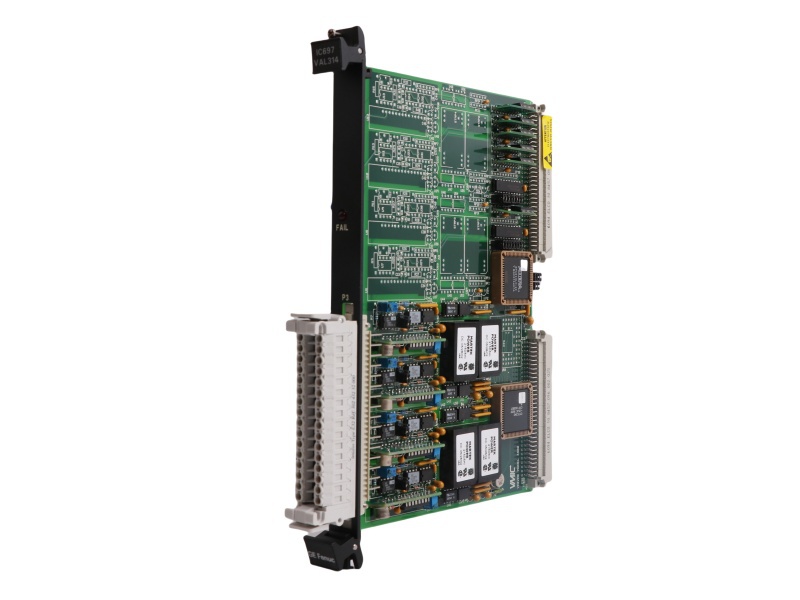

IC697VAL314 Product datasheet
|
Model number: |
IC697VAL314 |
|
Module Type： |
Converter Board |
|
Manufacture: |
GE |
|
Condition： |
Brand New |
|
Range of Product: |
Series 90-70 |
|
Lead time： |
In Stock |
|
Weight: |
0.42kg |
|
HS CODE： |
8537101190 |
|
Dimension: |
2.1x20.2x26.1cm |
|
MOQ: |
1 |
|
Product Origin: |
USA |
|
System： |
PLC |
|
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC697VAL314 Functional Description
The IC697VAL134 is a signal converter board developed by GE Fanuc Automation, designed specifically to convert analog signals into digital ones. This board incorporates a 12-bit ADC converter, offering high resolution for accurate signal processing. Once powered up, the IC697VAL134 signal converter board automatically begins scanning the input channels without the need for additional software, making it easy to deploy in various industrial applications.
The IC697VAL134 signal converter board supports an input range from +/- 50 millivolts to +/- 10 Volts DC, with built-in overvoltage protection to ensure the system operates safely under various conditions. It also offers excellent isolation, with a voltage rating of 1000 Volts DC. This converter board is equipped with a front-panel LED to display the status of its inputs, providing real-time monitoring of its operations.
The board occupies 128 bytes of I/O VMEbus space and includes jumpers for flexible installation, allowing it to be placed on any 128-byte boundary. For safe installation, the equipment should be powered down beforehand. Additionally, the IC697VAL134 signal converter board comes with factory-configured 40 Hertz input filters to prevent unwanted interference, and is organized into functional categories, including the Board ID register, BIT voltage reference, and analog input multiplexing.
To ensure optimal performance, the IC697VAL134 signal converter board may require calibration for certain applications and periodic maintenance to verify its condition and connections. This attention to detail helps maintain the reliability and longevity of the system.
