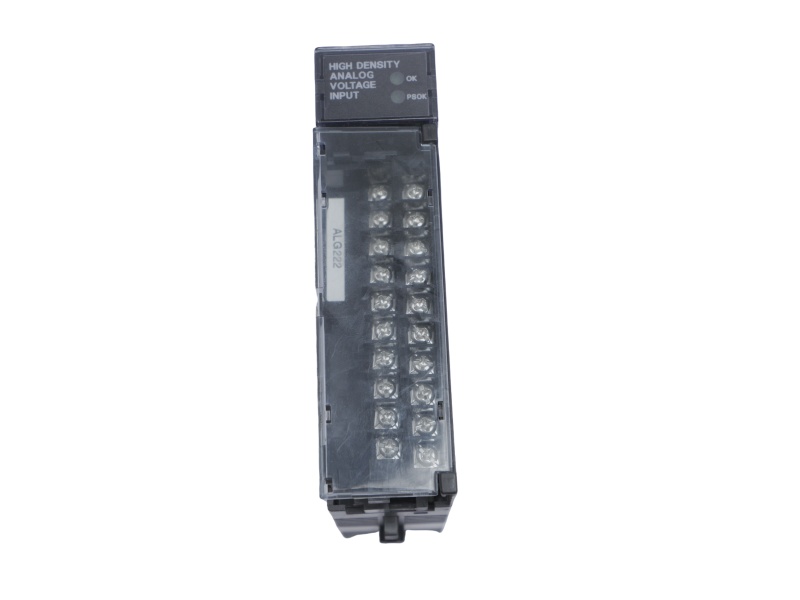

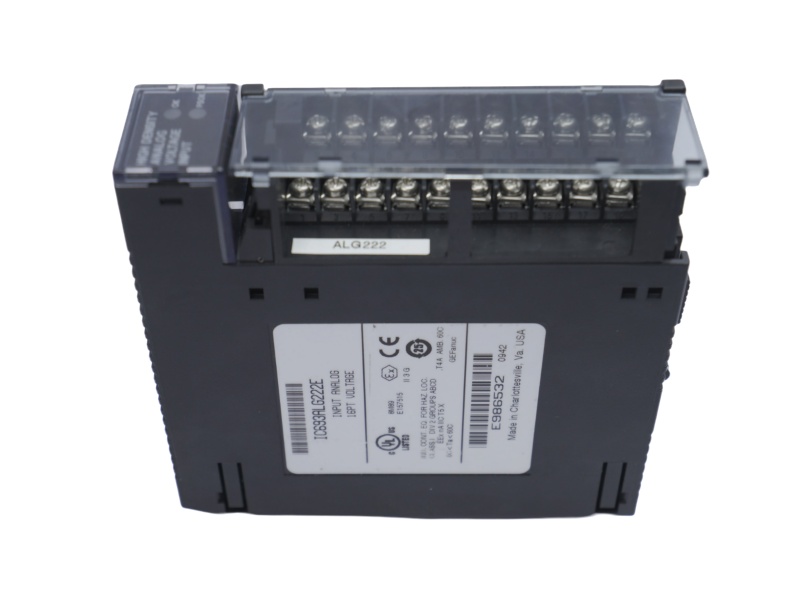

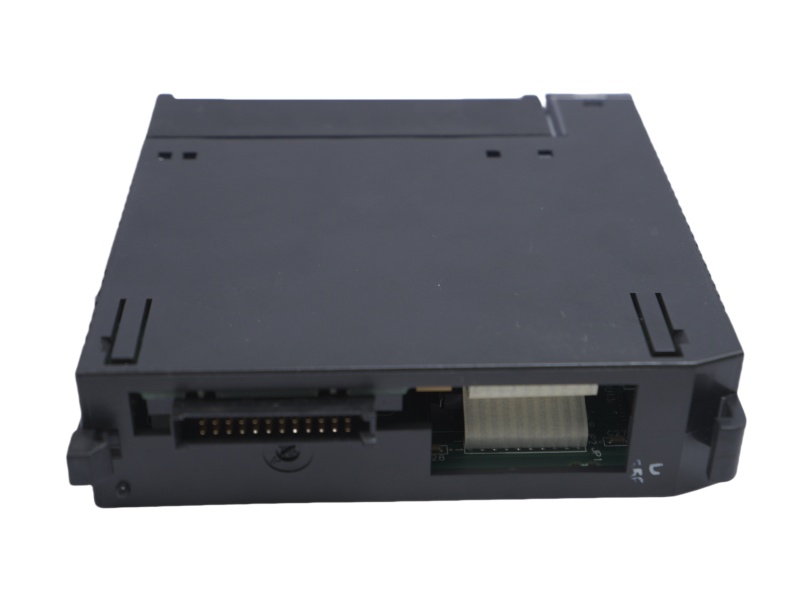

GE Fanuc IC693ALG222 Analog Voltage Input Module

GE Fanuc IC693ALG222
GE Fanuc IC693ALG222
GE Fanuc IC693ALG222

IC693ALG222 Product datasheet

Model number:

IC693ALG222



Module Type:

Analog Voltage Input Module

Manufacture:

GE



Condition:

Brand New

Range of Product:

Fanuc



Lead time:

In Stock

Weight:

0.36 kg



HS CODE:

8537101190

Dimension:

3.6x13x13.5cm



MOQ:

1

Product Origin:

USA



System:

PLC

Discontinued on:

Active



Communication Service:

Ethernet router



IC693ALG222 Functional Description


The IC693ALG222 is a high-performance analog voltage input module from the GE Fanuc Series 90-30 PLC family. It supports up to sixteen (16) single-ended or eight (8) differential voltage inputs, handling both 0-10VDC (unipolar) and -10VDC to +10VDC (bipolar) signals. Its flexibility makes it a reliable choice for industrial automation applications requiring precise data acquisition.



Each channel of the IC693ALG222-HB High Density Analog Input 16 Channel is individually configurable, ensuring adaptability to different system needs. In single-ended mode, the update rate is 6 milliseconds, while in differential mode, it improves to 3 milliseconds. The module offers a resolution of 2.5mV per LSB for 0-10VDC and 5mV per LSB for -10VDC to +10VDC. It maintains an absolute accuracy of ±0.25% at 25°C (77°F) and ±0.5% over its full operating temperature range, with excellent linearity.



For power consumption, the General Electric IC693ALG222C On Sale Large Stock Plc Controller draws 112mA from the +5VDC backplane bus and 41mA from the isolated +24VDC supply. It can be installed in 5-slot or 12-slot baseplates, with the number of supported modules varying by CPU type. It features two green LEDs indicating module and power status for easy monitoring.



With its high accuracy, flexible configuration, and seamless integration into GE 90-30 PLCs, the IC693ALG222 is an essential component for reliable industrial control systems.
