IC693BEM321 Product datasheet
Model number: |
IC693BEM321 |
|
Module Type: |
Series I/O Link Master Module |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
Fanuc |
|
Lead time: |
In Stock |
Weight: |
0.2 kg |
|
HS CODE: |
8537101190 |
Dimension: |
3.6x13x13.5cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
PLC |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
IC693BEM321 Functional Description

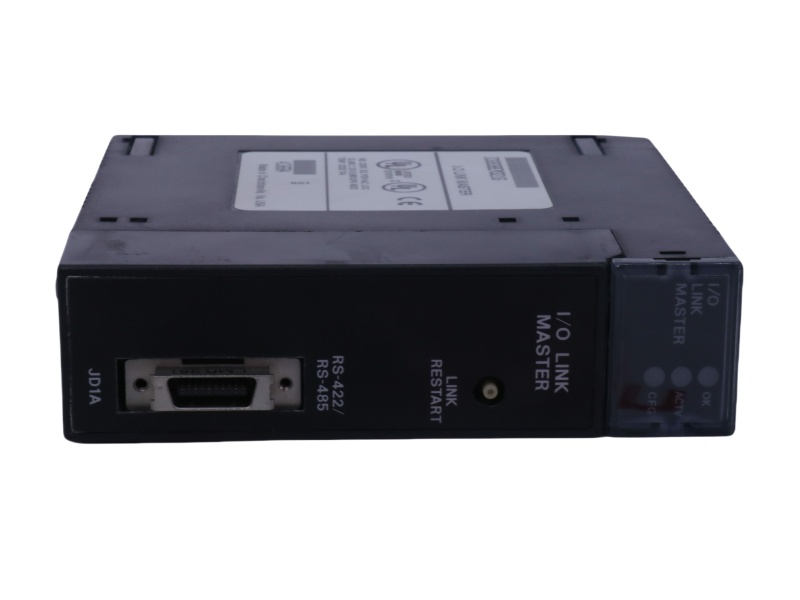

The GE Fanuc IC693BEM321 I/O Link Master Module Card is a serial interface card designed to connect up to 16 slave modules to the GE Fanuc Series 90-30 PLC systems, acting as a bridge between these modules and the system’s CPU. With the capability to receive up to 1K (1024) digital inputs, the IC693BEM321 Interface Module (Master) card can produce 1K digital outputs, transmitting command responses to field actuators. Configuration is done using either a handheld GE Fanuc programmer or proprietary software.
This module is compatible with the GE Fanuc PLC systems from the Series 90-30 and 90-70 product lines, allowing for insertion in any available slot. Up to six IC693BEM321 90-30 GE Series I/O Link Master Module can be inserted into the baseplate of a GE Fanuc PLC simultaneously, each one managing an independent I/O link for different sectors or parts of the system. The module operates with a 5 Volts DC power supply sourced directly from the baseplate, while field devices in the link require separate power.
Supporting RS-422 and RS-485 serial communication protocols, the General Electric IC693BEM321 On Sale Large Stock Plc Controller uses a 20-pin Honda socket located on the module's front. Additionally, three status LEDs indicate the module’s operational state. The module also features a reset button that can power the link on and off and is used to clear any system faults, ensuring smooth and efficient operation of the connected network.
