745-W2-P5-G5-HI-A-R-E Product datasheet
Model number: |
745-W2-P5-G5-HI-A-R-E |
|
Module Type: |
Feeder Management Relay |
Manufacture: |
GE |
|
Condition: |
Brand New |
Range of Product: |
Multilin |
|
Lead time: |
In Stock |
Weight: |
7.6 kg |
|
HS CODE: |
8537101190 |
Dimension: |
20.8x22x24.6cm |
|
MOQ: |
1 |
Product Origin: |
USA |
|
System: |
DCS |
Discontinued on: |
Active |
|
Communication Service: |
Ethernet router |
745-W2-P5-G5-HI-A-R-E Functional Description
The 745-W2-P5-G5-HI-A-R-E is a GE 745 Transformer Management Relay designed for efficient transformer protection. Available through AX Control, this relay is part of the legacy 745-W2-P5-G5-HI-A-R-E series, offering reliable management for transformers with two or three windings. As an advanced protective solution, it helps safeguard power transformers of various sizes. Since this series is no longer produced by the OEM, sourcing from trusted suppliers is essential.

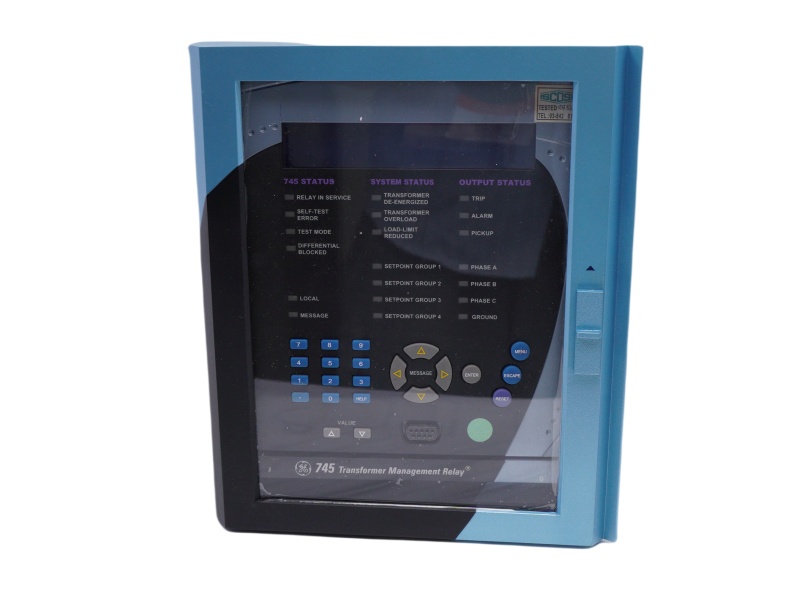

Built with a robust SR-series structure, the GE Multilin SR745-W2-P5-G5-HI-A-R-E features a draw-out relay and companion case, allowing standalone installation or integration with other SR-series devices. General Electric 745-W2-P5-G5-HI-A-R-E supports two windings per phase, rated at 5A per winding, with configurations for ½ and ⅔ windings. It operates within a control power range of 90-300 VDC and 70-265 VAC at 48-62 Hz. The system includes restricted ground fault detection, analog inputs/outputs, and an enhanced front panel with a large LCD display.
Meeting IEEE, ANSI, and NEMA standards, the 745-W2-P5-G5-HI-A-R-E GE Relay Datasheet ensures compliance with industrial regulations. Users should verify local codes before installation. Wiring diagrams and detailed specifications can be found in original GE documentation. The front panel includes a 40-character LCD, LED indicators, an interface port for computer connection, control keys, and a keypad for on-site management.
